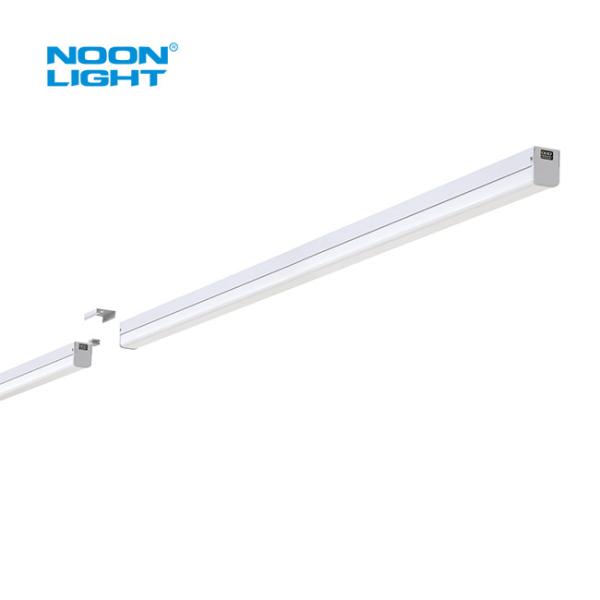

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable
8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable
Specifications
Brand Name :
Noonlight
Model Number :
N-LS2.5-8FT
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :
DLC5.1 Premium LED Linear strip light
Input Voltage(V) :
100-347VAC / 100-277VAC (Optional)
Luminous :
Max 5200lm
Efficiency :
Super high LPW, 130LM/W@4000K
Light Source :
SMD2835
Lens :
clear/frosted
Operating Temp :
-25°C- +40°C Ambient
Warranty(Year) :
5 years warrantly
Description

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

8FT LED Linear Strips Light Description

  • 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.
  • Available with 4ft and 8ft length. Available with standard and linkable version
  • Optional Occupancy Sensor & Built-in Emergency Battery Backup

Features

  • Max Continous Qty: 4ft for 20pcs, 8ft for 10pcs
  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • Various Lens Option: Clear, Frosted,
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in Emergency Driver Option.
  • Easy installation
  • One sensor can control multiple lights

Certificate

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

8FT LED Linear Strips Light Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

N-LS2.5-8FT-80W

YES

100-277VAC

or

100-347VAC

80W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

10500LM

130LM/W

 120°

N-LS2.5-8FT-70W

YES

100-277VAC

or

100-347VAC

30W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

9100LM

130LM/W

 120°

N-LS2.5-8FT-60W

YES

100-277VAC

or

100-347VAC

24W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

7800LM

130LM/W

120°

N-LS2.5-8FT-45W

 YES

100-277VAC

or

100-347VAC

15W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

5850LM

130LM/W

 120°

Accessories

Bi-level 12VDC 0-10V Motion Sensor

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twiligh Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

4W or 8W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Advantages

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

Power Adjustable Slide Switch Position
Size/Positon W1 W2 W3 W4
4ft 40W 30W 24W 15W
8ft 80W 70W 60W 45W


8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

HOW TO CHANGE THE CCT IN THIS FIXTURE

CCT Tunable Slide Switch Position
Position/Group CCT
CCT1 3000K
CCT2 3500K
CCT3 4000K
CCT4 5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable

8FT LED Linear Strips Light Applications

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting

8FT 80W Linear Suspended Light Fixture CCT 30/35/40/50K Tunable
