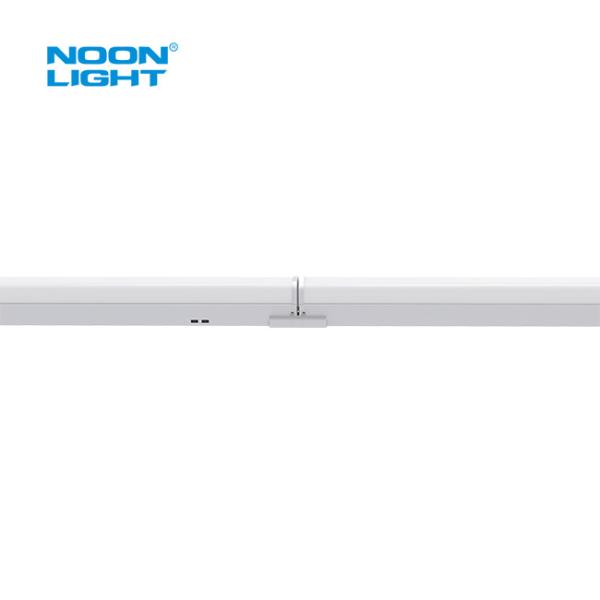

Power Tunable LED Linear Strip Lights 4 Wattages and 4CCT

Description

• 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.
• Integrated with new trend of field-adjustable functions provide our customers greater flexiblity on power and color temperatures.

4FT LED Linear Strips Light Features

• UP TO 135LM/W
• Max Continous Qty: 4ft for 20pcs, 8ft for 10pcs
• Minimize stock, 1 SKU can cover max. of 16 models.
• An auxiliary to connect low voltage sensor/BLE or other IOT network.
• Various Lens Option: Clear, Frosted,
• DLC5.1 Premium LED Linear strip light Built-in PIR Sensor and Motion Sensor Options.
• Built-in Emergency Driver Option.
• Available with surface mounted, suspended mounted with daisy chain
• One sensor can control multiple lights

Certificate

Specification

4FT LED Linear Strips Light Installation

Suitable for surface mounted, suspended mounted.

Accessories

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can identify daylight and artificial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mounting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissioning: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twiligh Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 15 or 30W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

• OEM/ODM Serivce
• Photometric/IES file
• PCB Design/Driver Design
• Heat Management/Optical Design
• Industry Design
• Market Support
• 3D Printing
• Multiple Listing/Private Label.

Applications

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
