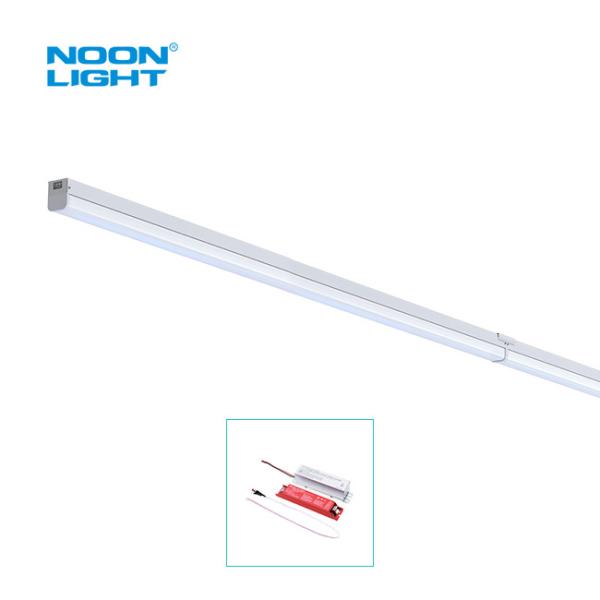

30W Dimmable LED Linear Strip Lights 9100LM fro Residential
30W Dimmable LED Linear Strip Lights 9100LM fro Residential
Specifications
Brand Name :
Noonlight
Model Number :
N-LS2.5-8FT
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :
DLC5.1 Premium LED Linear strip light
Input Voltage(V) :
100-347VAC / 100-277VAC (Optional)
Wattage :
4 Step Wattages Adjustable
CCT :
4 CCT Adjustable 3000K 3500K, 4000K, 4500K , 5000K ,5700K
Standard Dimming :
0-10V dimmable, flicker free,with 12V auxiliary output
Light Source :
SMD2835
Operating Temp :
-25°C- +40°C Ambient
Warranty(Year) :
5 years warrantly
Description

30W Dimmable LED Linear Strip Lights 9100LM fro Residential

Description

  • 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.
  • Optional Occupancy Sensor & Built-in Emergency Battery Backup

8FT LED Linear Strips Light Features

  • Max Continous Qty: 4ft for 20pcs, 8ft for 10pcs
  • CLASS P Programmable LED Driver, 4 Step Power Adjustable,
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • Built-in PIR Sensor and Motion Sensor Options.
  • Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.
  • Available with surface mounted, suspended mounted with daisy chain
  • One sensor can control multiple lights

Certificate

30W Dimmable LED Linear Strip Lights 9100LM fro Residential

8FT LED Linear Strips Light Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

N-LS2.5-8FT-80W

YES

100-277VAC

or

100-347VAC

80W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

10500LM

130LM/W

 120°

N-LS2.5-8FT-70W

YES

100-277VAC

or

100-347VAC

30W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

9100LM

130LM/W

 120°

N-LS2.5-8FT-60W

YES

100-277VAC

or

100-347VAC

24W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

7800LM

130LM/W

120°

N-LS2.5-8FT-45W

 YES

100-277VAC

or

100-347VAC

15W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

5850LM

130LM/W

 120°

Accessories

Bi-level 12VDC 0-10V Motion Sensor

30W Dimmable LED Linear Strip Lights 9100LM fro Residential

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twiligh Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

30W Dimmable LED Linear Strip Lights 9100LM fro Residential

4W or 8W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

8FT LED Linear Strips Light Applications

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
