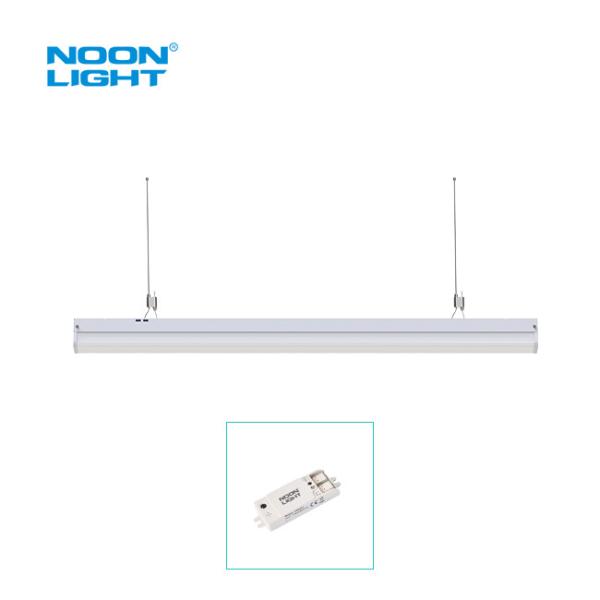

4FT 24W Linear Pendant Lighting LED Linear Suspension Light

Description

• 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.
• Integrated with new trend of field-adjustable functions provide our customers greater flexiblity on power and color temperatures.

Features

• UP TO 135LM/W
• CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
• An auxiliary to connect low voltage sensor/BLE or other IOT network.
• 5-100% 0-10V dimmable, flicker free, Dim to off.
• Built-in Emergency Driver Option.
• L70>50,000hrs, 5 year warranty.

Certificate

Specification

Accessories

Bi-level 12VDC 0-10V Motion Sensor

Specification

• Dual PD Technology: can identify daylight and artificial light.
• Input Voltage: 12VDC
• Output: 0-10V, 25mA sinking current
• Mounting Height: Max. 40ft.
• Detection Range: 30ft @ 40ft height in diameter
• IR remote commissioning: easy setting via remote controller
• Photocell available

Default Setting/Setting

• Sensitivity: 100%/25%, 50%, 75%, 100%
• Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
• Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
• Twiligh Time: never turn off/1min, 30min, 1h, never tun off
• Twilight Level: 20%/off, 10%, 20%, 50%

4W or 8W UL Listed Emergency Backup

• Listed for field Instllation-UL924 & CSA C22.2 NO. 141
• Input: 120-277VAC/347VAC 50/60Hz
• Output: 25-50VDC, 15 or 30W
• Illumination Time: 90min
• Battery Type:Li-ion/Ni-MH
• Battery Recharge Time: 24Hrs
• Surge Protection: 3KV
• Protection:
• Input over-current Protection (Fuse)
• Output over-voltage Protection
• Output Low Voltage Protection
• Output Short Circuit Protection
• Working Temp.: 10℃ to 50℃

​

Advantages

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

HOW TO CHANGE THE CCT IN THIS FIXTURE

4FT LED Linear Strips Light Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

• OEM/ODM Serivce
• Photometric/IES file
• PCB Design/Driver Design
• Heat Management/Optical Design
• Industry Design
• Market Support
• 3D Printing
• Multiple Listing/Private Label.

4FT LED Linear Strips Light Applications

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
