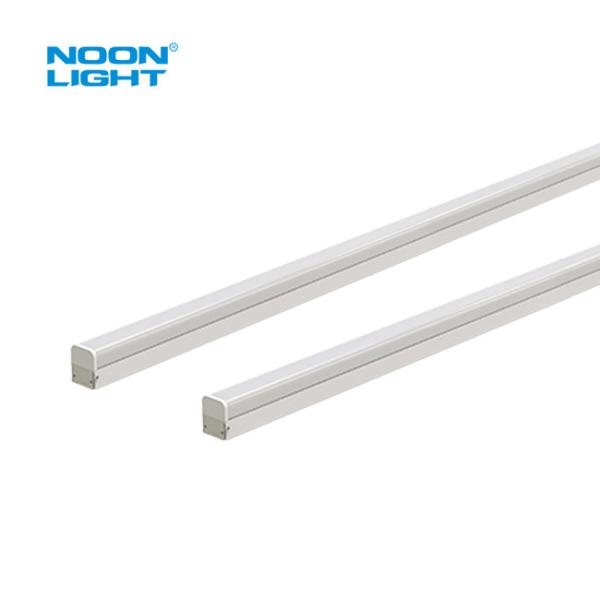

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm
Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm
Specifications
Brand Name :
Noonlight
Model Number :
N-LS2.5
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :
8FT 60W 130lm/W 7800lm Linear Strip, 4 CCT /Wattage in 1, Vandal Proof Surface Mounted
Input Voltage(V) :
100-347VAC / 100-277VAC (Optional)
Length :
4FT/8FT
Wattage :
4 Step Wattages Adjustable
Efficiency :
Super high LPW, 130LM/W@4000K
Standard Dimming :
0-10V dimmable, flicker free,with 12V auxiliary output
IP Rating :
IP20
Operating Temp :
-25°C- +40°C Ambient
Description

8FT 60W 130lm/W 7800lm Linear Strip, 4 CCT /Wattage in 1, Vandal Proof Surface Mounted

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

  • CLASS P Programmable LED Driver, 4 Step Power Adjustable,
  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • Built-in PIR Sensor and Motion Sensor Options.

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

N-LS2.5-8FT-80W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

80W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

10500LM

130

LM/W

 120°

N-LS2.5-8FT-70W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

70W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

9100

LM

130

LM/W

 120°

N-LS2.5-8FT-60W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

60W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

7800LM

130LM/W

120°

N-LS2.5-8FT-45W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

 YES

100-277VAC

or

100-347VAC

45W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

5850LM

130LM/W

 120°

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Bi-level 12VDC 0-10V Motion Sensor

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC
  • Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft.
  • Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twiligh Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

4W or 8W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Power Adjustable Slide Switch Position
Size/Positon W1 W2 W3 W4
4ft 40W 30W 24W 15W
8ft 80W 70W 60W 45W


Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

HOW TO CHANGE THE CCT IN THIS FIXTURE

CCT Tunable Slide Switch Position
Position/Group CCT
CCT1 3000K
CCT2 3500K
CCT3 4000K
CCT4 5000K

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Surface Mounted LED Linear Ceiling Light 8FT 60W 130lm/W 7800lm

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
