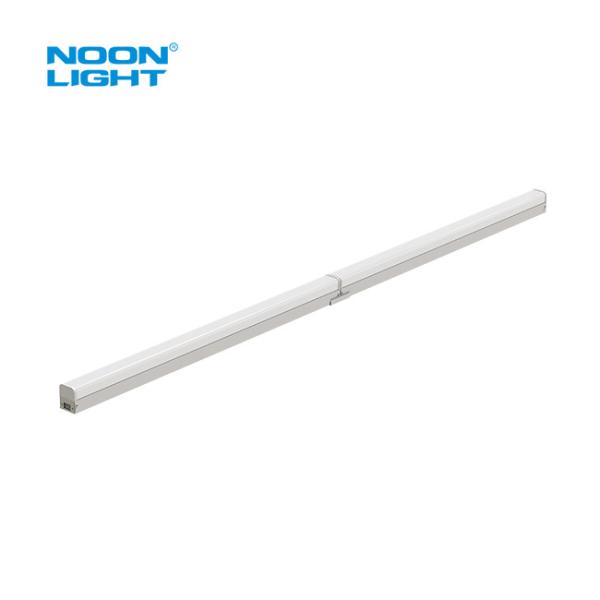

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted
30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted
Specifications
Brand Name :
Noonlight
Model Number :
N-LS2.5
Certification :
DLC 5.0 / ETL / RoHS
Place of Origin :
China
MOQ :
300
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Product Name :
4FT 2.5" 15W 130lm/W Surface Mounted 15-Watt LED Linear Light, With 30K/35K/40K/50K Tunable
Wattage :
4 Step Wattages Adjustable
CCT :
4 CCT Adjustable 3000K 3500K, 4000K, 4500K , 5000K ,5700K
Efficiency :
Super high LPW, 130LM/W@4000K
Light Source :
SMD2835
IP Rating :
IP20
Warranty(Year) :
5 years warrantly
Description

4FT 2.5" 15W 130lm/W Surface Mounted 15-Watt LED Linear Light, With 30K/35K/40K/50K Tunable

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

  • 2.5” Linear Strip Light fixture is a compact diffused light for commercial, retail and residential purpose.
  • Optional Occupancy Sensor & Built-in Emergency Battery Backup

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

  • Max Continous Qty: 4ft for 20pcs, 8ft for 10pcs
  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in PIR Sensor and Motion Sensor Options.
  • L70>50,000hrs, 5 year warranty.
  • Easy installation

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

N-LS2.5-4FT-40W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

40W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

5200LM

130LM/W

 120°

N-LS2.5-4FT-30W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

30W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

3900LM

130LM/W

 120°

N-LS2.5-4FT-24W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

YES

100-277VAC

or

100-347VAC

24W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

3250LM

130LM/W

120°

N-LS2.5-4FT-15W-1XX-[Blank, S1, S2]-D-FL-CT-FA-Z

 YES

100-277VAC

or

100-347VAC

15W

Frosted/

Clear

Ra>80,

30K

35K

40K

50K

1950LM

130LM/W

 120°

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

Suitable for surface mounted, suspended mounted.

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

HOW TO CHANGE THE WATTAGE IN THIS FIXTURE

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

Power Adjustable Slide Switch Position
Size/Positon W1 W2 W3 W4
4ft 40W 30W 24W 15W
8ft 80W 70W 60W 45W


30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

HOW TO CHANGE THE CCT IN THIS FIXTURE

CCT Tunable Slide Switch Position
Position/Group CCT
CCT1 3000K
CCT2 3500K
CCT3 4000K
CCT4 5000K

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted

Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting

30K 35K 40K 50K Tunable 15 Watt Linear Wall Light Fixture Surface Mounted
