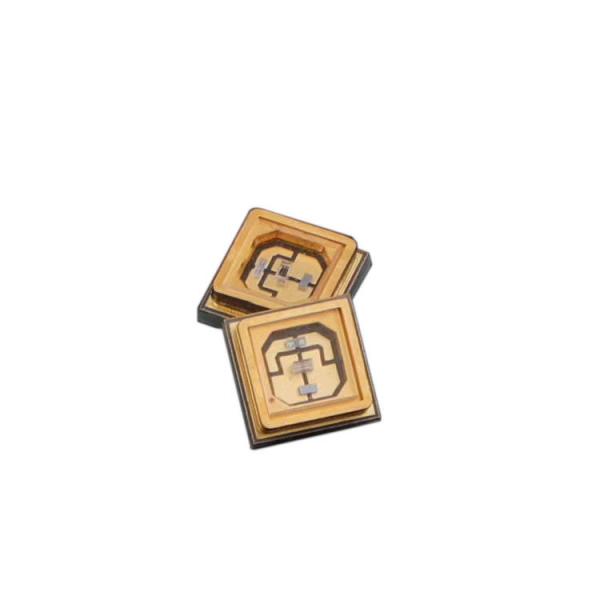

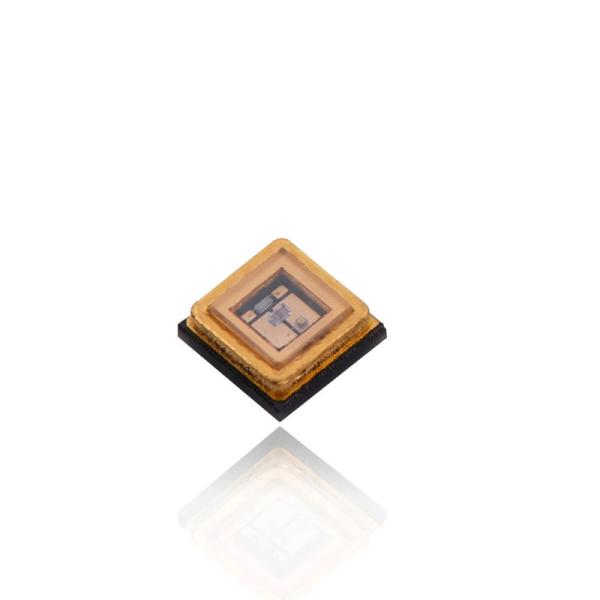

3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
3mW 5mW High Radiant Flux SMD UVC LED Chip 265 - 285nm Deep UV Color
Specifications
Brand Name :
HOYOL
Model Number :
HY-UVC3535
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation Price
Payment Terms :
T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Packed in carton
Product name :
3mW 5mW High Radiant Flux SMD UVC LED Chip
Size :
3.5*3.5mm
Peak Wavelength :
265-285nm
Color :
Deep UV
Input Current :
40-50mA
Optical Power :
3-5mW
Description

3mW 5mW High Radiant Flux SMD UVC LED Chip

Specification of 3mW 5mW High Radiant Flux SMD UVC LED Chip

Models HY-SMD3535UVC-P0.5D(265-285nm)
Electronic power 0.5W
Peak wavelength 265-285nm
Radiant power 3-5mW
Working current 40-50mA
Working voltage 6.0-8.0V
Circuit 1S1P
Packing technology New Generation Flip chip Sanan/EpiLED/SZ
LED Diode size 3.5*3.5mm
LENS Quartz Glass
View angle 120DEG
Substrate design ALN coppering
Thermal resistance 0.1-0.2C/W
Life span(LM50) 6,000 hrs
