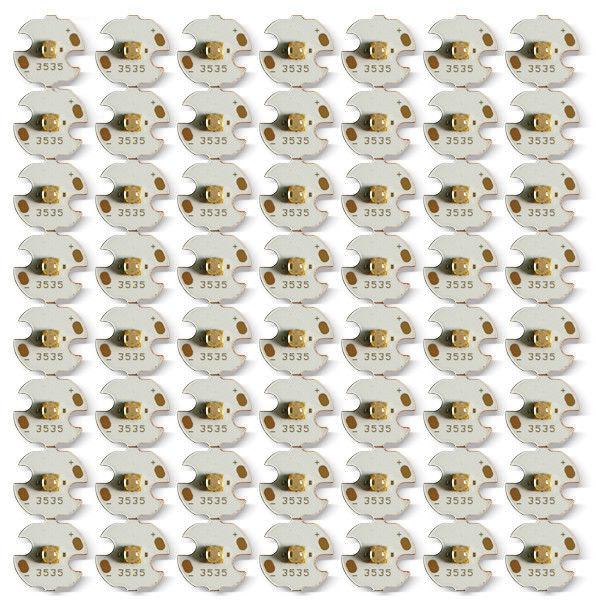

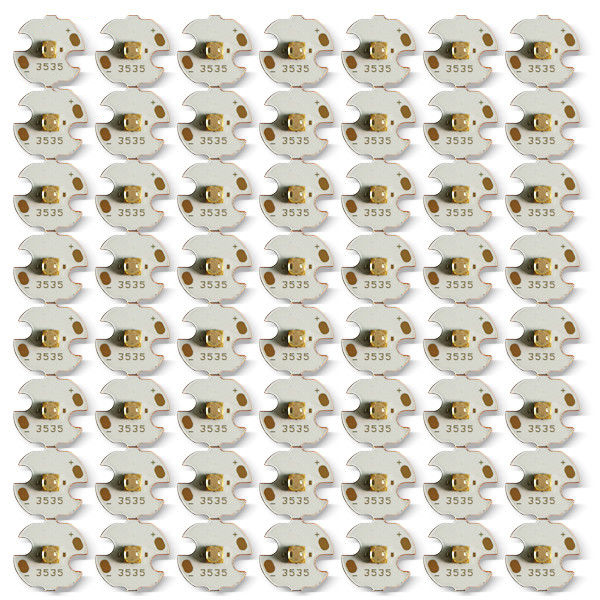

3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm
Specifications
Brand Name :
HOYOL
Model Number :
HY-SMD-UV3535
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100,000PCS per month
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Packed in carton
Product :
3W Copper Plate LED UV Chip 16mm For Curing Light
Size :
16mm*16mm
Power :
3W
Voltage :
3.4-3.8V
Current :
500-700mA
Wavelength :
365nm, 385nm, 395nm, 405nm
Description

3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm

Description of UV LED Chip

The UV LED Chip lamp beads can be water-cooled or air-cooled.

UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screen.
Item HY-SMD-UV3535
Power 3W
Emitting color UV
Diode type 3535 smd
Lens Material of Diode quartz
View Angle of the Lens 60, 120 degree
size 16mm*16mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 3.4-3.8V
Curent 500-700MA
Chip Material LG, Seoul, Epileds
Welding temperature ≤220 degrees
Lifespan (hours) 20000-30000
Warranty 1 years
Application Apply in various UV printing industries, painting, UV lnk,and UV glue.
Place of Origin Shenzhen, Guangdong, China

3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm

3W Copper Plate LED UV Chip 16mm For Curing Light Module 365nm 395nm

Feature of UV LED Chips
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device

Matters needing attention

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
