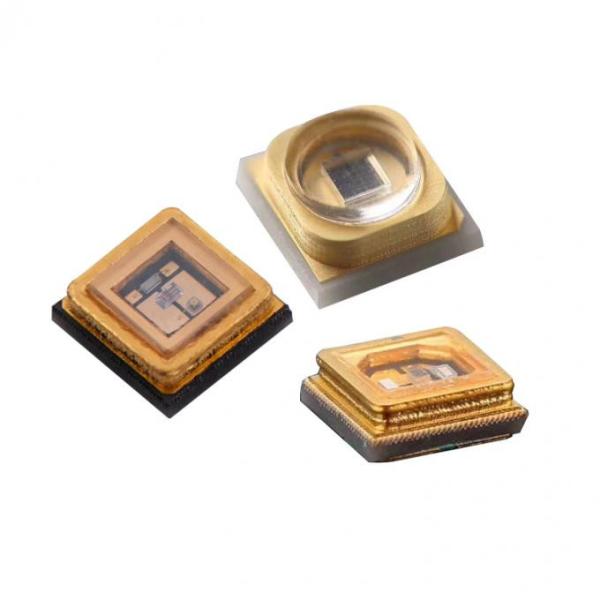

254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
Specifications
Brand Name :
HOYOL
Model Number :
HY-UVC3535
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500,000PCS per month
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Packed in carton
Name :
254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment
Size :
3.5x3.5mm
Narrow Wavelength :
250-260NM/260-270NM/270-280NM
Input Voltage :
5-7V
Input Current :
500-700mA
Substrates :
ALN Coppering
Description

254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment

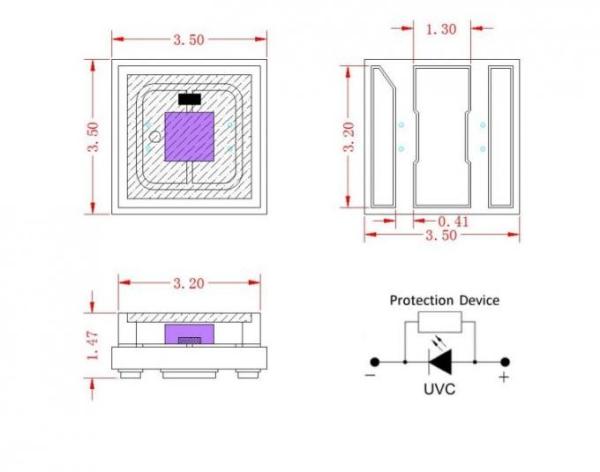

Specification of 254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment

models Power Peak Wavelength Input Current Radiant Power Whole Size
HY-SMD3535UVC-P3-255 3W 250-260NM 500-700mA 80-120mW 3.5*3.5mm
HY-SMD3535UVC-P3-265 3W 260-270NM 500-700mA 80-120mW 3.5*3.5mm
HY-SMD3535UVC-P3-275 3W 270-280NM 500-700mA 80-120mW 3.5*3.5mm

254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment

254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment

254nm 265nm 275nm UVC LED Diode 3535 Chips For Medical Equipment

Feature of UV LED Chips
• High power and efficiency, high reliability
• Long operation lifetime, low light failure
• Environmental protection, energy saving
• Zener diode protection device

Matters needing attention

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
