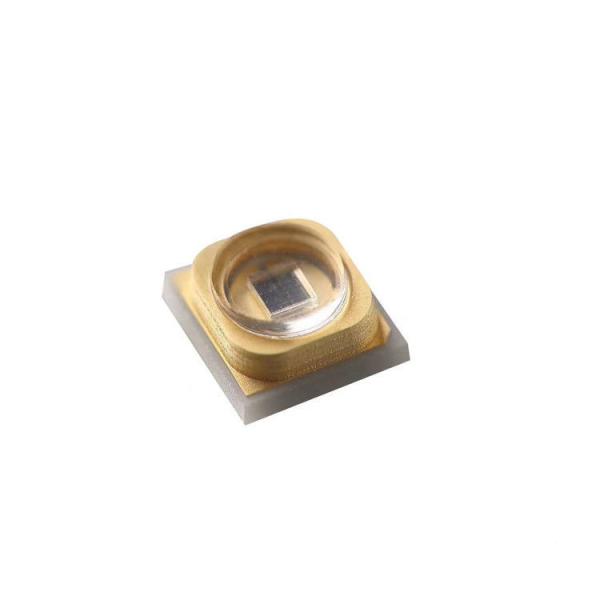

80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate
80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate
80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate
80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate
Specifications
Brand Name :
HOYOL
Model Number :
HY-SMD3535UVC
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per day
Delivery Time :
5-7 working days after received your payment
Packaging Details :
Packed in carton
Product :
80-120mw SMD UVC 3535Seiries LED Chip 255nm 285nm
Size :
3.5*3.5mm
Peak Wavelength :
250-260nm/260-270nm/270-280nm
Optical Power :
80-120mW
Input Current :
350-500mA
LENS :
Quartz Glass
Circuit :
1S1P
Description

80-120mw SMD UVC 3535Seiries LED Chip 255nm 285nm

Specification of 80-120mw SMD UVC 3535Seiries LED Chip 255nm 285nm

models HY-SMD3535UVC-P3(250-260nm) HY-SMD3535UVC-P3(260-270nm)

HY-SMD3535UVC-

P3(270-280nm)
Electronic power 3.0W 3.0W 3.0W
Peak wavelength 250-260nm 260-270nm 270-280nm
Radiant power 80-120mW 80-120mW 80-120mW
Working current 350-500mA 350-500mA 350-500mA
Working voltage 6.0-8.0V 6.0-8.0V 6.0-8.0V
Circuit 1 chip 1 chip 1 chip
Packing technology New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip LG/Seoul semi/Dowa/PW New Generation Flip chip SLG/Seoul semi/Dowa/PW
LED Diode size 3.5*3.5mm 3.5*3.5mm 3.5*3.5mm
LENS Quartz Glass Quartz Glass Quartz Glass
View angle 120DEG 120DEG 120DEG
Substrate design ALN coppering ALN coppering ALN coppering
Thermal resistance 0.1-0.2C/W 0.1-0.2C/W 0.1-0.2C/W
Life span(LM50) 10,000 hrs 10,000 hrs 10,000 hrs













  • Long life span,LM70>=3000 hrs and LM50>=6,000 hrs.
  • Certifications
  • High radiant flux
  • Low thermal resistance
  • Ingorganic encapsulation and Quartz Glass package

80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate

80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate

80 - 120mw SMD UVC LED Chip 3535 Seiries 255nm 285nm ALN Coppering Substrate

FAQ:

1,Prices conditions

Price can be FOB, CIF ,EXW, or With taxes


2,What will be the delivery time and what will be the mode of payment?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it needs to 3-5 days to customize.50K units is available for most of our models in normal color and sizes

The payment can be T/T transaction,Letter of credit,Paypal,Western Union


3,Shipment will be over sea or by air?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn’t too heavy for the transportation


4,Could you please send me the sample for the same.So that i could see and analyze its quality?

Yes.We can send samples first,samples need to be charged if the value is higher


5,Will there be any contract for this business or trade?

Yes,there is a normal contract before the order is placed

6,How will invoice be generated?

Invoice can be generated with formal contract with company seals
