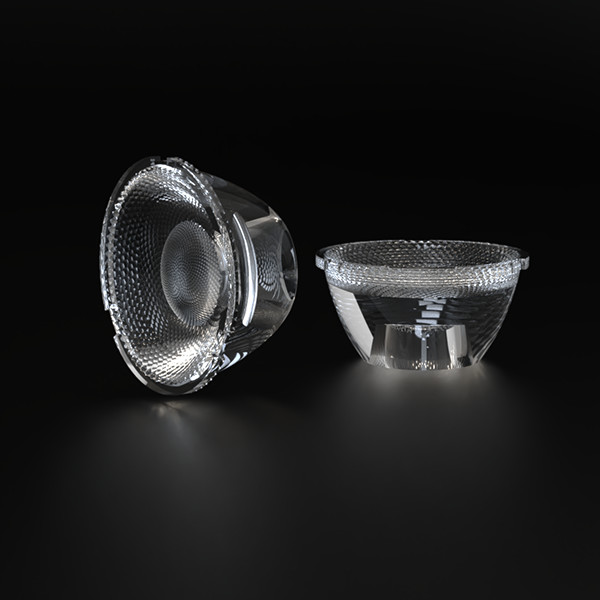

Diameter 45mm COB LED Lens with 50 Degree Anti Glare and 88% Efficiency for Soft Light Spot
Diameter 45mm COB LED Lens with 50 Degree Anti Glare and 88% Efficiency for Soft Light Spot
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-50COBL9-C3
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Diameter 45mm COB LED Lens 50 Degree Anti Glare 88% Efficiency
Product Overview

Diameter 45mm upgrade hotel cut-off lens made from PC material, designed for soft light spots with VA 50° anti-glare capability.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PC (Polycarbonate)

Lens Features
  • Clear visual viewing angle at different angles
  • Suitable for deep anti-glare, high requirement of light shape
  • Highly uniform color consistency and light intensity
  • Natural faded light, full integration of light into natural environment
  • Extremely soft light spot
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-45@22-15COBL9-C3 ¢6mm COB 15° φ44.8×19.05 88% PC
WT-45@22-24COBL9-C3 ¢9mm COB 24° φ44.8×19.05 88% PC
WT-45@22-36COBL9-C3 ¢9mm COB 36° φ44.8×19.05 88% PC
WT-45@22-50COBL9-C3 ¢9mm COB 50° φ44.8×19.05 88% PC
WT-45@22-60COBL9-C3 ¢9mm COB 60° φ44.8×19.05 88% PC
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
