PC Material 24 Degree Anti-Glare LED Optic Lens for Wall Washer and COB LED Applications
PC Material 24 Degree Anti-Glare LED Optic Lens for Wall Washer and COB LED Applications
PC Material 24 Degree Anti-Glare LED Optic Lens for Wall Washer and COB LED Applications
PC Material 24 Degree Anti-Glare LED Optic Lens for Wall Washer and COB LED Applications
Specifications
Brand Name :
Wisertop
Model Number :
WT-50@24-24COBL9-C3
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description
Upgrade Hotel Cut Off Led Optic Lens PC Material VA 24 Degree For Wall Washer
Product Overview

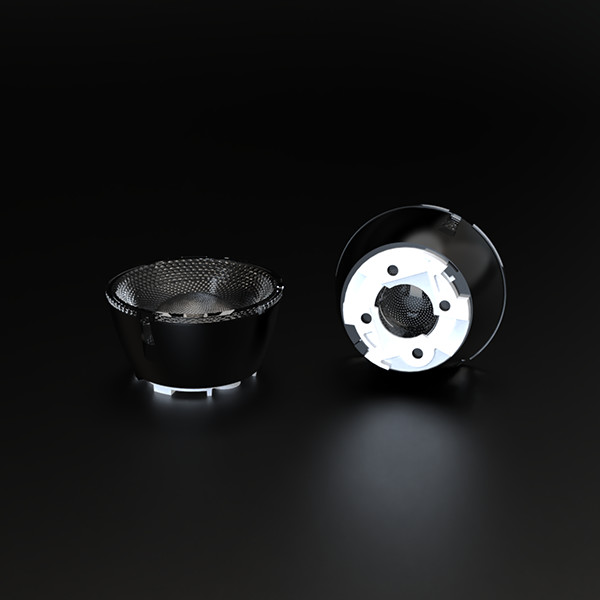

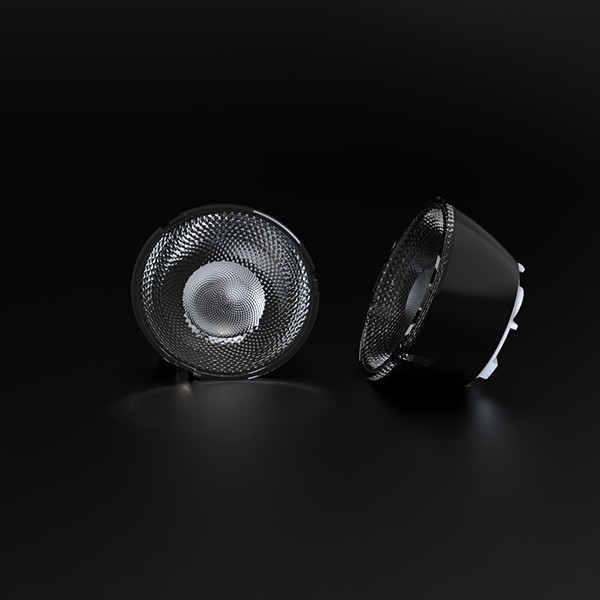

Diameter 50mm upgrade hotel cut-off Lens PC material VA 24° anti-glare for wall washer

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Specifications

Material: PC (Polycarbonate)

Lens Features
  • Clear visual viewing angle at different angles
  • Suitable for deep anti-glare applications with high light shape requirements
  • Highly uniform color consistency and light intensity
  • Natural faded light with full integration into natural environments
  • Extremely soft light spot distribution

Compatible COB Light Sources: Cree, Lumileds, Bridgelux, Citizen, and others

Technical Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-50@24-15COBL9-C3 ¢9mm COB 15° φ49.8×23.85 88% PC
WT-50@24-24COBL9-C3 ¢9mm COB 24° - 88% PC
WT-50@24-36COBL9-C3 ¢9mm COB 36° - 88% PC
WT-50@24-60COBL9-C3 ¢9mm COB 50° - 88% PC
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
What is the lead time?
Samples require approximately 3-5 days for preparation. Mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses.
