Wall Washer LED Lens with 15 Degree Narrow Viewing Angle PMMA Material and 93% Efficiency for COB LEDs
Wall Washer LED Lens with 15 Degree Narrow Viewing Angle PMMA Material and 93% Efficiency for COB LEDs
Specifications
Brand Name :
Wisertop
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Model Number :
WT-35@17-15COBL6-C1
Certification :
Rohs
Light source :
Brand COB leds as Cree Bridgelux Lumileds Osram...
Material :
PMMA
Working temperature :
-40°C~+70°C
Certificates :
Rohs
Lens type :
TIR Les
Efficiency :
93%
Description
Wall Washer LED Lamp Lens COB Lenses Narrow Viewing Angle 15 Degree
Product Overview

Soft light spot Wall Washer lamp COB lens made from PMMA material with narrow viewing angle of 15 degrees.

Applications
  • Spot light
  • Down light
  • Tracking light
  • Recessed lamp
  • Ceiling light
Lens Features
  • Low glare
  • Strong visual impact with obvious cut-off line clearly separating lighting and non-lighting areas
  • Excellent color mixing performance
  • Super bright and highly uniform anti-glare light
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Technical Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-35@17-15COBL6-C1 ¢4mm COB 15° φ34.8×17.55 93% PMMA
WT-35@17-15COBL6-C1 (transparent) ¢6mm COB 15° - 93% PMMA
WT-35@17-24ACOBL6-C1 ¢6mm COB 24° - 93% PMMA
WT-35@17-24DCOBL6-C1 ¢6mm COB 24° - 93% PMMA
WT-35@17-36COBL6-C1 ¢6mm COB 36° - 93% PMMA
WT-35@17-60COBL6-C1 ¢6mm COB 60° - 93% PMMA

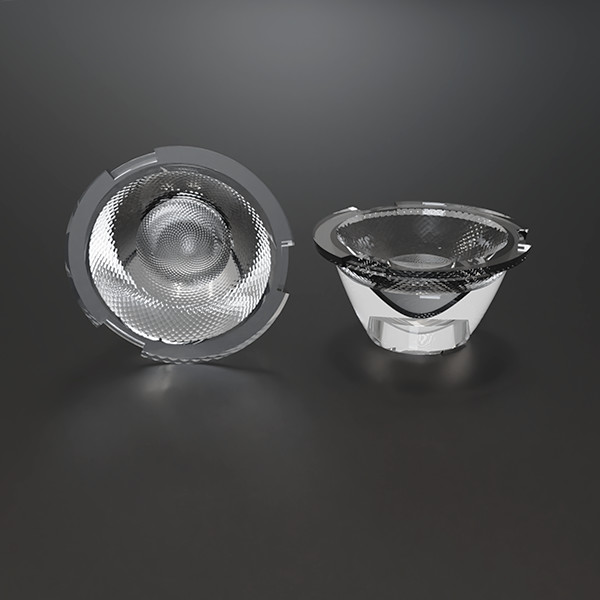

Product Images
Wall Washer LED Lens with 15 Degree Narrow Viewing Angle PMMA Material and 93% Efficiency for COB LEDs Wall Washer LED Lens with 15 Degree Narrow Viewing Angle PMMA Material and 93% Efficiency for COB LEDs
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For faster response, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
