50mm Diameter COB LED Lens with 15 Degree Anti Glare and RoHS Certified for Soft Light Spot
50mm Diameter COB LED Lens with 15 Degree Anti Glare and RoHS Certified for Soft Light Spot
50mm Diameter COB LED Lens with 15 Degree Anti Glare and RoHS Certified for Soft Light Spot
50mm Diameter COB LED Lens with 15 Degree Anti Glare and RoHS Certified for Soft Light Spot
Specifications
Brand Name :
Wisertop
Model Number :
WT-50@24-15COBL9-C3
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Material :
PC
Lens type :
TIR Lens
Efficiency :
88%
Certificates :
Rohs
Working temperature :
-40°C~+90°C
Light source :
Brand COB leds as Cree Osram Lumileds Bridgelux...
Description

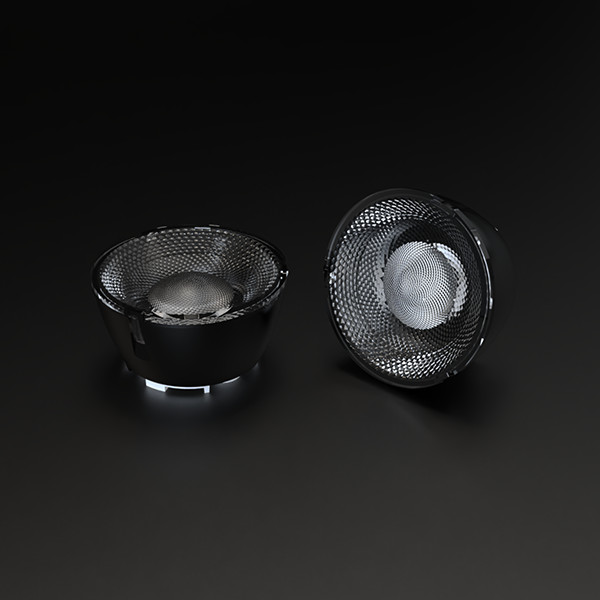

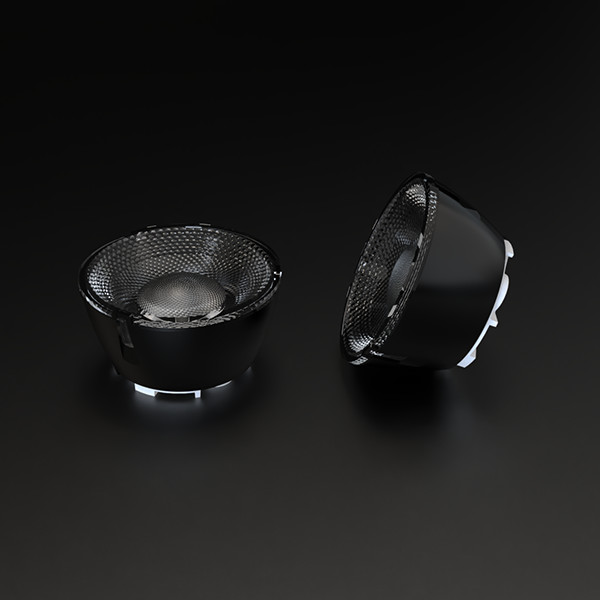

Diameter 50mm COB LED Lens VA 15 Degree Anti Glare With Rohs Certified
Product Overview

Diameter 50mm upgrade hotel cut-off Lens PC material for soft light spot VA 15° anti-glare. This high-performance lens is designed for superior lighting applications with excellent glare control and uniform light distribution.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Specifications

Material: PC (Polycarbonate)

Key Features
  • Clear visual viewing angle at different angles
  • Suitable for deep anti-glare, high requirement of light shape
  • Highly uniform color consistency and light intensity
  • Natural faded light, full integration of light into natural environment
  • Extremely soft light spot

Compatible COB Light Sources: Cree, Lumileds, Bridgelux, Citizen, and more

Technical Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-50@24-15COBL9-C3 ¢9mm COB 15° φ49.8×23.85 88% PC
WT-50@24-24COBL9-C3 ¢9mm COB 24° - 88% PC
WT-50@24-36COBL9-C3 ¢9mm COB 36° - 88% PC
WT-50@24-60COBL9-C3 ¢9mm COB 50° - 88% PC
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
