Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting
Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting
Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting
Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting
Specifications
Brand Name :
Wisertop
Model Number :
WT-32@16-15COBL4-C1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Light source :
Brand COB leds as Cree Bridgelux Lumileds Osram...
Material :
PMMA
Working temperature :
-40°C~+70°C
Certificates :
Rohs
Lens type :
TIR Les
Efficiency :
93%
Description

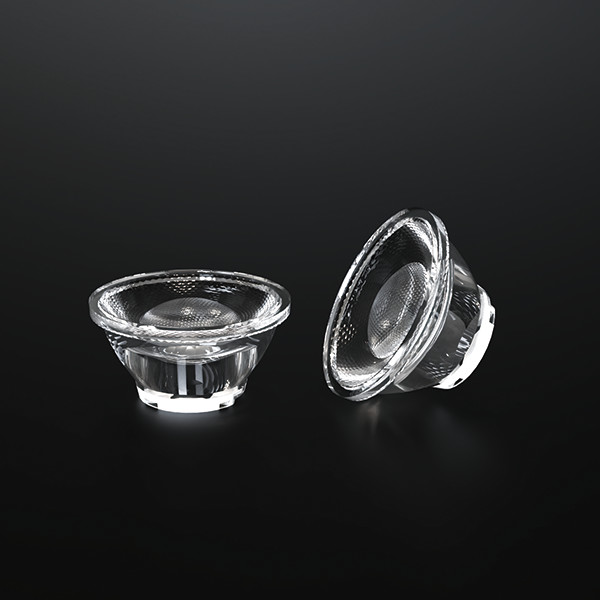

Soft Light Spot PMMA Plastic LED Lens Narrow Viewing Angle 15 Degree
Product Overview

Soft light spot COB lens PMMA material with narrow viewing angle of 15 degrees, designed for downlights with 32mm diameter.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Features
  • Low glare
  • Strong visual impact with obvious cut-off line clearly separating lighting and non-lighting areas
  • Excellent color mixing performance
  • Super bright and highly uniform anti-glare light
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

Technical Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-32@16-15COBL4-C1 ¢4mm COB 15° φ31.8×16 0.93 PMMA
WT-32@16-24COBL4-C1 ¢4mm COB 24° φ31.8×16 0.93 PMMA
WT-32@16-36COBL4-C1 ¢4mm COB 36° φ31.8×16 0.93 PMMA
Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting Soft Light Spot PMMA LED Lens with 15 Degree Narrow Viewing Angle for Downlight and Spot Lighting
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses.
