45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight
45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight
45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight
45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight
Specifications
Brand Name :
Wisertop
Model Number :
WT-45@22-60COBL9-C1
Certification :
Rohs
Place of Origin :
China
MOQ :
1pc
Price :
Shenzhen Wisertop Technology Co.,Ltd
Supply Ability :
100,000 day
Delivery Time :
1-2 weeks
Packaging Details :
Master carton
Light source :
Brand COB leds as Cree Bridgelux Lumileds Osram...
Material :
PMMA
Working temperature :
-40°C~+70°C
Certificates :
Rohs
Lens type :
TIR Les
Efficiency :
93%
Description
Diameter 45mm PMMA 60 Degree LED Lens For Downlight - 93% Efficiency
Product Overview

COB lens with 45mm diameter, made from PMMA material, featuring a 60-degree viewing angle specifically designed for downlight applications.

Applications
  • Spot lights
  • Down lights
  • Tracking lights
  • Recessed lamps
  • Ceiling lights
Lens Features
  • Low glare design
  • Strong visual impact with clear cut-off line between lighting and non-lighting areas
  • Excellent color mixing performance
  • Super bright and highly uniform anti-glare light output
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and other major COB LED manufacturers.

Technical Specifications
Part No. Light-emitting Surface FWHM Size (mm) Typ. Eff. Material
WT-45@22-15COBL9-C1 ¢6mm COB 15° φ44.8×22.5 0.93 PMMA
WT-45@22-24DCOBL9-C1 ¢9mm COB 24° 0.93 PMMA
WT-45@22-36COBL9-C1 ¢9mm COB 36° 0.93 PMMA
WT-45@22-60COBL9-C1 ¢9mm COB 50° 0.93 PMMA

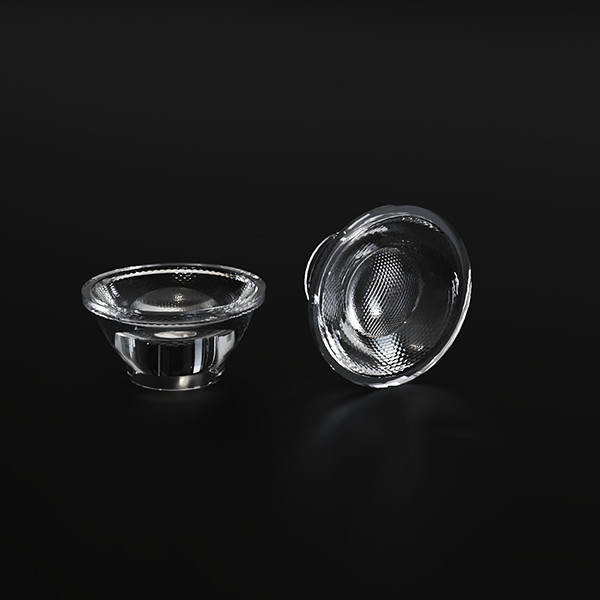

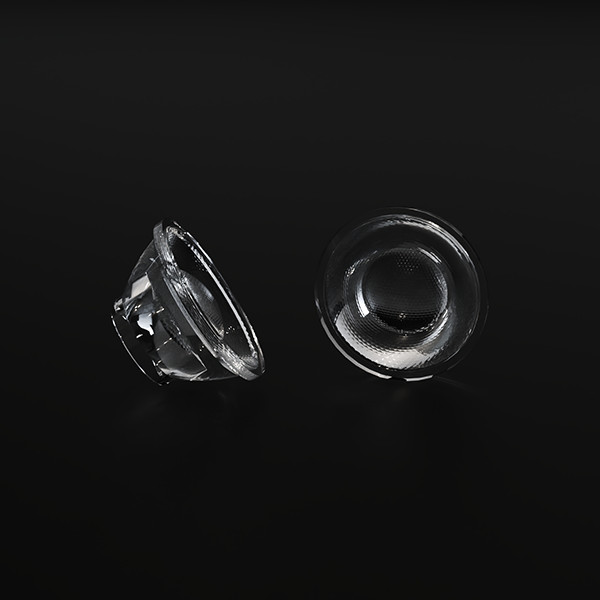

Product Images
45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight 45mm PMMA LED Lens with 93% Efficiency and 60 Degree Viewing Angle for Downlight
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us directly.
What is the lead time?
Samples require approximately 3-5 days for preparation. Mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor LED lenses for various lighting applications.
