50mm DMX512 WS2811 3D Pixel Ball Light String for Christmas Holiday Lighting

Key Features:

〉Customizable Size & Shell: 50mm / 35mm diameter; milky white (soft glow) or transparent shells
〉Durable Construction: Two-part hollow PC shell + waterproof screw cap assembly
〉High-Brightness LEDs: 6 (1.44W) or 12 (2.88W) SMD3535 RGB LEDs per ball; 360° uniform illumination
〉Versatile Control: DMX512 or SPI (such as WS2811) support
〉DC24V Safety Power: Low-voltage operation, safe for extended installations
〉Full Customization: Pixel spacing, string length, and wire and connector colors can be customized in black or milky white
〉Flexible Installation Layout: T-type cable connector for vertical 2D/3D setups; each light string with input/output connectors supports daisy chaining, suitable for LED tunnel and lawn decorative laying
〉IP Rated Waterproof: IP45 for indoor decoration, or potting-encapsulated inner light source available to achieve a full IP65 rating
〉Long Lifespan: UV-resistant materials; stable performance in -20°C to 60°C environments

Technical Parameters:

Product Description:

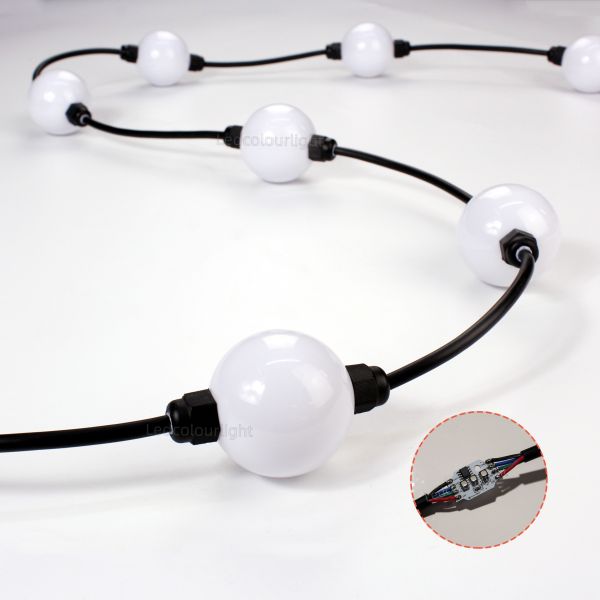

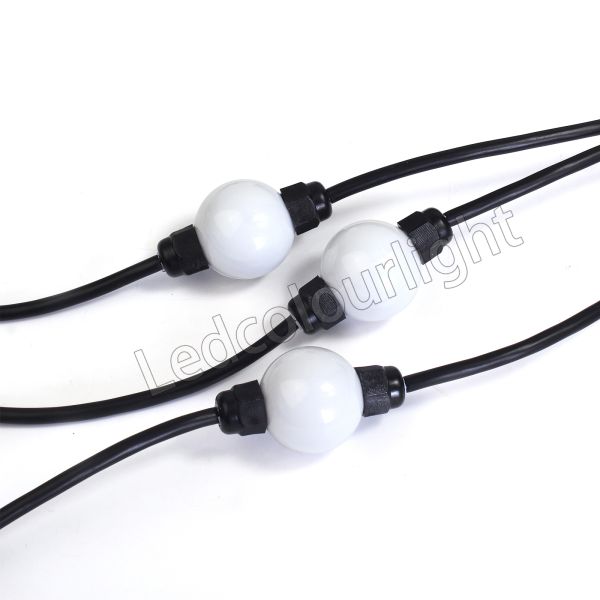

Ledcolourlight 50mm diameter LED ball string lights are professional-grade, fully customizable pixel lighting solutions, designed for both 2D curtain displays and immersive 3D matrix installations. Built with two hollow hemispherical PC shells secured by waterproof screw caps, these lights offer exceptional durability, uniform 360° illumination, and seamless integration with industry-standard control systems.
Available in 50mm or 35mm diameters, with a choice of milky white (diffused, glare-free) or transparent shells for different visual effects. Each ball houses either 6 SMD3535 RGB LEDs (1.44W) or 12 LEDs (2.88W), delivering vibrant, true-to-life color mixing. Powered by DC24V, the strings support both DMX512 and SPI (WS2811-compatible) control protocols, with input/output connectors for easy daisy-chaining. The pixel spacing, string length, and wire/connector colors (black or milky white) are fully customizable to meet project-specific needs.
For enhanced weather protection, the potting-encapsulated option fully seals the inner light source, achieving an IP65 waterproof rating—making these lights fully dustproof and protected against low-pressure water jets, ideal for permanent outdoor installations. Connected via T444 cables for vertical curtain setups, or lay them horizontally for ground-level decorative displays.

48~72 hours of aging test before packing

35mm diameter

Different Designs: milky white wiring, transparent shell options

Connection Diagram:

• DMX512 Control

• Each ball acts as an individual DMX pixel (3 channels: R, G, B)

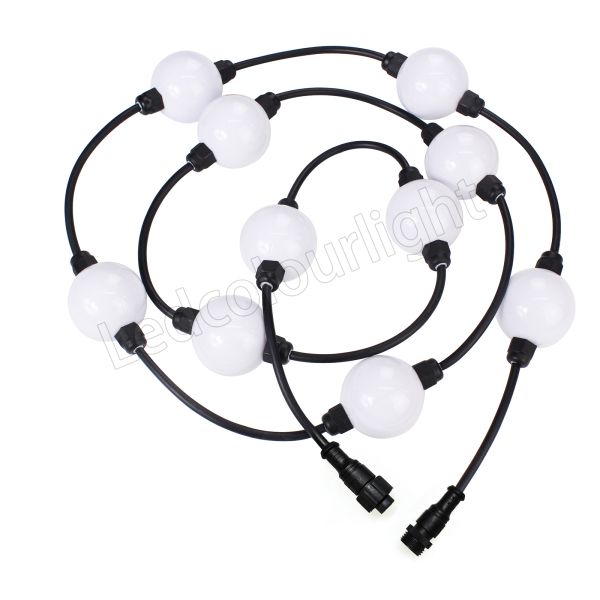

• Daisy-chain multiple strings via input/output connectors
• Compatible with standard DMX controllers, lighting consoles, and Art-Net/sACN systems
• Supports pixel mapping software for custom animations and effects
  • SPI (WS2811) Control

• Addressable pixel-by-pixel control for dynamic, high-speed animations
• Ideal for large-scale 3D matrix projects requiring synchronized effects
• Works with SPI controllers, LED matrix software, and DMX-to-SPI decoders
  • Installation Flexibility

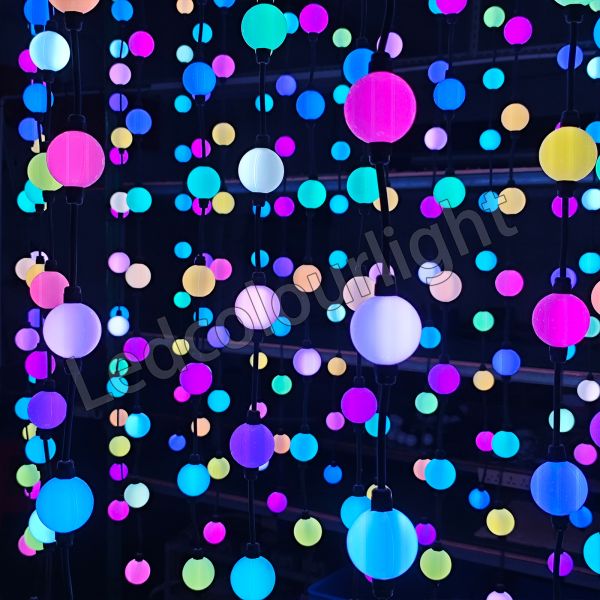

• 2D Curtain: Hang vertically with T444 cable connectors to create a flat LED curtain wall

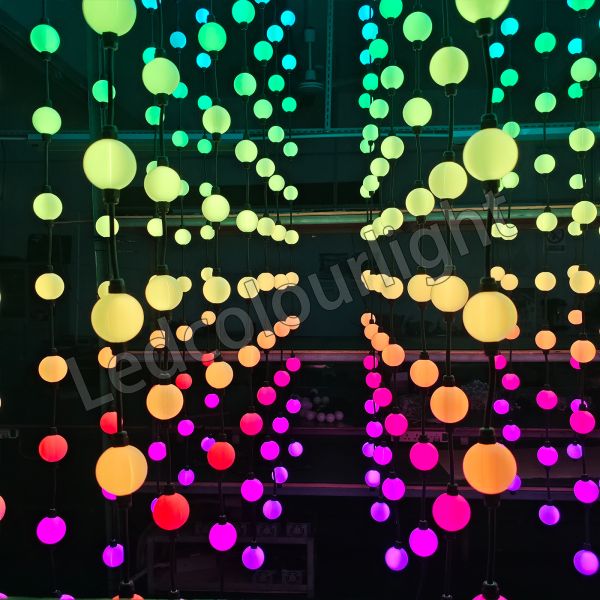

• 3D Matrix: Arrange multiple strings at varying depths for volumetric 3D effects

• LED Tunnel: Connect strings end-to-end to form immersive light tunnels

• Lawn/Outdoor: Lay horizontally on grass or attach to structures for landscape lighting

Applications:

● Stage & Events: 3D matrix backdrops, concert lighting, nightclub visual displays
● Architectural Lighting: LED tunnel installations, building facades, ceiling grids

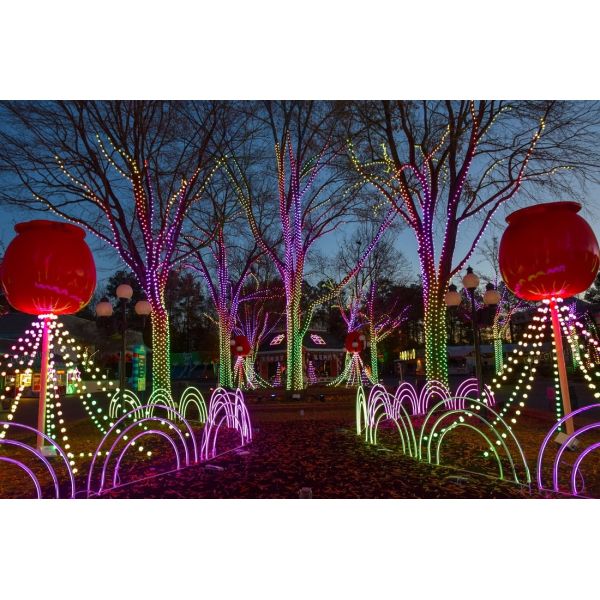

● Decorative Installations: Wedding/party backdrops, holiday lighting, lawn decorations
● Interactive Installations: Museum exhibits, theme parks, art installations
● Commercial Spaces: Mall displays, restaurant lighting, retail window setups
● Permanent Outdoor Installations: Facades, parks, and public artworks (with IP65 potting option)

Packing and Shipping:

→ Standard Packaging: Each string is coiled and packed in an anti-static bag, then placed in a sturdy export carton with foam protection.
→ Custom Packaging: Custom labels, logos, and packaging designs are available for bulk orders.
→ Shipping Details: All units are carefully packaged to prevent damage during transit, with clear labeling for easy identification.

FAQ:

Q1: What is the difference between the 6LED and 12LED versions?

A1: The 6LED (1.44W) model offers balanced brightness and power efficiency, ideal for most installations. The 12LED (2.88W) version delivers maximum brightness for large, high-brightness applications like stage backdrops.

Q2: Can I customize the pixel spacing and string length?

A2: Yes! Both pixel spacing (distance between balls) and total string length are fully customizable to your project requirements.

Q3: Are these lights suitable for permanent outdoor use?

A3: Yes. Our potting-encapsulated IP65 version fully seals the inner light source, providing complete dust protection and resistance to water jets—making it ideal for permanent outdoor installations.

Q4: What control systems are compatible?

A4: They support both DMX512 for large-scale synchronized shows and SPI for fast-response, dynamic effects.

Q5: What payment methods are accepted for purchasing the RGB String Lights?

A5: Payment terms include T/T (Telegraphic Transfer) and PayPal.
