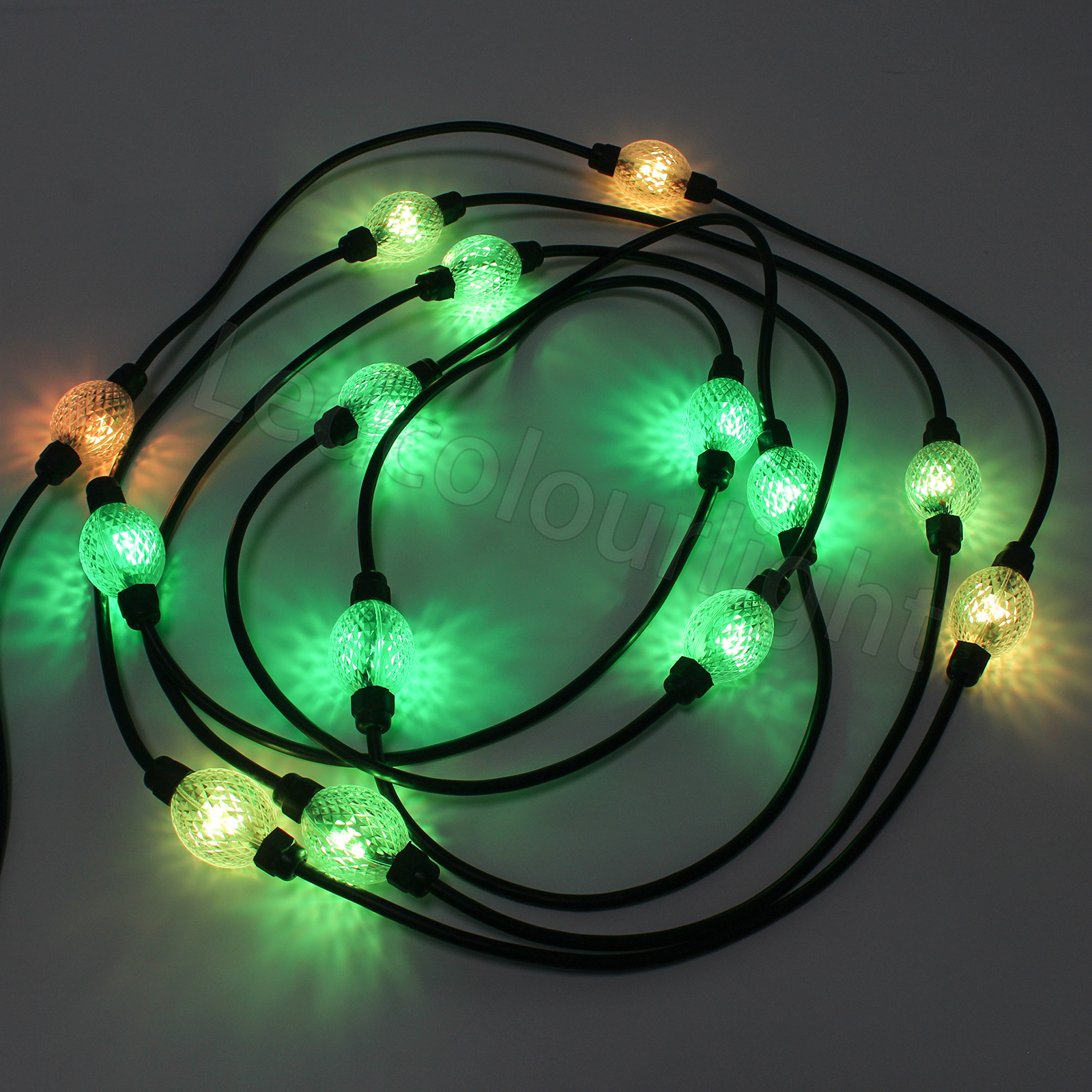

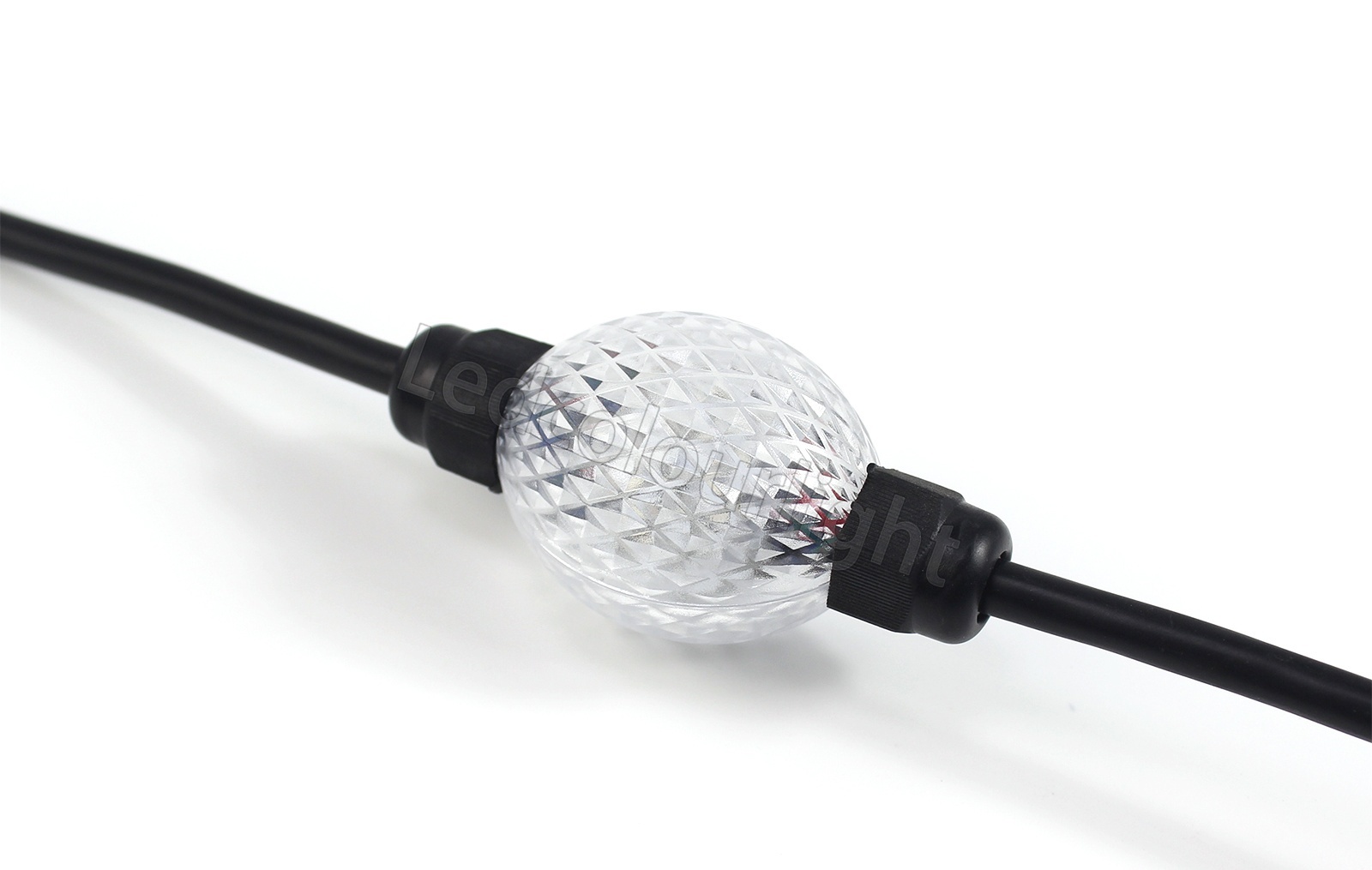

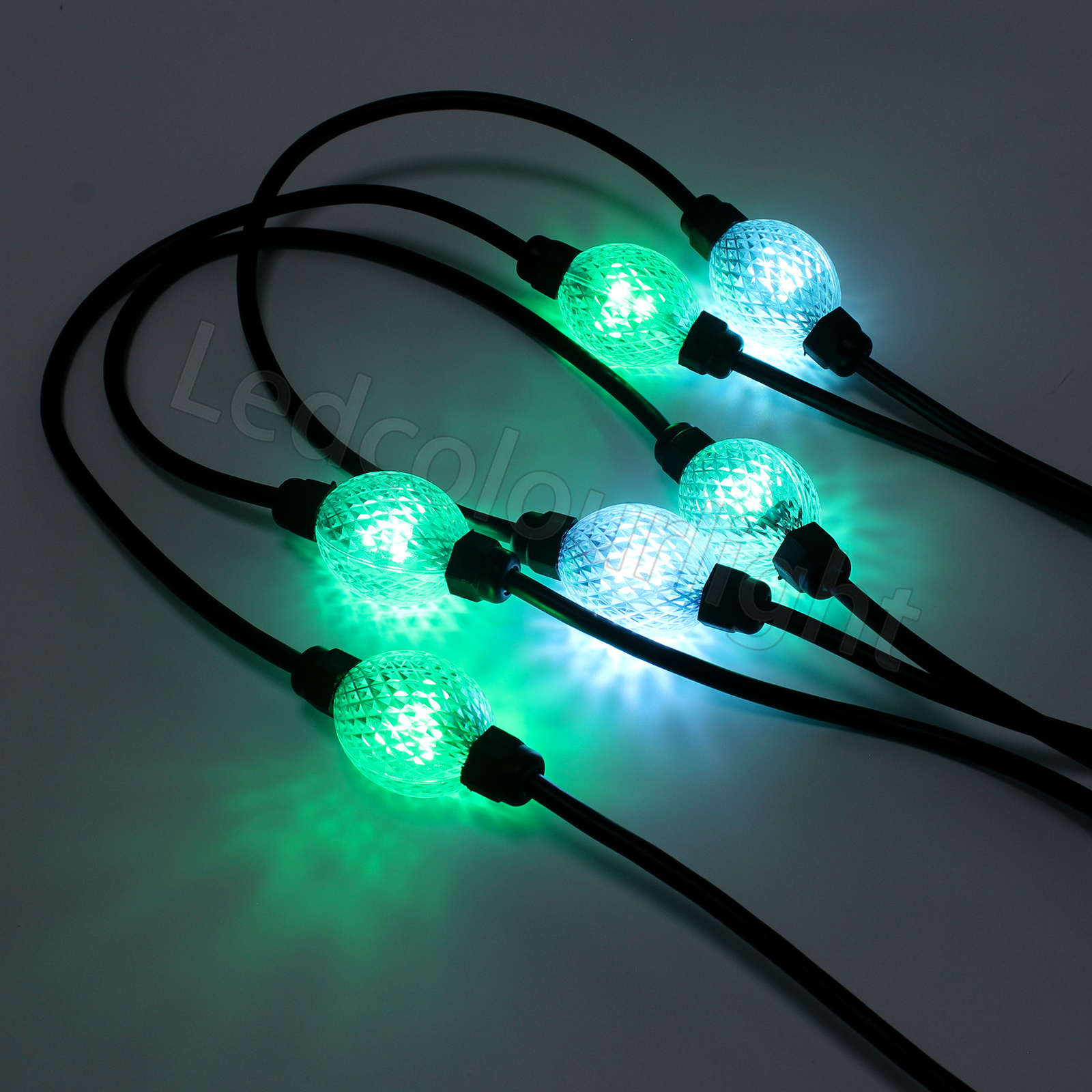

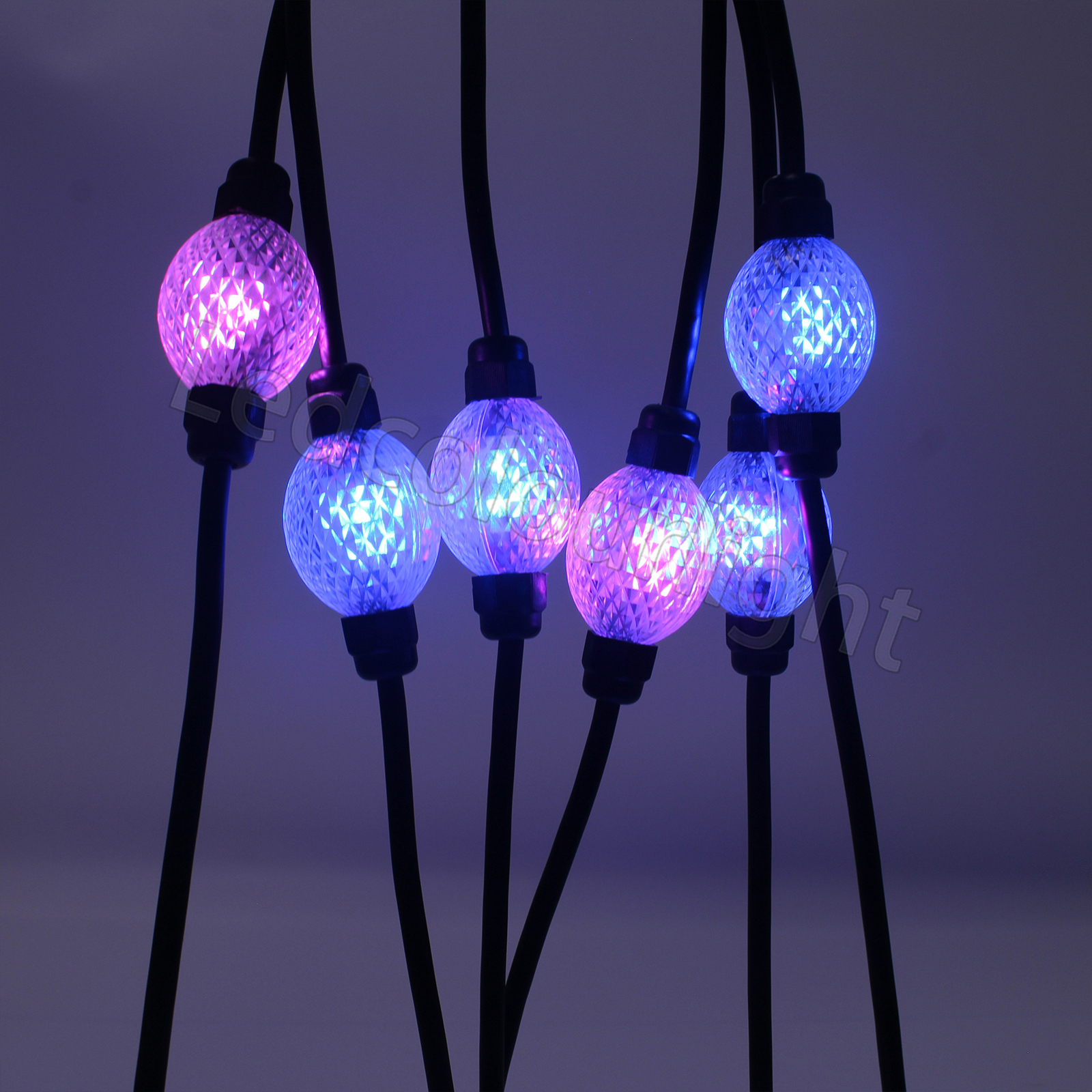

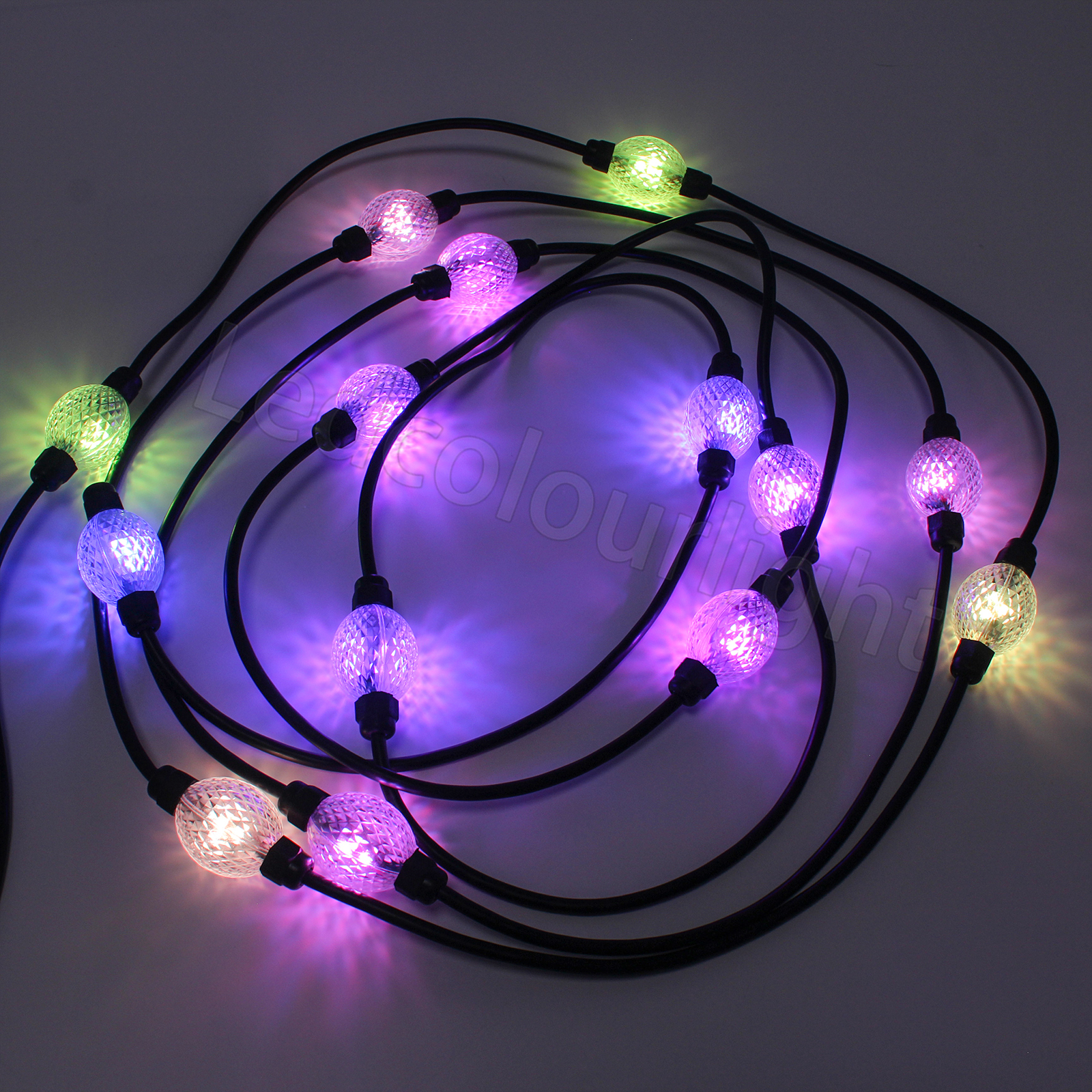

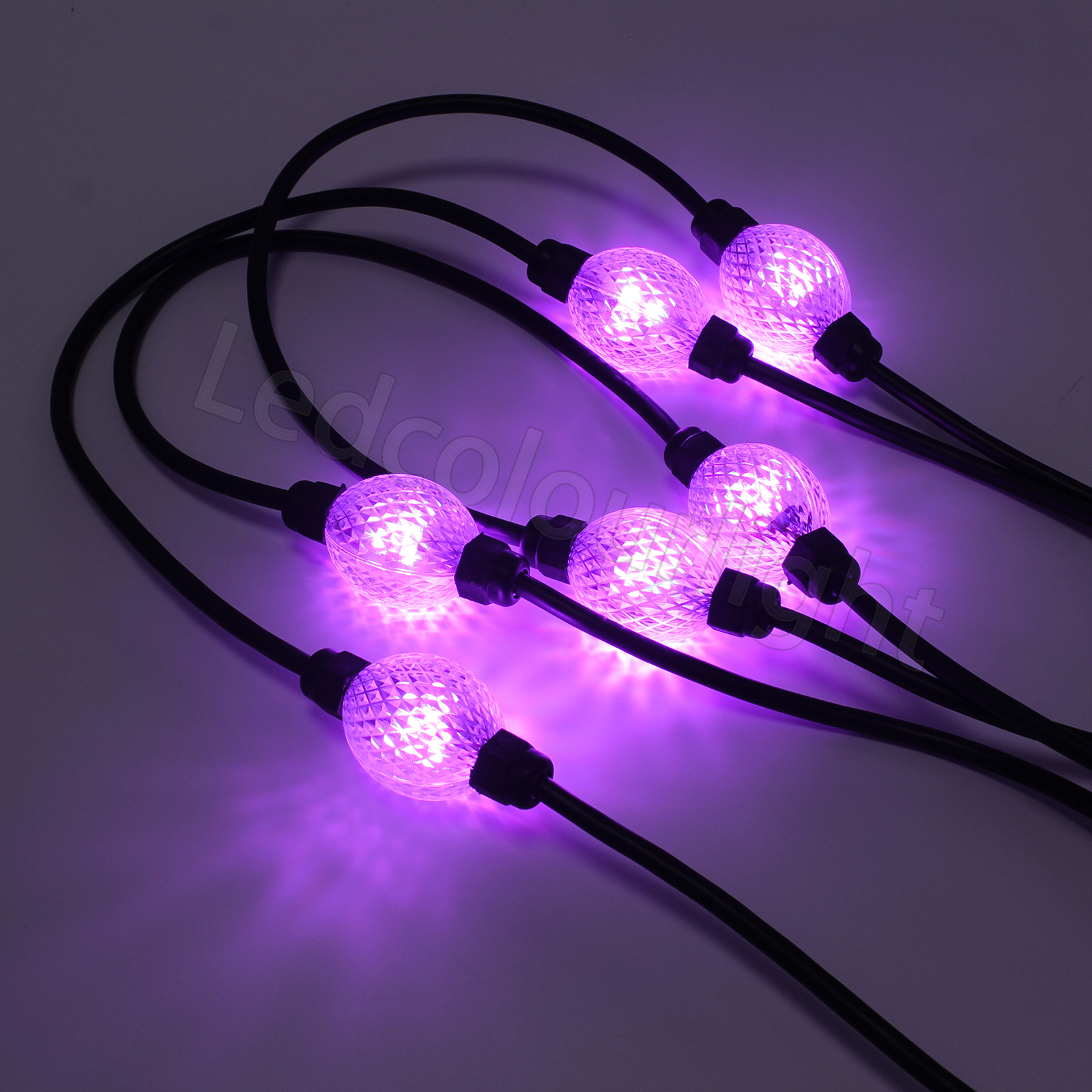

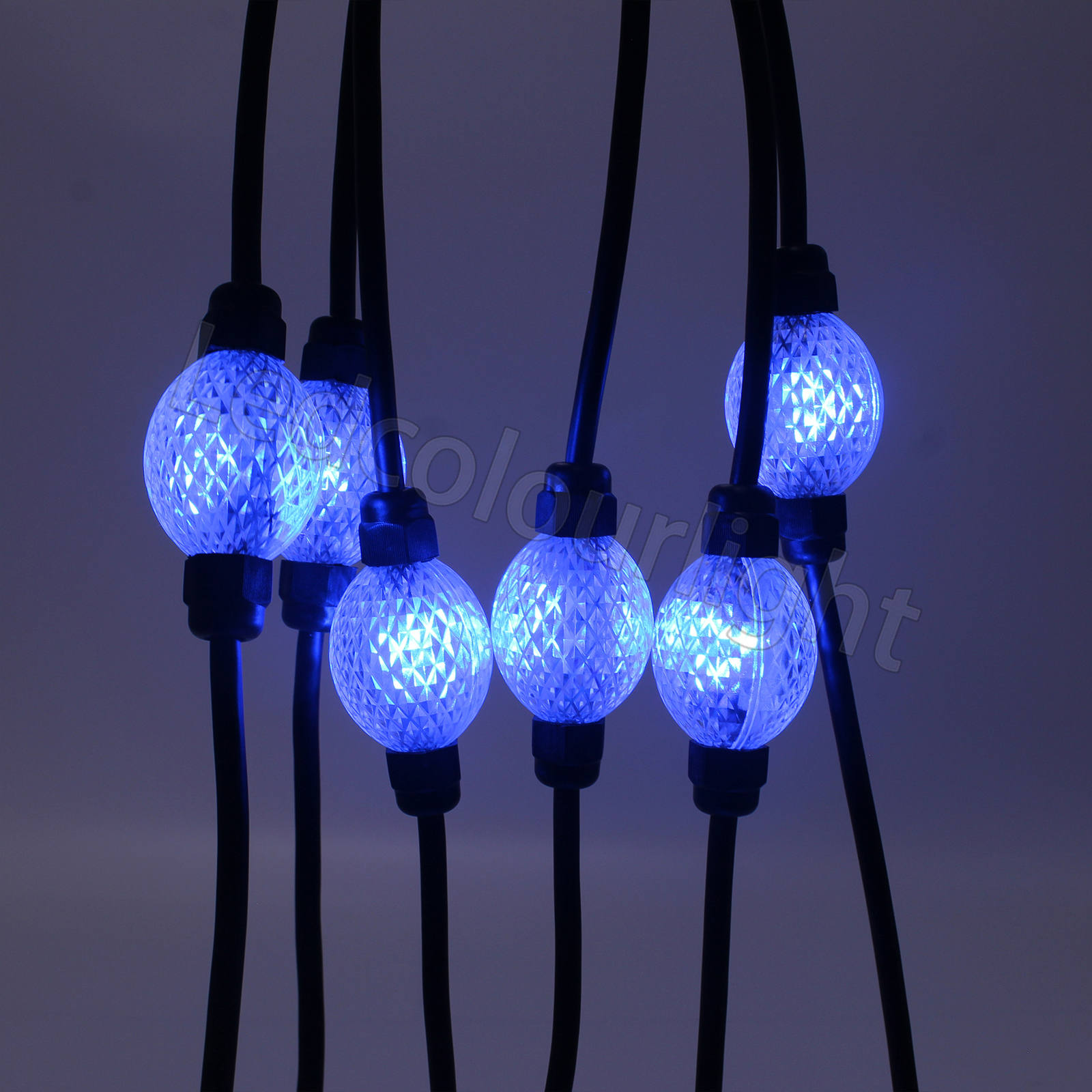

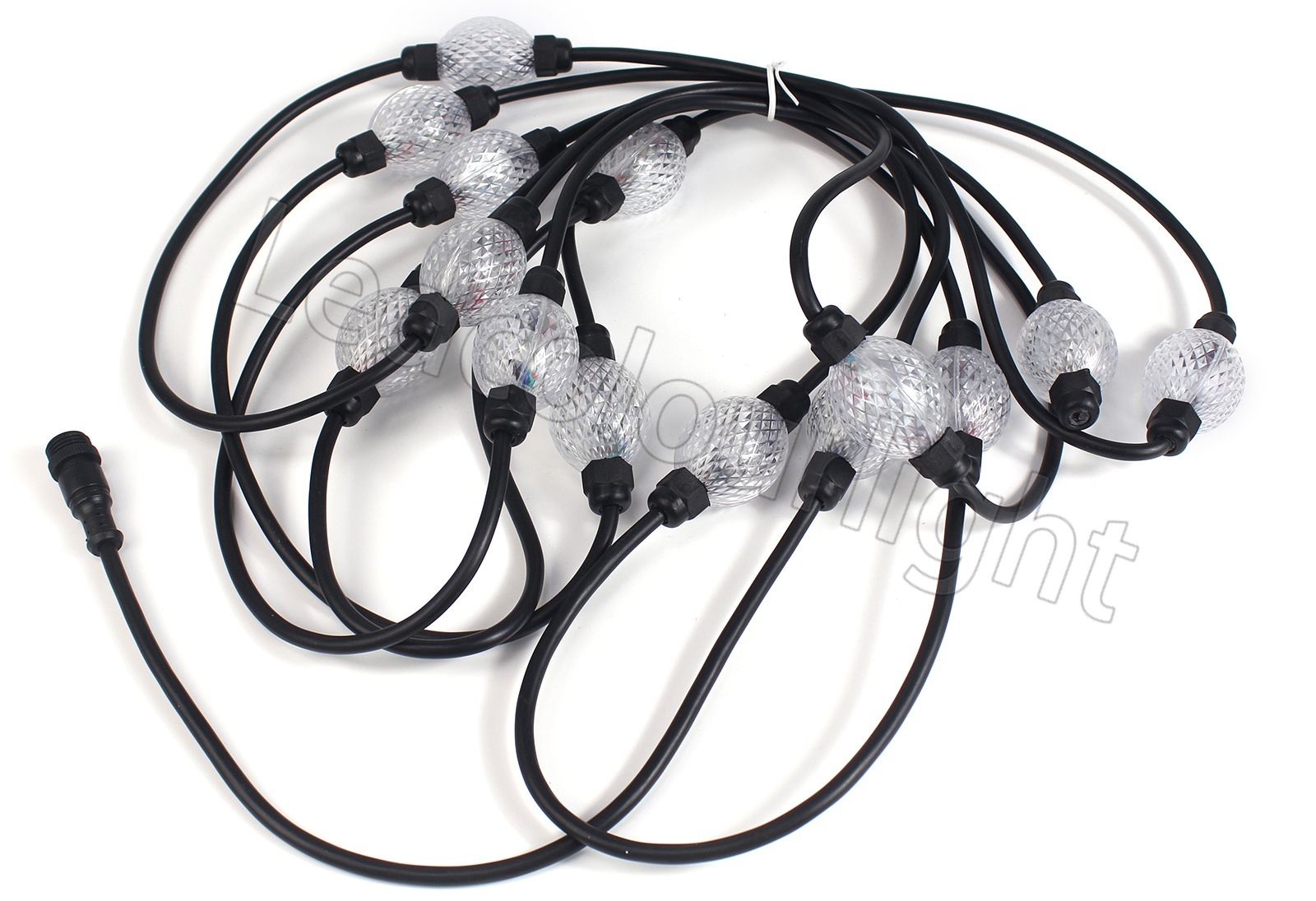

35mm DC24V 6LEDs DMX512 WS2811 RGB Light Strings for Stage Event Lighting

20cm spacing or customized | Pixel Control | IP65

Key Features

• Unique diamond-cut transparent PC housing creates multi-angle light refraction, uniform gorgeous lighting output;

• Individually addressable RGB pixel, compatible with DMX512 & SPI IC, supports Madrix, Madmapper and mainstream lighting controllers;

• Dual-end PC waterproof cable glands (black or white color), effective anti-pull and water ingress prevention;

• IP66 waterproof rating, stable performance for outdoor long-term operation, adapts to all weather conditions;

• Flexible customization: Black/white cable, customizable string length & pixel spacing;

• High-quality SMD RGB LED chips, low power consumption, long service life up to 50,000 hours;
• Continuous lamp string design, easy serial connection, simplifies wiring for large-scale projects;
• Factory direct supply. We support custom logo, housing modification, and parameter adjustment via OEM & ODM.

Technical Specifications

Customization Options

We provide flexible customization options with a minimum order quantity of 100 units.

The spacing between each LED ball, quantity per string, and cable length can all be tailored to project requirements. Available installation configurations include single-ended input cables for suspended decorative applications or input/output cable designs for end-to-end connection.

Connection Diagram

• Vertical hanging installation
• LED curtain systems
• LED cube structures
• Horizontal end-to-end connection
• Architectural lighting grids

Application

• Amusement park, carousel, funfair decorative lighting

• Building facade media pixel screen, exterior architectural lighting

• Shopping mall ceiling starry sky, 3D hanging light net installation

• Night club, bar, stage, event & festival dynamic decoration

• Theme park scenic spot lighting, tourist attraction decorative light

• Commercial plaza, waterfront landscape dynamic lighting projects

Certifications

Fully compliant with CE and RoHS standards, ensuring safety, environmental responsibility, and smooth market access for EU and global projects.

Packing & Shipping

Each light string is individually protected with anti-scratch packaging materials and packed in reinforced export cartons to ensure safe transportation. Custom packaging, OEM labeling, and project-specific packing solutions are available.

Worldwide shipping can be arranged by express courier, air freight, or sea freight, supported by complete export documentation for international projects.

FAQ

• Q1: What control system does this product use?
  A1: The product operates using DMX512 RGB pixel control, allowing each LED ball to be individually addressed and programmed.
  Q2: Can the spacing between the balls be customized?
  A2: Yes. Standard spacing options include 100mm, 150mm, and 200mm, while custom spacing is available for project requirements.
  Q3: Is the product suitable for outdoor installation?
  A3: Yes. The IP66-rated waterproof design allows reliable operation in both indoor and outdoor environments.
  Q4: What colors are available for the structure and cables?
  A4: Both black and white versions are available, including matching waterproof caps and cables.
  Q5: Can the strings be directly connected together?
  A5: Yes. Horizontal end-to-end connection is available for creating larger lighting grids and display systems.
  Q6: Warranty?
  A6: All products we sell are of good quality and have been tested before shipment. We offer a 2-year warranty.
  Q7: OEM and ODM Available?
  A7: Yes. This is the advantage of our factory: we focus on delivering an integrated customisation service.
