Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL- RGB-3DB36-DMX-24V- 0601
Certification :
CE, RoHs
Place Of Origin :
Shenzhen,China
MOQ :
500
Payment Terms :
EXW
Supply Ability :
50000pcs/month
Delivery Time :
12~15 Days
Packaging Details :
36 strings/carton; 51*47*35cm
Type :
36mm DMX Ball String Lights
Control Method :
DMX/SPI
Color :
RGB
Light Source :
6 * SMD3535
Voltage :
DC24V
Power :
1.44W / Ball
Warranty :
2 Years
Material :
PC Shell
Lifespan :
50,000 Hours
Beam Angle :
360-degree Emitting
Description

Product Description:

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

36mm Ultrasonically Sealed 3D LED Ball String Light, engineered for projects that demand uncompromising durability, uniform light output, and creative flexibility.
Every 36mm milky-white PC ball is permanently sealed via ultrasonic welding—tamper-proof, humanly unopenable, and ready for the most demanding environments. Inside, 6 high-performance SMD3535 RGB LEDs (3 per side) deliver a full 360° omnidirectional glow, ensuring even light diffusion from every angle. Powered by safe DC24V, the light strings work seamlessly with the DMX control system, making them ideal for complex pixel mapping and synchronized light shows.
With an IP65 waterproof rating, these lights thrive in indoor and outdoor installations alike. Customize your layout with variable center-to-center spacing (10cm, 20cm, 50cm, or fully custom) and string lengths tailored to your project scale. For a unique visual twist, upgrade to our exclusive “ball-in-ball” configuration, adding a 50mm clear outer shell to create layered light effects and enhanced depth. Whether suspended vertically for cascading displays or linked horizontally for grid facades, these strings bring dynamic color and immersive atmosphere to any space.

Technical Parameters:

Model
LCL- RGB-3DB36-DMX-24V- 0601
LCL- RGB-3DB50-DMX-24V- 0601
LED Type
SMD RGB 3535
SMD RGB 3535
Size
36 mm
50 mm
LED Pixels
1 Pixel
1 Pixel
Input Voltage
DC24V
DC12V
LED Qty
6pcs SMD3535
6pcs SMD3535
Power
1.4W/Ball
1.4W/Ball
Control
DMX512/SPI
DMX512/SPI
Address Setting
Manual/Auto
Manual/Auto
Operating Temperature
-20-50ºC
-20-50ºC
Pixels/channel
170 pixels/channel
170 pixels/channel
IP
IP65/IP45
IP65/IP45

Key Features:

• Ultrasonically Sealed Tamper-Proof Housing: 36mm milky-white PC shell is permanently welded shut, ensuring water-tight integrity and resistance to tampering.

• 360° Beam Angle: 6pcs SMD3535 RGB LEDs (3 per side) deliver uniform, vibrant light from every angle.

• Safe DC24V Operation: Low-voltage power input ensures safety for public spaces and continuous long-term use.

• Project-Specific Customization: Fully customizable center spacing (10/20/50cm+) and string lengths to fit any installation layout.

• IP65 Weatherproof Rating: Built to withstand rain, humidity, and temperature fluctuations for year-round indoor/outdoor use.

• Dual Installation Options: Designed for vertical hanging (cascading displays) or horizontal end-to-end linking (grid facades).

• UV-Resistant Construction: Durable materials resist fading and discoloration under prolonged outdoor exposure.

• DMX512 Control: Supports DMX control for seamless integration with professional lighting systems and pixel mapping software.

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

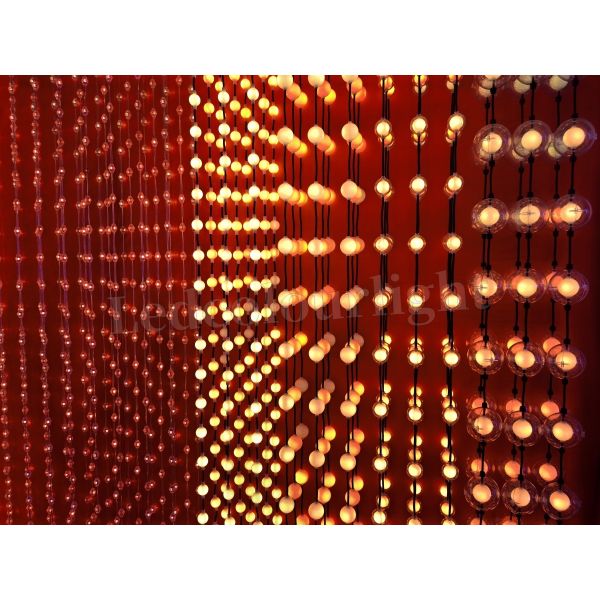

“ball-in-ball” design, adding a 50mm clear outer shell to create layered light effects

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

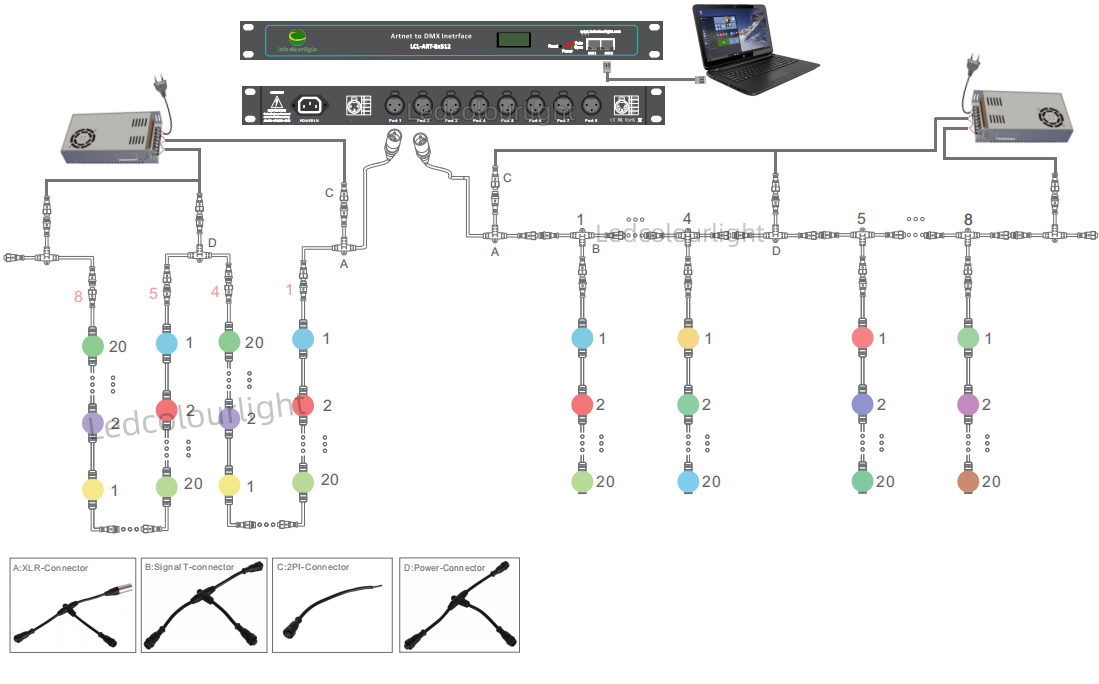

Connection Diagram

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

Applications:

→ Architectural facade grids and building pixel mapping
→ Immersive light tunnels and interactive art installations
→ Stage backdrops, concert venues, and live event lighting
→ Theme parks, shopping malls, and public plazas display
→ Hotel lobbies, restaurant interiors, and luxury retail decor
→ Holiday lighting installations and wedding/party event setups

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

Packing and Shipping:

Product Packaging:

Generally, use standard cartons to pack them

Shipping:
By Sea: FOB Shenzhen, China, 30~45 days.
By Air: DDP/EXW supported, 2~7 working days.
Express: DHL/FedEx/UPS door-to-door, 3~5 working days, tracking provided.

DC24V Addressable DMX RGB 36mm LED Ball String Lights with 360° Beam Angle

FAQ:

Q1: Are you a factory?

A: We are a professional LED pixel lighting manufacturer with an independent production workshop, production equipment, and R&D team, which can guarantee stable quality, competitive price, and sufficient delivery capacity.

Q2: What are your main products and service advantages?
A: Ledcolourlight focuses on the R&D, production, and customization of DMX professional lighting series products. We are not only a lamp manufacturer, but also provide one-stop professional DMX lighting overall solutions for various architectural, stage, and commercial lighting projects.

Q3: Can I get samples for testing? What is the sample delivery time?
A: Sample testing is supported. If we have finished products in stock, samples can be delivered immediately. If out of stock, the sample production cycle is 5-7 working days.

Q4: What is your MOQ for this 36mm LED ball string light?
A: The minimum order quantity is 500 balls, supporting a sample trial order for customers.

Q5: Do you support OEM and ODM customized services?
A: Yes, we support full OEM and ODM customization, including product size, spacing, appearance structure, shell color, functional programming, and personalized packaging customization according to customer project requirements.

Q6: What is the mass order delivery time?
A: A: For small batch orders, the delivery time is 7~9 working days; for large-scale engineering bulk orders, the delivery time is 12-15 working days, which can be adjusted according to the order quantity and production schedule.

Q7: What payment terms do you accept?
A: We support multiple flexible payment methods: PayPal (for orders less than 1000USD), T/T bank transfer, Western Union, and Credit Cards, which meet the payment habits of global customers.

Q8: What is your product warranty policy?
A. All our lighting products are strictly tested for aging and performance before delivery. We provide a 2-year professional warranty service. During the warranty period, we provide after-sales maintenance and technical support for quality problems caused by non-human factors.
