IP65 Outdoor 50mm DMX512 RGB 3D Ball Light String for Stage Lights

Key Features:

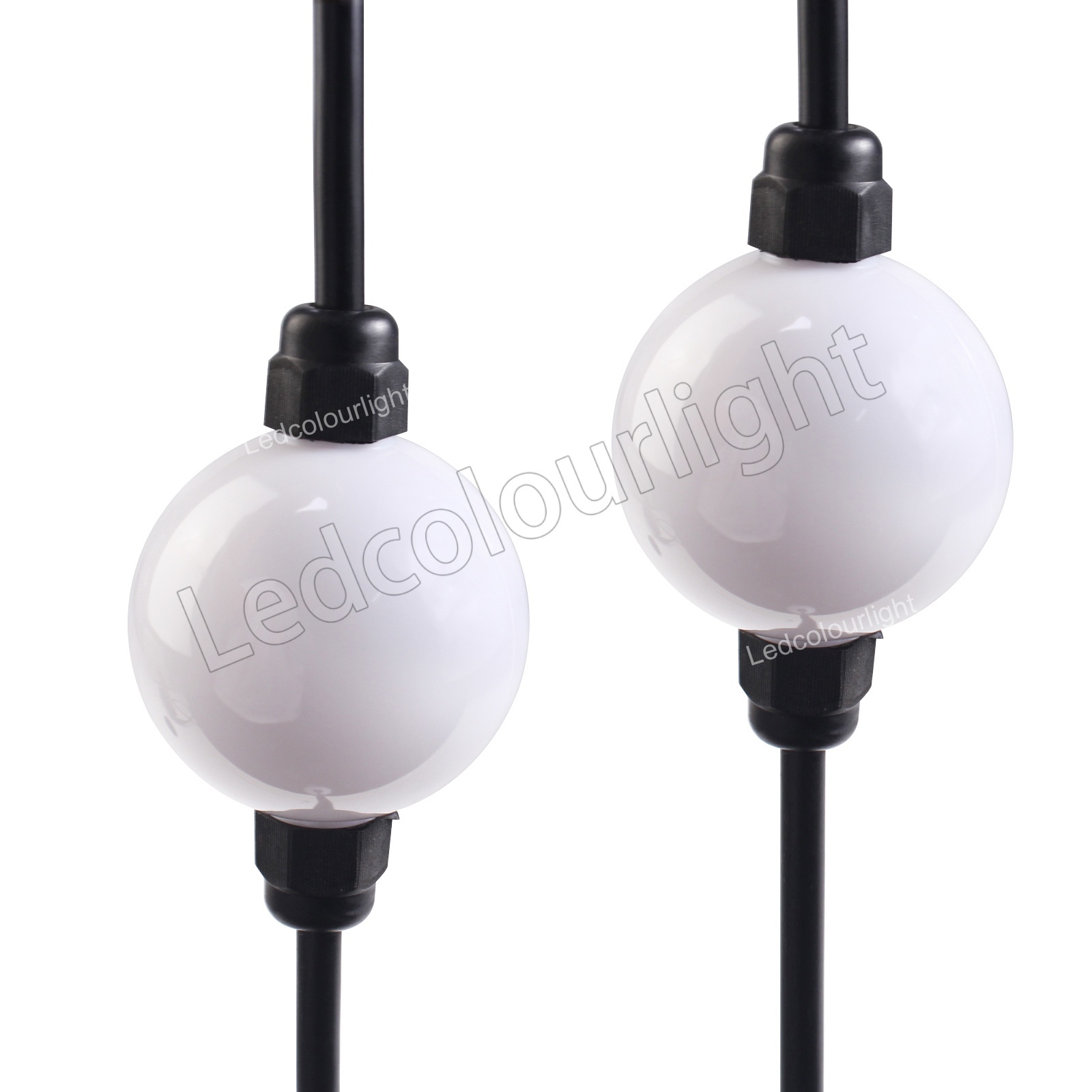

• Ball Size: 50mm diameter, optional 35mm, milk‑white diffused PC housing for even color diffusion

• Light Source: 6 pcs SMD3535 RGB LEDs, 3 LEDs on each side of the ball

• Control Protocol: DMX512 RGB, compatible with Art‑Net controller & Madrix software for pixel mapping

• Electrical Spec: DC24V low voltage, 1.44W per ball, safe for large‑scale hanging installations

• Pixel Pitch: 20~30 cm center‑to‑center distance, customizable upon request

• String Configuration: 8 / 9 /10 / 20 balls per string, custom string length & pixel count supported

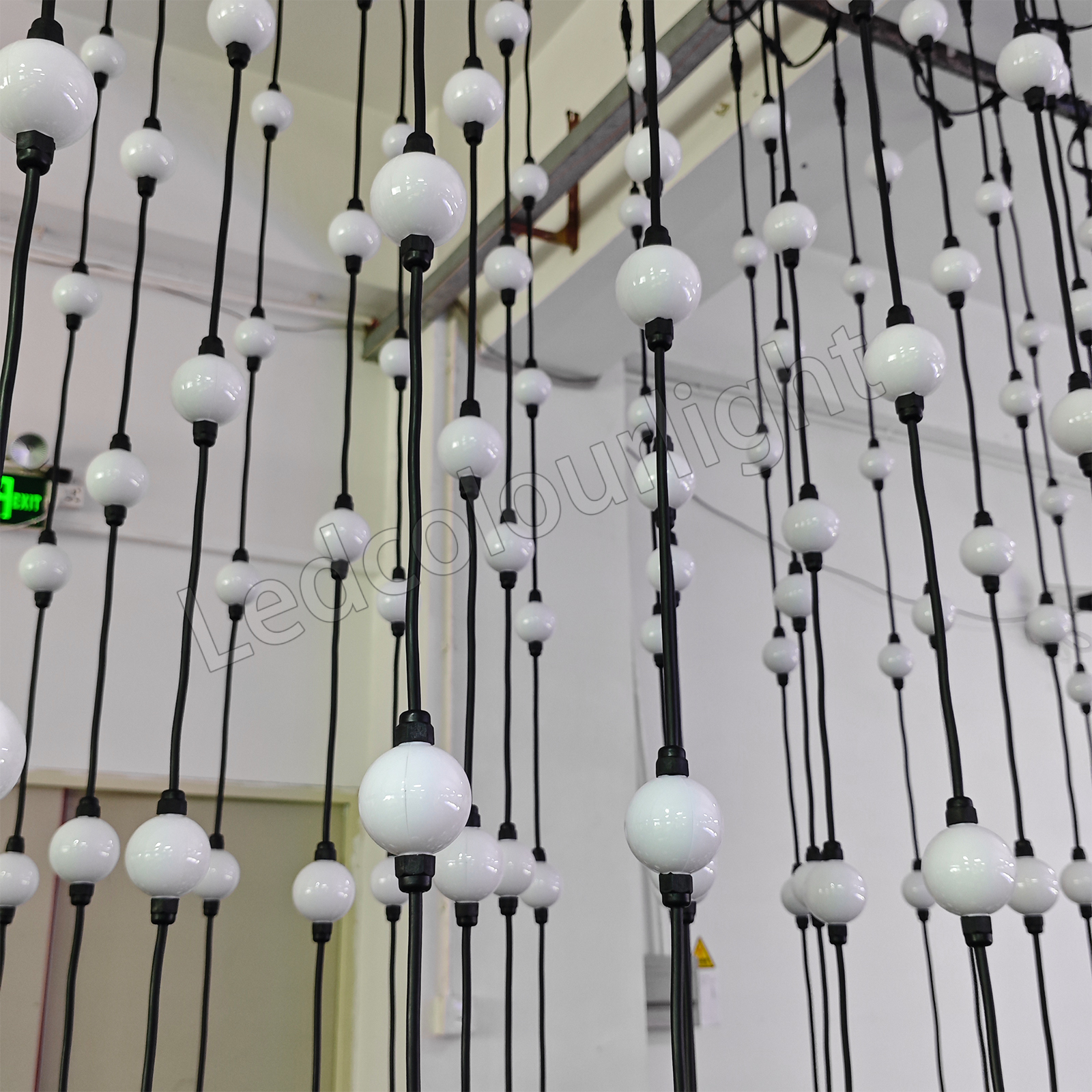

• Hanging‑ready design: vertical suspension structure, easy to build large 3D curtain light wall

Technical Parameters:

Product Description:

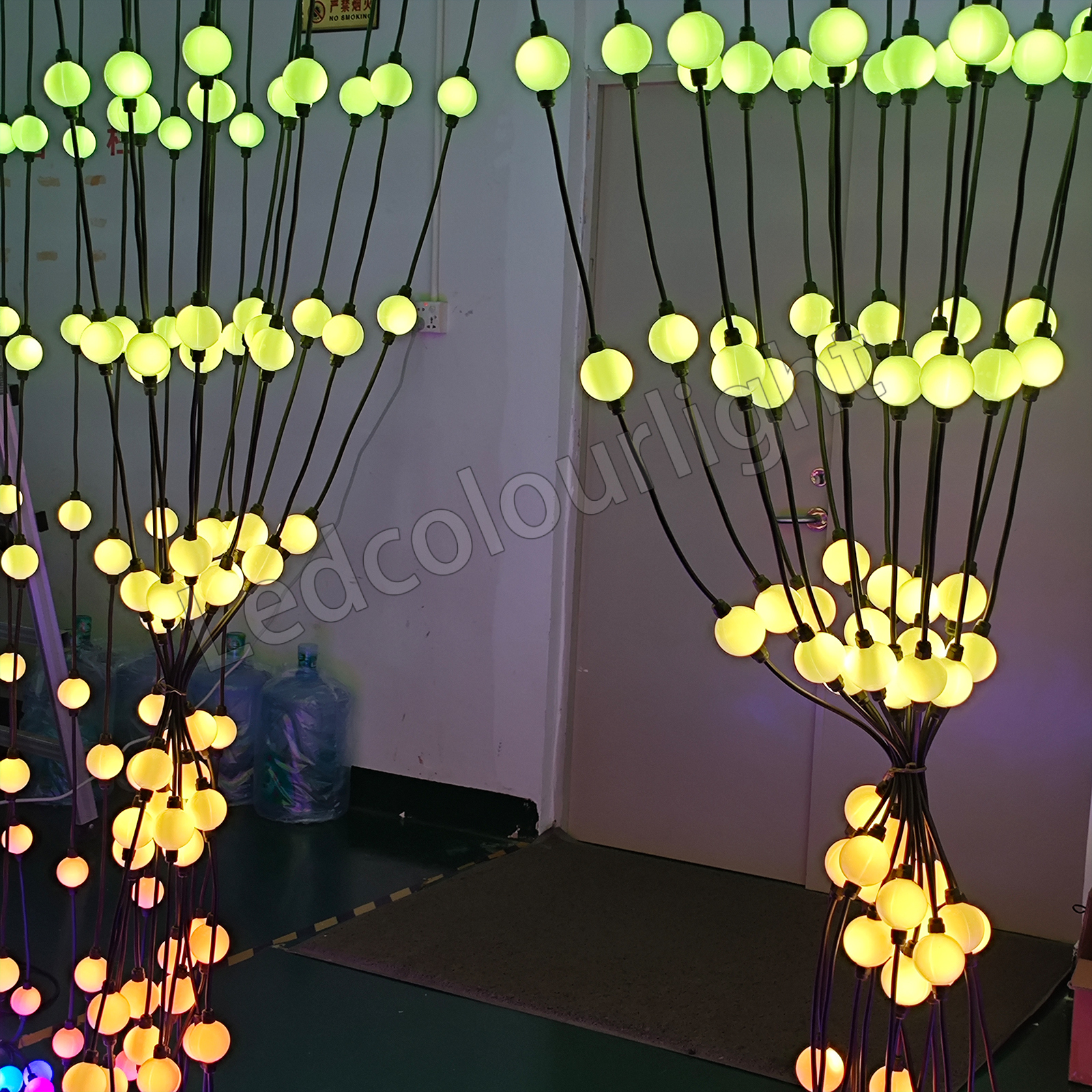

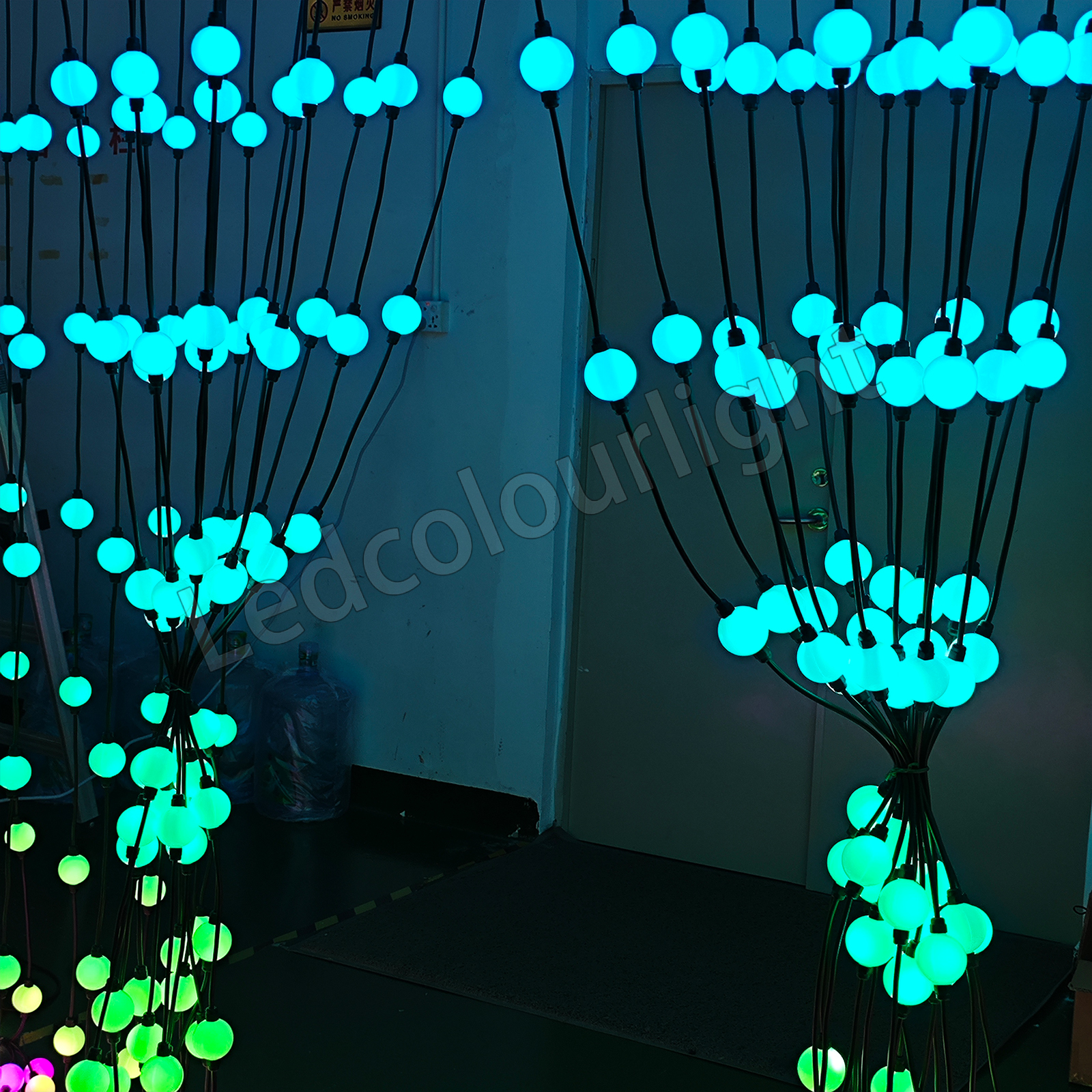

Ledcolourlight 3D LED ball pixel string light delivers immersive dynamic 3D visual effects for creative architectural and event lighting projects. Each 50mm spherical pixel adopts milk‑white diffused PC housing with 6pcs SMD3535 RGB LEDs (3 LEDs per side), producing soft, uniform full‑color mixing without harsh glare. Powered by safe DC24V input, each ball runs at 1.44W. Standard pixel center distance is 20cm and fully customizable. Strings are available with 8, 9,10,20 pixels per string or custom quantity. Controlled by DMX512 protocol, it works seamlessly with Art‑Net controllers and Madrix software for advanced pixel mapping, animation playback, video effect rendering, and custom light shows. Robust cable & waterproof connector design ensures stable long‑run performance for indoor and semi‑outdoor installations.

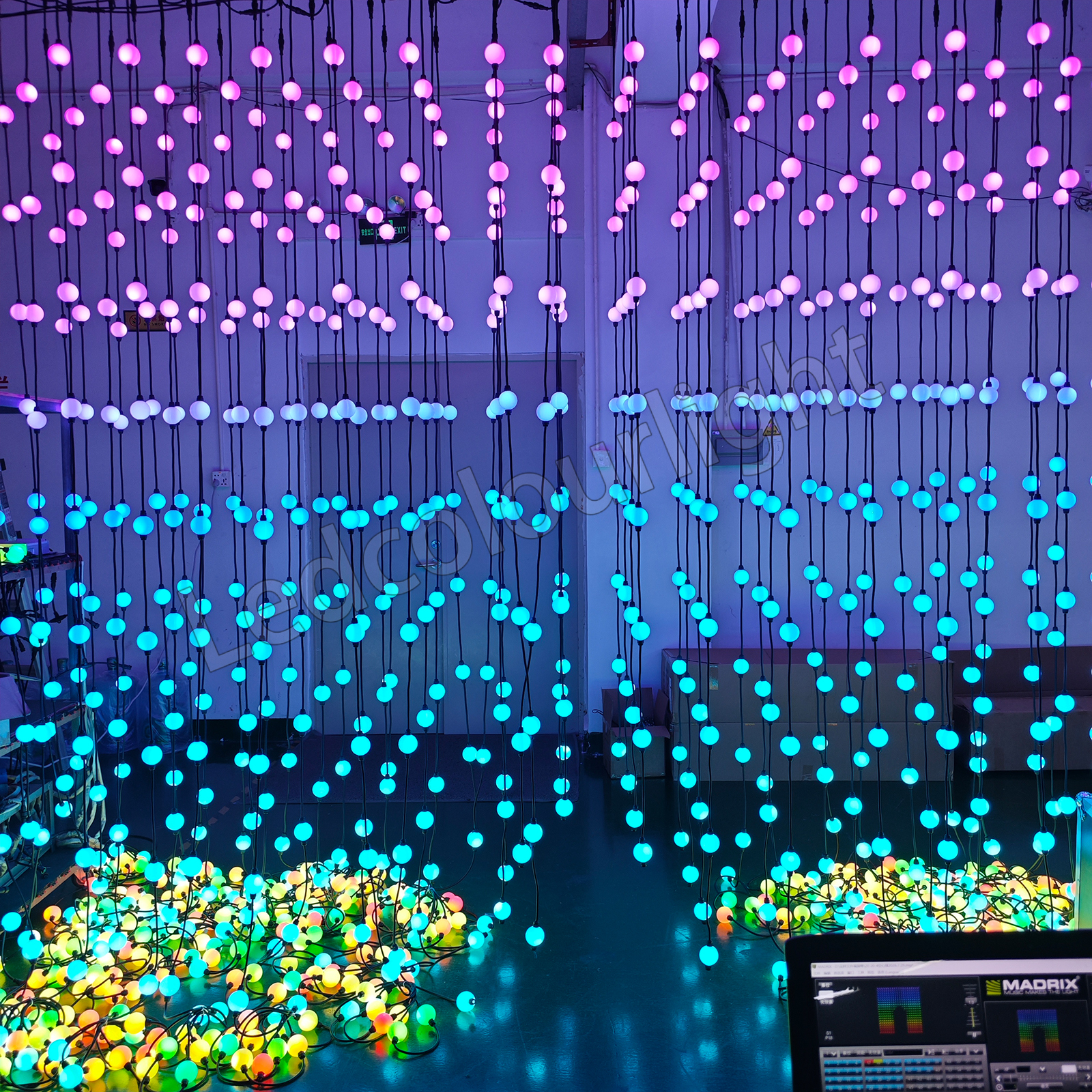

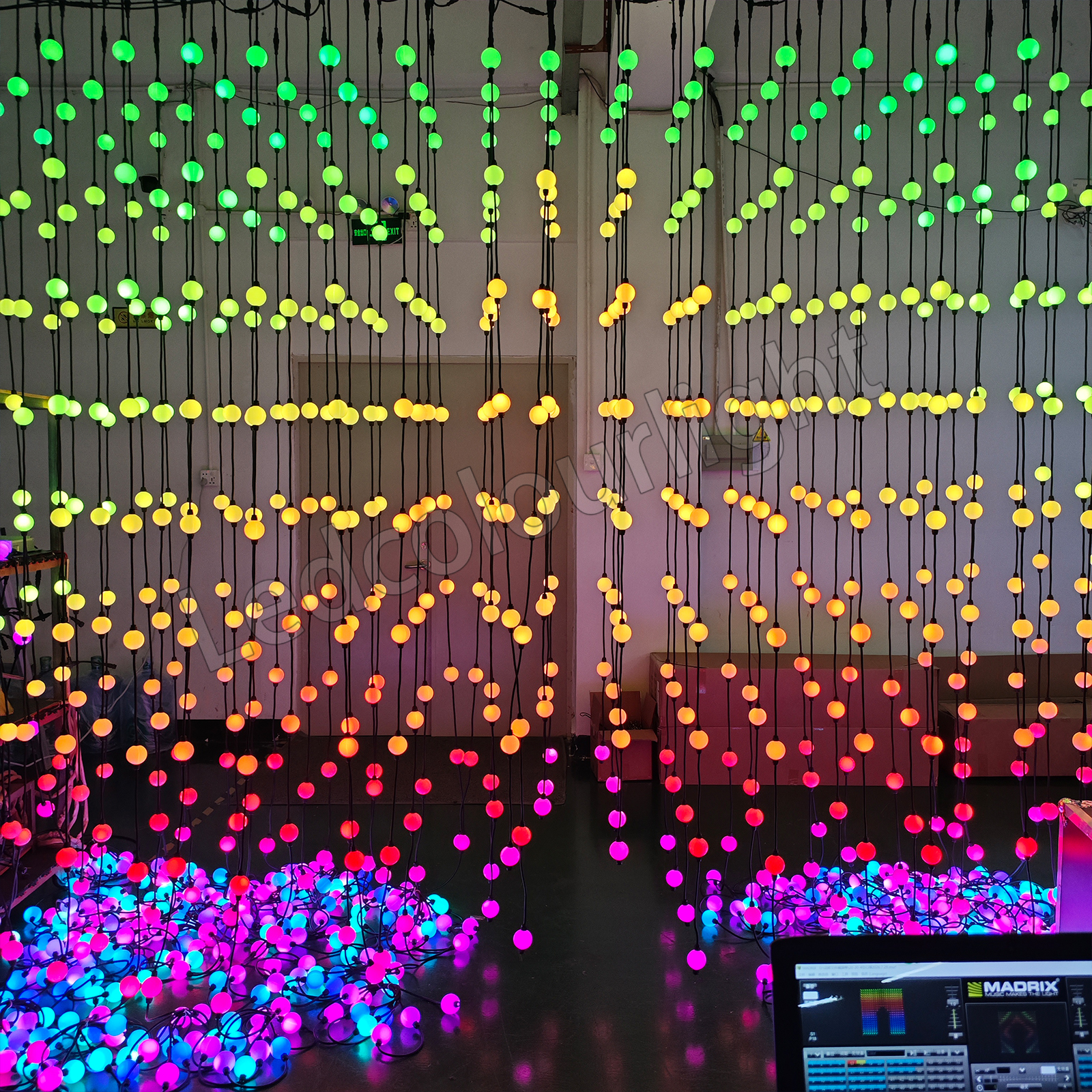

Using Madrix software for programming

Art-net controller system

48~72 hours of aging test before packing

Connection Diagram:

Applications:

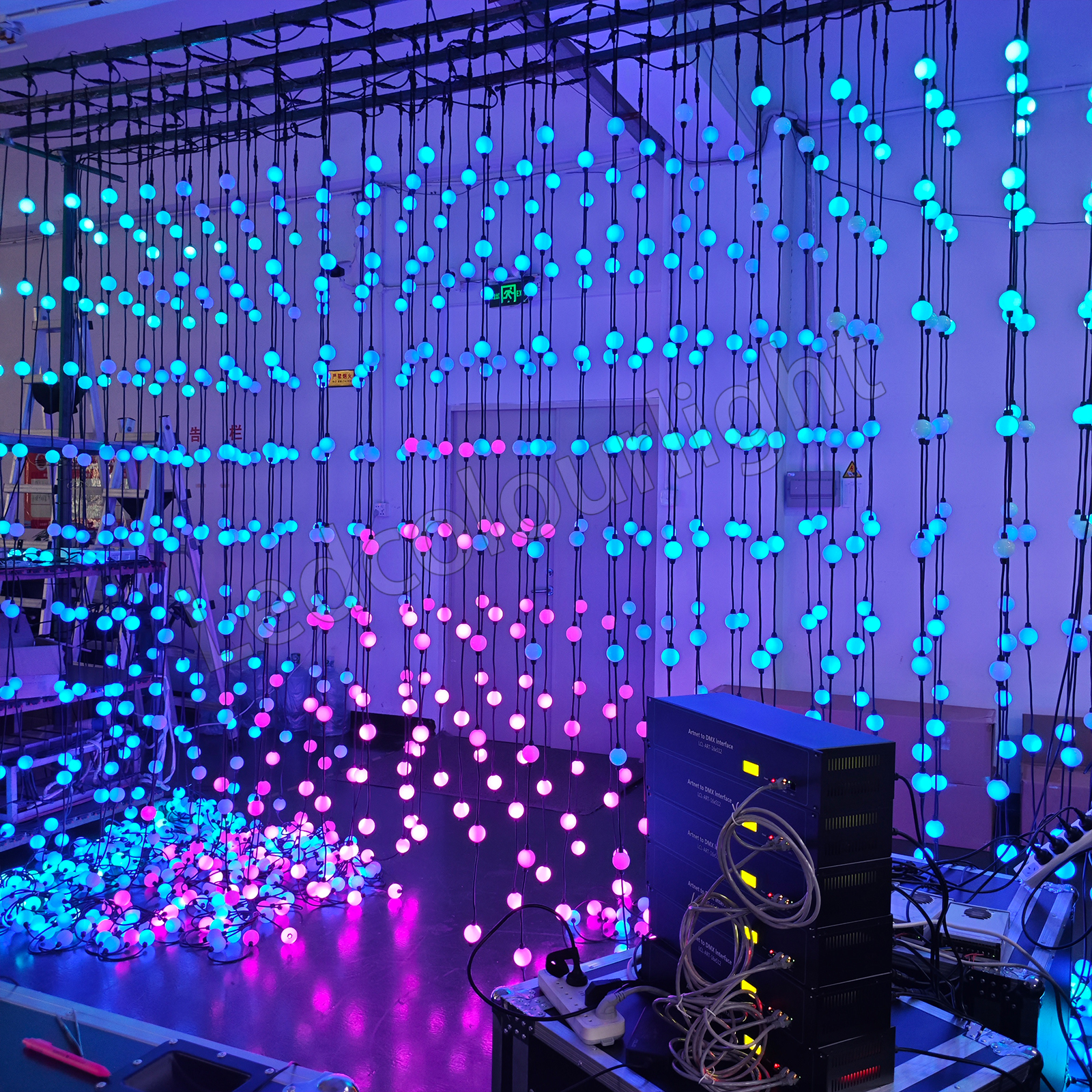

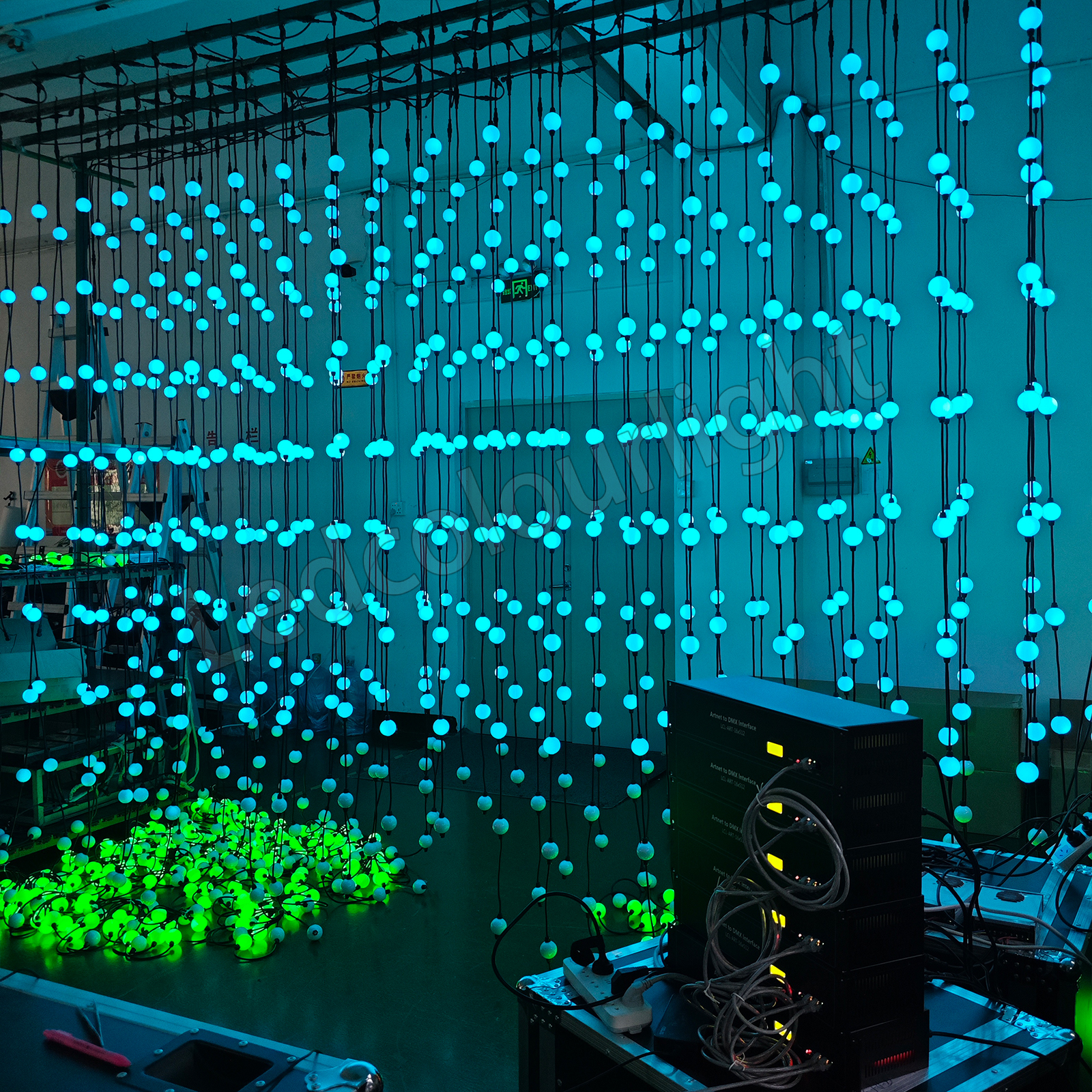

● 3D hanging light curtain, vertical pixel curtain for exhibition hall
● Stage backdrop, concert lighting, club & disco decorative lighting
● Shopping mall atrium, hotel lobby hanging installation
● Festival events, wedding decor, theme park creative lighting
● Facade creative media lighting, art installation, visual art project
● TV studio background, commercial show & event production

Packing and Shipping:

→ Standard Packaging: Each string is coiled and packed in an anti-static bag, then placed in a sturdy export carton with foam protection.
→ Custom Packaging: Custom labels, logos, and packaging designs are available for bulk orders.
→ Shipping Details: All units are carefully packaged to prevent damage during transit, with clear labeling for easy identification.

FAQ:

Q1: Which controllers work with this 3D ball pixel string?

A1: It uses the DMX512 protocol. Compatible with DMX master controller, Art‑Net node, and Madrix software for advanced video mapping and animation editing.

Q2: Can I customize the pixel spacing and string length?

A2: Yes! Both pixel spacing (distance between balls) and total string length are fully customizable to your project requirements.

Q3: Are these lights suitable for permanent outdoor use?

A3: Yes. Our potting-encapsulated IP65 version fully seals the inner light source, providing complete dust protection and resistance to water jets—making it ideal for permanent outdoor installations.

Q4: What control systems are compatible?

A4: They support both DMX512 for large-scale synchronized shows and SPI for fast-response, dynamic effects.

Q5: What payment methods are accepted for purchasing the RGB String Lights?

A5: Payment terms include T/T (Telegraphic Transfer) and PayPal.
