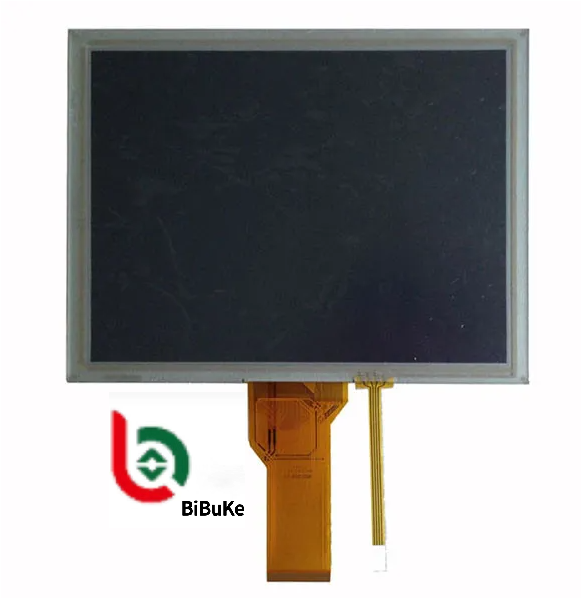

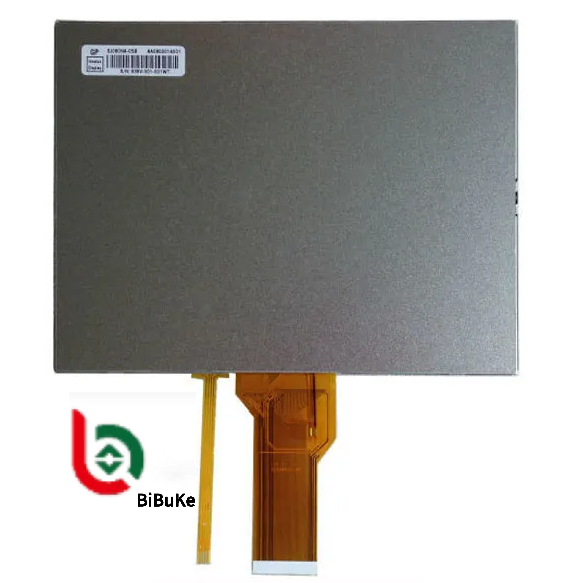

8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection
8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection
8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection
8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection
Specifications
Backlight Technology :
LED
Pin Number :
50 PIN
Transmissive Mode :
Normally Black
Connection :
ZIF
Viewing Direction :
6 O'clock
Screen Size :
8 inches
Brightness :
250 cd/m²
Screen Type :
TFT
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
8" 800x600 RGB 50 Pin with Resistive Touch TFT LCD Display
8" 800x600 RGB 50 Pin with Resistive Touch TFT LCD Display
Product Specifications
Keywords: 8 Inch TFT LCD Display
Touch Screen: Resistive Touch Panel (Optional CTP)
Resolution: 800×600
Outline Dimensions: 183.00×141.00×7.30 MM
Active Area: 162×121.5 MM
Cover Glass Dimension: ODM
Interface: RGB
Surface Luminance: 250 Cd/m²
LED Lifetime: 40,000 Hours
Pins: 50
Viewing Direction: 6 O'clock
Compliance: REACH & RoHS Compliant
Product Introduction
This industrial-grade TFT liquid crystal display module features an 8-inch screen with 800×600 resolution, RGB interface, 50 pins, and resistive touch screen. The display combines the screen with resistive touch panel, connected via 50-pin FFC wiring with 3.3V power supply. Standard brightness ranges from 250 to 300 cd/m², with operating temperature range of -20°C to 70°C. It features anti-static capability (ESD 8KV) and is suitable for harsh industrial environments.
  • Core Specifications: 800×600 (SVGA) resolution with detailed picture quality; RGB 18/24 bit parallel interface, directly compatible with FPGA, single-chip microcontroller, ARM and other embedded controllers without additional decoding chips.
  • Touch Characteristics: Resistive touch screen supporting handwriting, fingertip/touch pen operation, strong anti-interference, low cost, suitable for industrial and embedded interaction scenarios.
  • Physical and Environmental: Dimensions approximately 183×141×7.25mm, effective display area 162×121.5mm; wide temperature operation, high stability, meeting reliability requirements for industrial, vehicle, medical and other applications.
Main Applications
  • Industrial Control: PLC human-machine interface, industrial dashboard, equipment monitoring terminal, CNC operation panel for parameter setting, status display and data interaction.
  • Medical Equipment: Portable monitor, ultrasound diagnostic instrument, medical testing equipment providing clear data and simple touch operation.
  • Vehicle-mounted Terminal: Vehicle navigation, vehicle monitoring, bus information screen, adapted to vehicle vibration and temperature change environments.
  • Embedded and DIY: Embedded system debugging screen, maker projects (weather station, smart speaker), educational experimental equipment, compatible with various development boards and graphic libraries (such as LVGL).
  • Self-service Terminal: Small inquiry machine, vending machine, security control screen providing simple touch interaction interface.

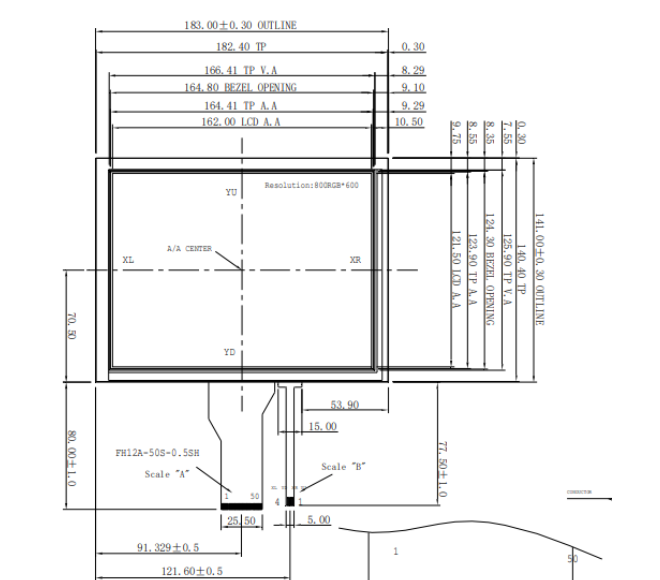

Product Drawings
8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection 8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection 8 Inch 800x600 RGB Resistive Touch TFT LCD Display Screen Module with 50 Pin ZIF Connection
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we will recommend suitable products if they are standard, or we can customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, if you need to modify the outline size or display content, a new LCD glass module is required. We will need to create new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change it according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you don't have one, please provide the outline size of the LCD display, display information (glass thickness, polarizer, display type, connector mode, storage temp, operating temp, supply voltage, viewing direction, drive condition), and we can customize for you.
What is the lead time for tooling?
Generally, it takes 15 to 25 days after drawing paper confirmation and tooling charge payment. We can provide the exact time when you confirm the drawing paper.
Can you send us samples for checking?
Yes. Sample orders are available.
What is the Lead Time?
If we have stock for standard products, lead time is one day after payment. For mass production of special products, lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
Our Services
  • Free repair within one year after product shipment from us.
  • Replacement within 30 days after product shipment from us due to product problems.
  • We can print your logo and stick your model number on the products.
  • We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
  • Professional technician support. We have a good after-sales service team that can solve your problems promptly.
  • All goods are inspected and tested by our engineers and QC/QA before packing and shipment.
  • Customer satisfaction is most important to us. If you have any problems or questions regarding our transaction, please contact us by email or online. We will respond within 24 hours.
  • Product pictures are for reference only. Please refer to the specification. We can provide products based on specifications, or you can provide your own specification or drawing - we can customize all kinds of LCD displays for you.
