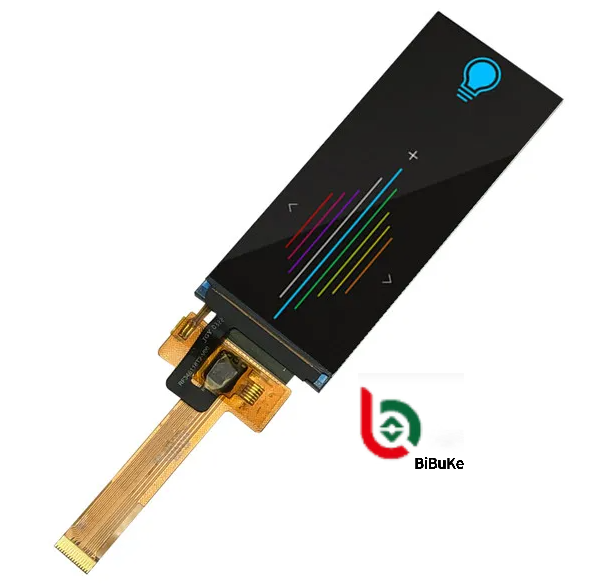

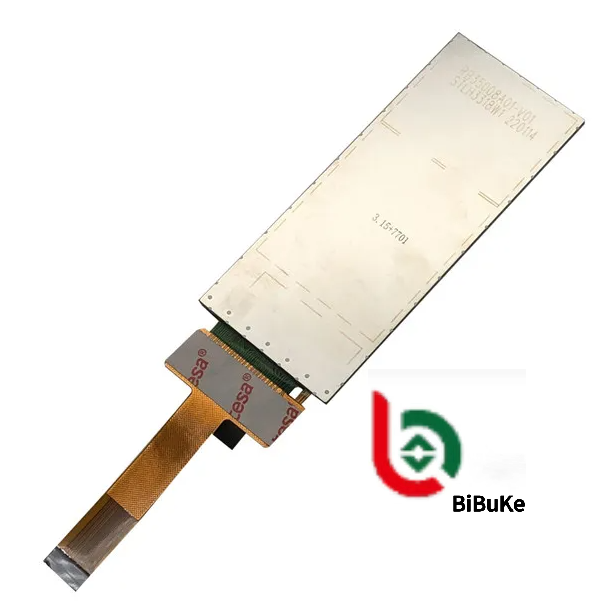

3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
Specifications
Overall Dimensions :
36.67(H) X 88.45(V) X 1.61(T) mm
Backlight Technology :
LED
Screen Size :
3.51 inches
Viewing Angle :
IPS Full Viewing Angle(80/80/80/80)
Light Source :
LED
Connectivity :
Plugging (customizable)
Screen Type :
LCD TFT
Surface Luminance :
580 Cd/m2 (nits)
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
3.51" Inch 340x800 MIPI Interface IPS TFT LCD Display Screen
Product Specifications
Product 3.51" TFT Portrait
Resolution 340x800
Driver IC ST77001S or Equivalent
Outline Dimension 36.67(H) X 88.45(V) X 1.61(T) mm
Surface Luminance 580 Cd/m2 (nits)
Touch Screen Capacitive Touch Panel (CTP) Optional
Viewing Direction IPS Full Viewing Angle(80/80/80/80)

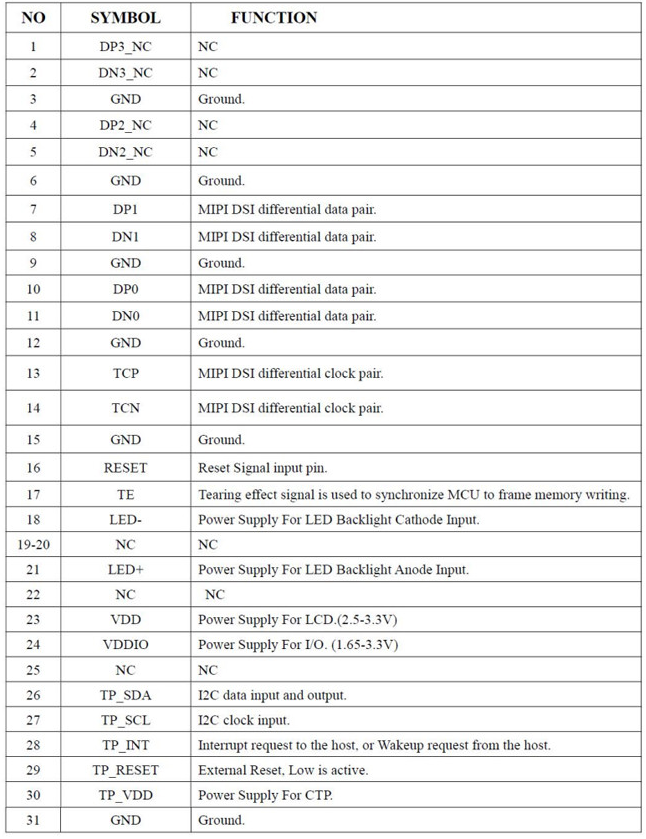

Pin Number 31 Pins
Connection Plugging (Can Be Customized)
Interface MIPI

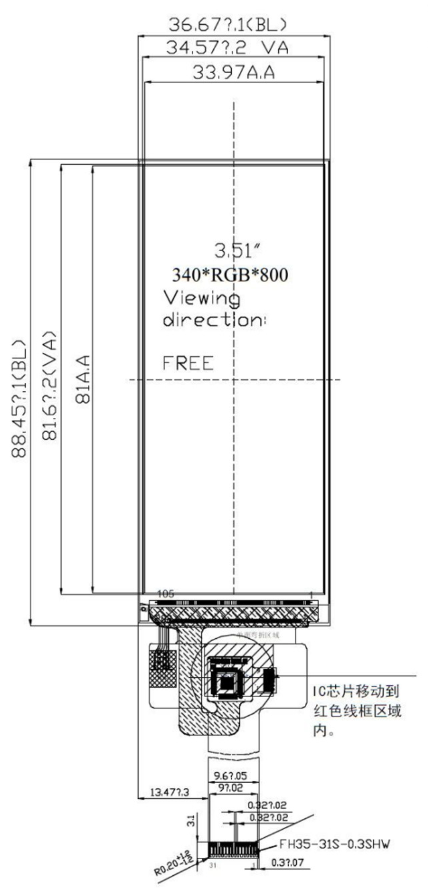

Product Drawings
3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle 3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
Product Overview

This high-performance display module is specifically designed for vertical narrow and long scenarios. With a resolution of 340×800 and display area of 33.97×81mm, it presents an optimal slender strip-shaped display form.

Technical Features
  • IPS (planar conversion) technology with full-view display capability (80° in all directions)
  • 16.7 million colors display with rich and realistic color reproduction
  • Brightness range: 330~580 cd/m² (customizable) with strong outdoor visibility
  • White LED backlight with optional capacitive touch panels (CTP On-Cell/In-Cell)
  • Ultra-thin design at 1.6mm thickness for compact device integration
  • Operating temperature: -20℃ to 70℃, Storage temperature: -30℃ to 80℃
  • MIPI DSI high-speed interface with low power consumption and strong anti-interference
Typical Applications
  • Smart Transportation/Vehicle: Electric vehicle instrument panels, rearview mirror auxiliary screens, HUD sub-screens
  • Portable Medical Equipment: Handheld ECG monitors, blood glucose meters, blood oxygen meters
  • IoT and Smart Home: Smart locks, visible doorbells, gateways, environmental monitoring devices
  • Industrial Control and Instruments: PLCs, frequency converters, flow meters, pressure controllers
  • Consumer Electronics: Smart wristbands, fitness equipment, portable printers, Raspberry Pi projects
3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle 3.51 Inch 340x800 MIPI Interface IPS TFT LCD Display Screen with Full Viewing Angle
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, please send us your specifications or drawing. If you don't have specifications, provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes?
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.
Can you change HTN type to STN type?
Yes, we can modify the display type according to your request.
Can you customize a new LCD module?
Yes, we provide full customization services. Please send your drawing or provide outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature specifications, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for testing and evaluation.
What is the production lead time?
Standard products in stock: 1 day after payment. Mass production for custom orders: 15-30 days. We'll notify you if we can complete earlier.
