2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Pins Number :
25Pins
Backlight Type :
LED
Pixel Arrangement :
RGB-Stripe
Viewing Angle :
12:00
Touchscreen :
Optional resistive or capacitive touch
Interface Types :
MCU (Customizable)
Connectivity :
Soldering (Customizable)
Outline Size :
60.26x42.72 mm
Description
2.4" Inch TFT LCD Display QVGA 240x320 MCU With Resistive Touch Screen
A high-performance color display touch integrated module designed for embedded systems and industrial applications, featuring IPS technology for wide viewing angles and reliable resistive touch functionality.
Product Specifications
Product 2.4 Inch TFT Display Touch Screen Resistive Touch Panel (Customizable)
Resolution 240*320 Cover Glass Dimension Customizable
Viewing Direction 12:00 Interface MCU (Customizable)
Pin Number 25 Pins (Customizable) Connection Soldering (Customizable)
Surface Luminance 150 Cd/m² (Customizable) LED Lifetime 40,000 Hours
Driver IC ST7789V Compliance REACH & RoHS Compliant

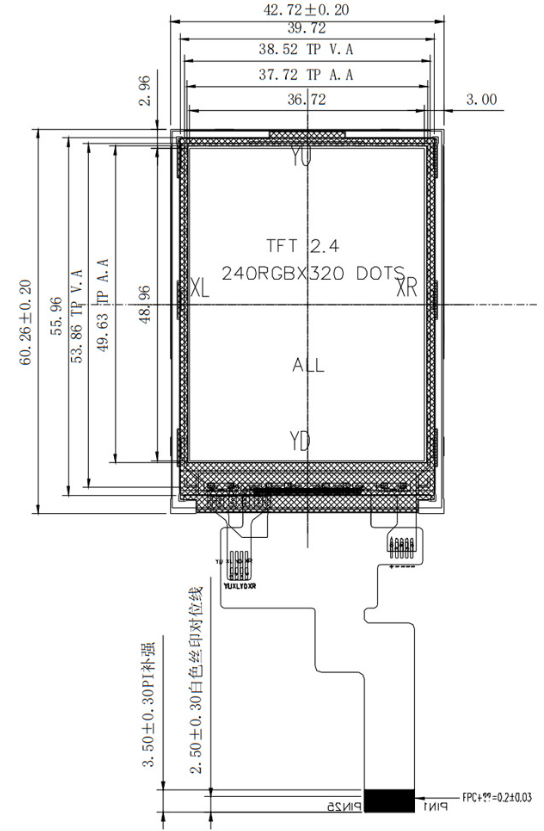

Technical Drawings
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen 2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
Product Core Features
This color display touch integrated module is engineered for embedded systems and industrial applications. It utilizes IPS (In-Plane Switching) technology to deliver full viewing angles of approximately 170° horizontally and vertically with minimal color shift when viewed from the side. The TFT active matrix drive provides a resolution of 240*320 pixels (QVGA vertically) and supports 65K/262K or 16.7 million colors.
The module includes a 4-wire resistive touch screen (typically using XPT2046 touch IC) that is pressure-triggered and operates reliably even with gloves or ordinary hard objects, offering strong environmental adaptability. Mainstream driver ICs include ST7789VI and ILI9341, with multiple interface options supporting SPI (3-wire/4-wire) and compatibility with MCU/8080 parallel interfaces. Power supply is typically 3.3V (some models with level conversion support 5V), and the white LED backlight features common brightness of 300-400 cd/m² with PWM adjustability.
Operating temperature ranges from -20℃ to 70℃, with a slim module thickness of 3-4mm and an effective display area of approximately 36.72*48.96 mm. Comprehensive driver libraries and development routines for Arduino, STM32, and Raspberry Pi ensure quick and easy integration.
Typical Applications
  • Handheld detection/measurement equipment: Portable multimeters, temperature/humidity/gas detectors, tire pressure gauges
  • Industrial control terminals: Small PLCs, frequency converters, machine tool operation panels, warehouse barcode scanners
  • Maker and open-source hardware projects: Human-machine interfaces for Raspberry Pi/STM32, smart home gateways, 3D printer control panels
  • Consumer electronics and IoT devices: Handheld POS machines, mini medical portable devices, in-vehicle small screens, smart home appliance remote controls
  • Battery-powered portable devices: Outdoor weather stations, handheld walkie-talkies with SPI interface for low power consumption
2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen 2.4 Inch TFT LCD Display with QVGA 240x320 Resolution and Resistive Touch Screen
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate this requirement. Please provide your specifications or drawing. If you don't have specifications, you can send samples, and we'll recommend suitable standard products or customize based on your requirements.
This LCD is what we want, but the size is too big. Do you have smaller sizes? The display content also needs minor changes.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module, which involves creating new tooling.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do this?
Yes, we specialize in custom LCD modules. Please provide your drawing or specify the outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions).
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing confirmation.
Can you send samples for evaluation?
Yes, sample orders are available.
What is the lead time for production?
For standard products in stock, lead time is one day after payment. For mass production of special orders, lead time is approximately 15-30 days. We'll notify you if we can complete earlier.
