Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
IDO9001 RoHS
MOQ :
1000
Price :
0.74-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Outline Size :
31.52x34.72x1.51 Mm
Screen Type :
LCD TFT
Fpc Connect :
50 Pins
Touchscreen :
Optional resistive or capacitive
Resolution :
344x476
Interface :
RGB 8bits (Customizable）
Size :
2.29 inch
Brightness :
750 cd/m²
Description
2.29 Inch TFT IPS Industrial Touch Screen Display
Product Specifications
Product2.29" Inch TFT Screen
Resolution344x476 Pixels
Driver ICST77903
Touch ScreenWithout (with PCAP Optional)
Cover Glass DimensionCustomizable
Viewing DirectionIPS (85/85/85/85)
InterfaceRGB 8bits (Customizable)
ConnectionConnector Type (OK-14GM050-04)
Pin Number50 Pins (Customizable)
Surface Luminance750 Cd/m² (nits)
Outline Dimension31.52x34.72x1.51 mm
Operating Temperature-20℃ to +70℃

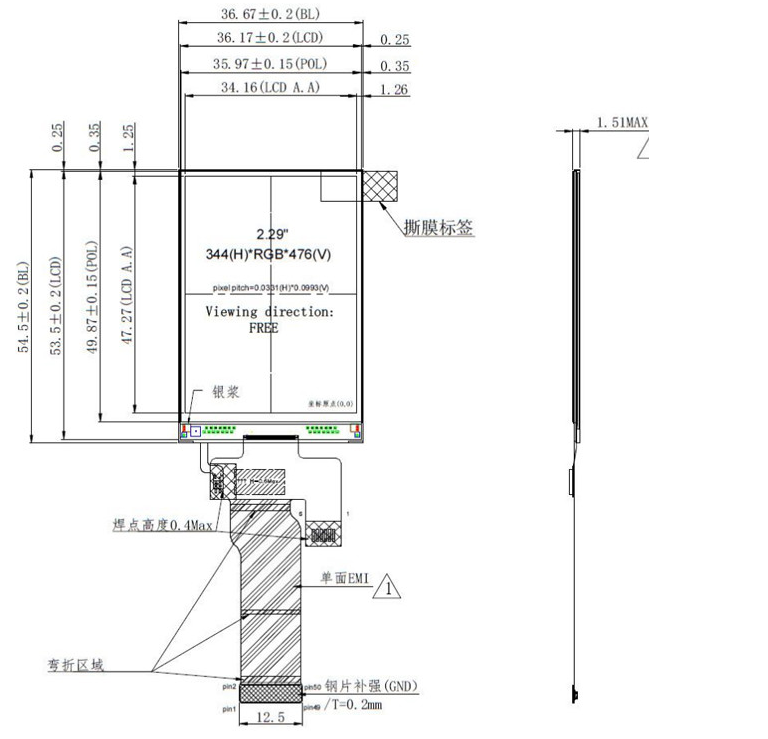

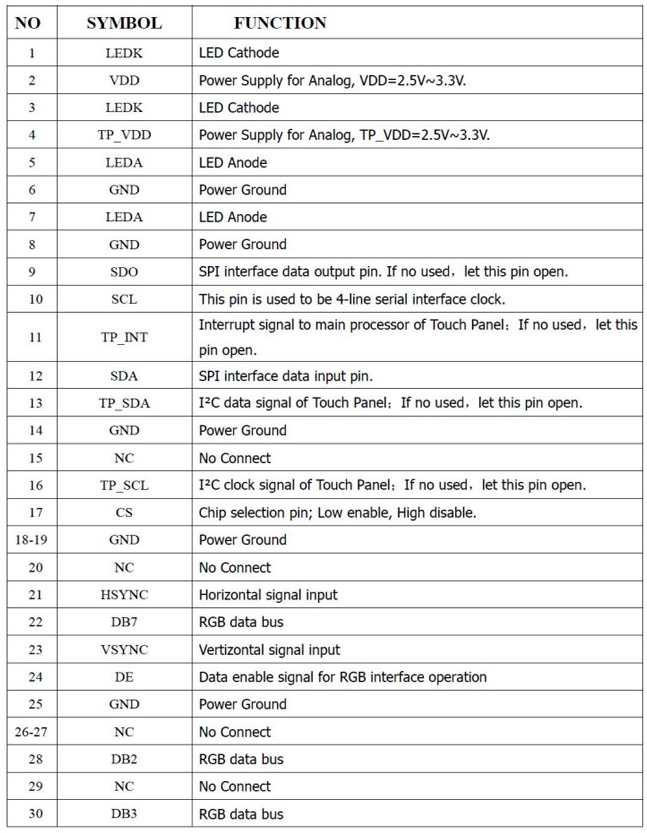

Technical Drawings
2.29 Inch TFT IPS Display with 8bits RGB Interface and 750 cd/m² Brightness for Industrial Touch Screen Applications 2.29 Inch TFT IPS Display with 8bits RGB Interface and 750 cd/m² Brightness for Industrial Touch Screen Applications

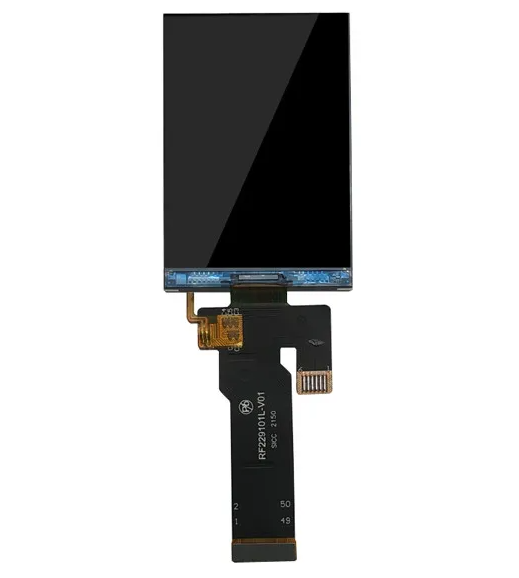

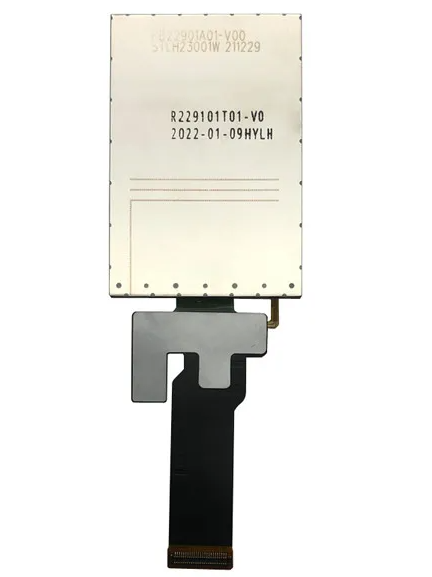

Product Overview

This compact high-quality touch display module is designed for industrial and embedded applications, utilizing IPS (In-Plane Switching) liquid crystal technology with an 8-bit RGB parallel interface. The display features a standard resolution of 344*476 pixels, capable of displaying 262K true colors with constant black mode and transmissive design.

Key Features
  • High-brightness LED backlight (700-750 cd/m², customizable to 1000 cd/m²)
  • Anti-glare/maintenance coating for outdoor and industrial environments
  • Fast 8-bit RGB parallel interface for smooth dynamic graphics
  • Industrial-grade operating temperature range: -20°C to 70°C
  • Strong electromagnetic interference resistance
  • Optional resistive (gloved operation) or capacitive (multi-touch) touch solutions
  • Ultra-thin profile at 1.51mm thickness
  • IPS technology provides 178° viewing angles with minimal color shift
  • Compatible with STM32, NXP, and Renesas industrial-grade MCUs
Typical Applications
  • Industrial control and instrumentation: PLCs, temperature/pressure controllers, frequency converters
  • Medical portable devices: Handheld monitors, blood oxygen meters, blood glucose meters
  • Internet of Things and smart home terminals: Gateways, environmental monitoring, control panels
  • Vehicle-mounted and outdoor electronics: Small displays, tire pressure monitors, handheld terminals
  • Embedded development and industrial maker projects
2.29 Inch TFT IPS Display with 8bits RGB Interface and 750 cd/m² Brightness for Industrial Touch Screen Applications 2.29 Inch TFT IPS Display with 8bits RGB Interface and 750 cd/m² Brightness for Industrial Touch Screen Applications
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If you don't have specifications, you can send samples and we'll recommend suitable options or customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes? The display content also needs minor changes.
For segment type LCD modules requiring outline size modifications or display content changes, we need to create new tooling for a custom LCD glass module.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do this?
Yes, we specialize in custom LCD modules. Please provide your drawing or specify the outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions).
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing once the drawing is confirmed.
Can you send samples for evaluation?
Yes, sample orders are available for testing and evaluation.
What is the lead time for production?
For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We'll notify you if we can complete earlier.
