15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
15.6 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
Specifications
Resolution :
1920 x R.G.B. x 1080
Brightness :
1500 cd/m²
Outline Dimension :
365.72x220.39x12.5
Contrastratio :
800:1
Displaysize :
15.6 inches
Viewing Angle :
85°/85°/85°/85° (CR≥10)
Operating Temperature :
-30°C To +85°C
Backlight Type :
LED
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
15.6" 1500nits FHD Industrial Sunlight Readable TFT LCD Display
High-performance 15.6-inch industrial TFT LCD display featuring 1500 nits ultra-high brightness, wide temperature operation, and LVDS interface for superior sunlight readability in demanding environments.
Technical Specifications
ItemSpecificationUnit
Screen Size15.6" real diagonal
Bezel Opening365.72x220.39x12.5mm
Pixel Number1920 x R.G.B. x 1080pixel
Pixel Pitch0.17925 (H) x 0.17925 (V)mm
Display Area344.16x193.59mm
Display Colors16.7Mcolor
Transmissive ModeNormally Black-
Surface TreatmentAG type, 3H hard coating-
Power ConsumptionTotal cell
TC8100k
NTSC72 (Typ)%

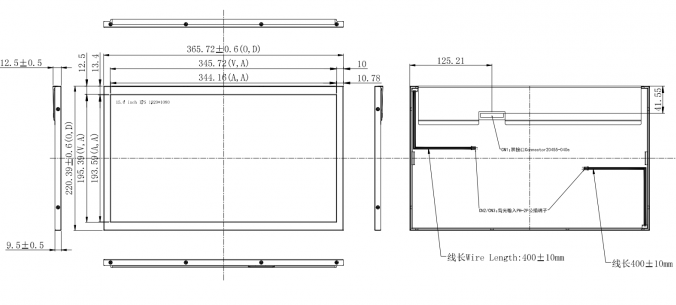

15.6
Interface Pin Definition
PinNameDescription
1NCNot connection, this pin should be open
2NCNot connection, this pin should be open
3NCNot connection, this pin should be open
4NCNot connection, this pin should be open
5NCNot connection, this pin should be open
6NCNot connection, this pin should be open
7NCNot connection, this pin should be open
8NCNot connection, this pin should be open
9NCNot connection, this pin should be open
10NCNot connection, this pin should be open
11LCD_VCCLCD logic and driver power 3.3V
12LCD_VCCLCD logic and driver power 3.3V
13LCD_VCCLCD logic and driver power 3.3V
14NCNot connection, this pin should be open
15NCNot connection, this pin should be open
16NCNot connection, this pin should be open
17REV_SCANLow -> Normal Mode. High -> Horizontal & Vertical Reverse Scan
18RXO0-Negative LVDS differential data input. Channel O0 (odd)
19RXO0+Positive LVDS differential data input. Channel O0 (odd)
20RXO1-Negative LVDS differential data input. Channel O1 (odd)
21RXO1+Positive LVDS differential data input. Channel O1 (odd)
22RXO2-Negative LVDS differential data input. Channel O2 (odd)
23RXO2+Positive LVDS differential data input. Channel O2 (odd)
24LCD GNDLCD logic and driver ground
25RXOC-Negative LVDS differential clock input. (odd)
26RXOC+Positive LVDS differential clock input. (odd)
27LCD GNDLCD logic and driver ground
28RXO3-Negative LVDS differential data input. Channel O3(odd)
29RXO3+Positive LVDS differential data input. Channel O3 (odd)
30RXE0-Negative LVDS differential data input. Channel E0 (even)
31RXE0+Positive LVDS differential data input. Channel E0 (even)
32RXE1-Negative LVDS differential data input. Channel E1 (even)
33RXE1+Positive LVDS differential data input. Channel E1 (even)
34LCD GNDLCD logic and driver ground
35RXE2-Negative LVDS differential data input. Channel E2 (even)
36RXE2+Positive LVDS differential data input. Channel E2 (even)
37RXEC-Negative LVDS differential clock input. (even)
38RXEC+Positive LVDS differential clock input. (even)
39RXE3-Negative LVDS differential data input. Channel E3 (even)
40RXE3+Positive LVDS differential data input. Channel E3 (even)
Product Overview
Core Features
  • Ultra-High Brightness: 1500 nits brightness with anti-glare 3H hard coating ensures perfect readability in direct sunlight
  • Wide Temperature Range: Operating temperature -30℃ to +85℃, storage temperature -40℃ to +90℃
  • Industrial LVDS Interface: 40-pin dual-channel configuration with stable, interference-resistant signal transmission
  • IPS Technology: 178°/178° wide viewing angle with no color deviation or brightness attenuation
  • High Color Performance: 16.7M true colors with 72% NTSC color gamut and 800:1 contrast ratio
  • Robust Construction: Metal casing reinforcement for vibration and impact resistance
  • Long Lifespan: WLED backlight with over 50,000 hours operational life
Primary Applications
  • Industrial Automation: CNC machines, robot control cabinets, HMI interfaces, mining and construction machinery
  • Transportation: Vehicle central control consoles, bus/rail transit information displays, marine navigation
  • Outdoor Terminals: Digital signage, highway toll booths, security monitoring, smart grid interfaces
  • Medical Equipment: Ambulance monitors, field emergency stations, portable medical devices
  • Agriculture & Environmental: Agricultural machinery displays, weather station terminals, outdoor monitoring systems
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module. We can create new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing or provide outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, drive conditions).
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing when you confirm the drawing.
Can you send us samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of special orders: approximately 15-30 days. We'll inform you if we can complete earlier.
