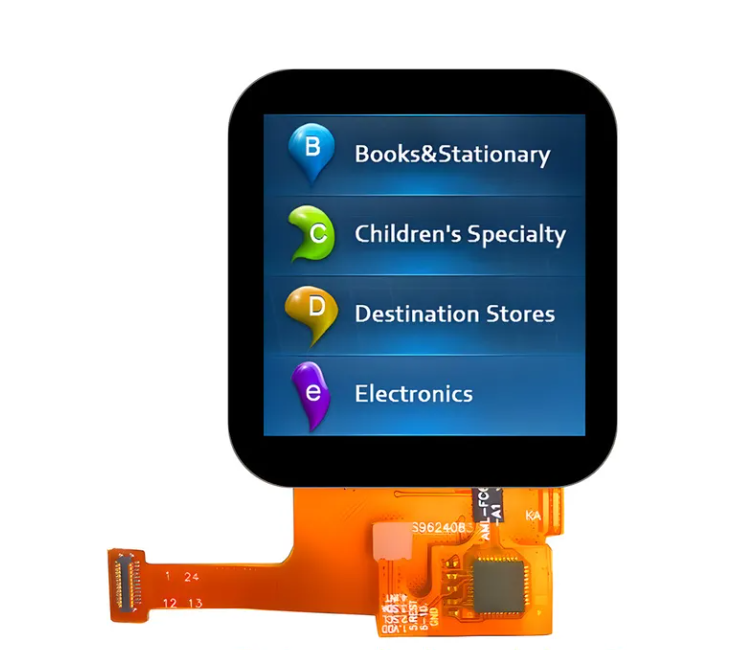

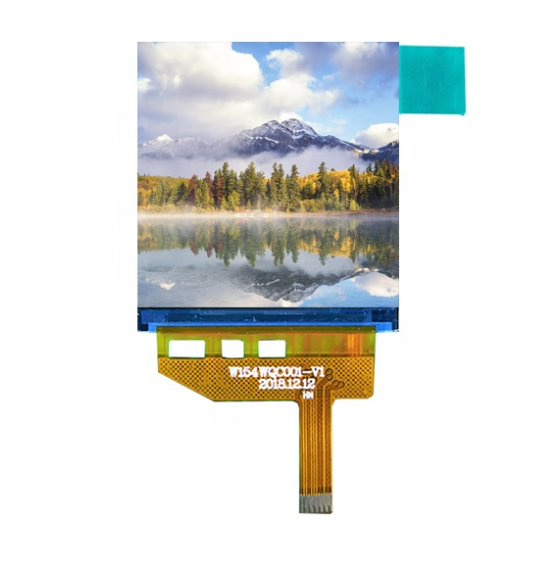

1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Luminance :
300 cd/m2
Display Type :
TFT LCD
Color Depth :
16.7 million colors
Screentype :
LCD TFT
Screen Type :
TFT
Refresh Rate :
60 Hz
Interface Types :
MIPI
Backlight :
White LED
Description
1.54 Inch 320x320 Square TFT Display with Capacitive Touchscreen and MIPI Interface
A compact, high-resolution square TFT display module featuring IPS technology, capacitive touchscreen, and MIPI interface, designed for wearable devices and portable electronics.
Technical Specifications
Product 1.54 Inch PCAP TFT Display
Resolution 320x320
Touch Screen Capacitive Touch Screen
Viewing Direction IPS All Viewing Angles
Pin Number 12 Pins
Driver IC ST7796S
Connection Connector (OK-14GM012-04)
Interface MIPI
Surface Luminance 300 Cd/m² (nits)
LED Lifetime 40,000 Hours
Operating Temperature -20 to 70 °C
Storage Temperature -30 to 80 °C
Compliance RoHS & REACH Compliant
Certificate ISO9001:2015 / ISO14001:2015
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
Product Overview

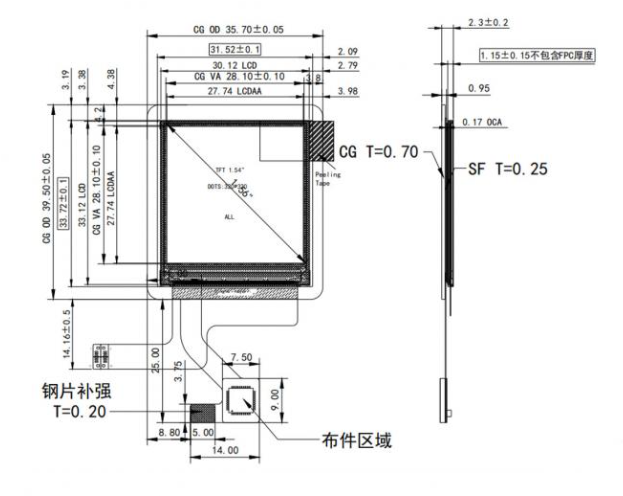

This compact full-color touch display module is specifically engineered for wearable devices and portable smart electronics. Featuring IPS hard screen technology with a square display area of 27.74*27.74mm, it delivers high pixel density and detailed imagery.
Key Features
  • MIPI DSI high-speed interface for minimal wiring and low power consumption
  • IPS panel provides 85°/85°/85°/85° viewing angles with consistent color
  • Capacitive touch with I²C interface supporting single-point/multi-point touch and gesture recognition
  • High sensitivity touch layer supports thin glove operation with fingerprint prevention coating
  • Compact module thickness under 3mm with WLED backlight
  • Wide operating temperature range suitable for outdoor and industrial environments
  • Compatible with mainstream processors including STM32, RK, and MTK
Typical Applications
  • Smart wearable devices: watches, bracelets, health monitors
  • Portable medical equipment: blood oxygen meters, glucose testers, ECG monitors
  • IoT terminals and handheld controllers
  • Maker projects and development boards
  • Consumer electronics: Bluetooth speakers, smart earphone cases, portable chargers
1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface 1.54 Inch 320x320 Resolution TFT Display with Capacitive Touchscreen and MIPI Interface
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed requirements or samples, and we will recommend suitable standard products or create a custom solution.
This LCD is what we need, but the size is too large. Do you have smaller options?
For segment type LCD modules requiring size or display content modifications, we can create new tooling to produce custom glass modules according to your specifications.
Can you change this HTN type display to STN type?
Yes, we can modify the display type according to your requirements.
Do you offer custom LCD module development?
Yes, we provide full custom LCD module services. Please share your specifications including outline size, display parameters, connector type, temperature requirements, and operating conditions.
What is the tooling lead time?
Tooling typically requires 15-25 days after drawing confirmation and payment. We will provide exact timelines upon project confirmation.
Can you provide samples for evaluation?
Yes, sample orders are available for quality verification and testing.
What is your production lead time?
Standard products in stock ship within one day of payment. Mass production of custom orders typically requires 15-30 days, with expedited options when available.
