This high-resolution, full-view, high-speed interface TFT liquid crystal display module is specially designed for industrial intelligent equipment. It features an IPS wide-view panel, 480*800 vertical screen resolution, and MIPI DSI high-speed interface, balancing clarity, color accuracy, stability, and adaptability to industrial environments.

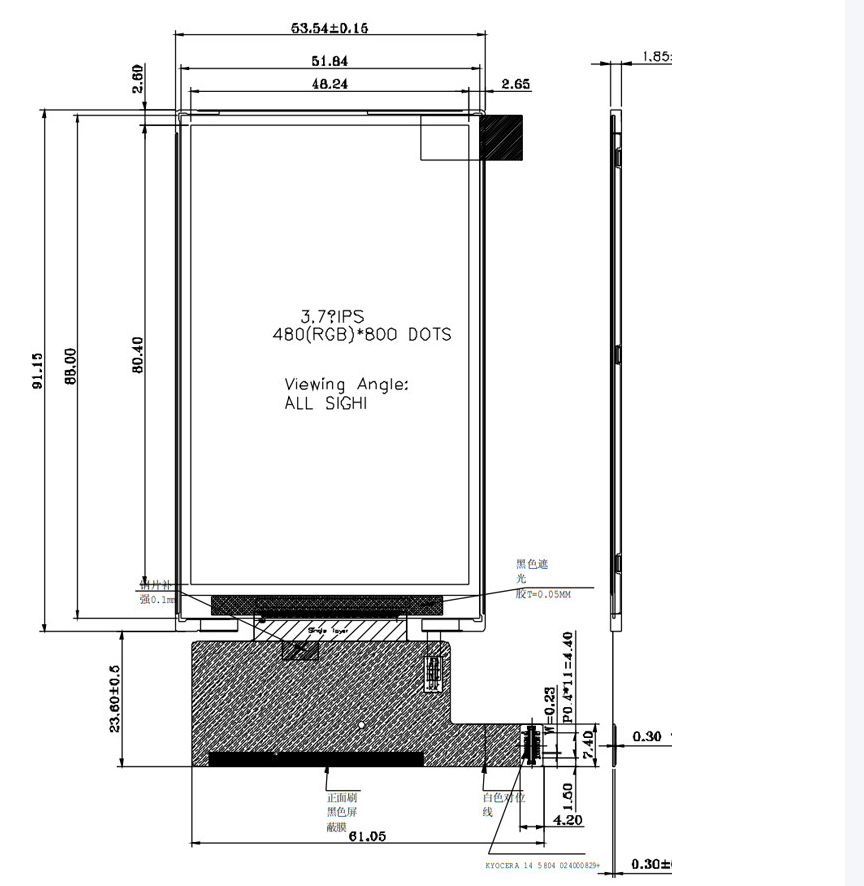

• Size and Resolution: 3.7 inches diagonal, 480*800 pixels vertical screen with fine dot pitch, suitable for displaying multiple lines of data, menus, and charts
• Display Technology: IPS TFT-LCD with full view capability (left/right/top/bottom ≥ 80°), uniform color reproduction, no color bias, and better readability in strong light than ordinary TN screens
• Interface: MIPI DSI (2/4 lane) high-speed serial interface with strong anti-interference, suitable for industrial motherboards and embedded platforms
• Driver IC: HX8369, ST7701S with MIPI protocol support, mature drivers, and excellent compatibility
• Brightness and Contrast: Typical 300-600 cd/m² (customizable to 1000+ nits); contrast ratio 800:1-1000:1 with deep black levels and sharp text display
• Operating Temperature: Industrial grade -20℃ to +70℃, storage -30℃ to +80℃, suitable for harsh environments including workshops, outdoors, and vehicles
• Power Supply: 3.0-3.3V single power supply with low power consumption, compatible with batteries and industrial power supply systems
• Touch Options: Optional capacitive touch screen (CTP) with multi-touch support for industrial HMI and handheld terminals
• Thickness: Module thickness typically 2.5-4mm, thin and lightweight design for embedded installation

• MIPI High-speed Stability: Fewer wiring requirements compared to RGB/8080 parallel interfaces, strong anti-interference capability, high transmission rates, and reliable performance in long-distance and complex electromagnetic environments
• IPS Full View: Equipment installation angle flexibility with clear visibility from all sides, suitable for industrial cabinets, handheld devices, and vehicle displays
• 480*800 High Resolution: Delicate display quality on 3.7 inches, capable of handling complex UI, multiple parameter lists, real-time curves, and QR codes/barcodes
• Wide Temperature and Long Life: Industrial-grade materials with extended backlight and panel lifespan, suitable for 7*24-hour operation in industrial control equipment
• Low EMI and Easy Integration: MIPI differential signaling minimizes EMI; FPC flexible ribbon cable enables flexible installation in compact equipment structures

• Industrial HMI / Handheld Terminal: Portable programmers, on-site detectors, data collectors, intelligent meter displays
• Industrial Control and Automation: PLC human-machine interfaces, frequency converter/servo panels, robot teaching devices, small industrial computer secondary screens
• Medical and Health Equipment: Portable monitors, diagnostic instruments, rehabilitation equipment, home medical terminals
• Internet of Things and Smart Gateways: Industrial gateways, edge computing boxes, environmental monitoring stations, energy management terminals
• Vehicle and Construction Machinery: Forklift/construction vehicle dashboards, vehicle monitoring screens, agricultural machinery intelligent terminals, special vehicle displays
• Security and Access Control: Facial recognition terminals, access control integrated machines, video intercoms, small monitoring host screens
• Instrumentation: Oscilloscopes, spectrum analyzers, signal sources, laboratory analyzers, portable measurement equipment
