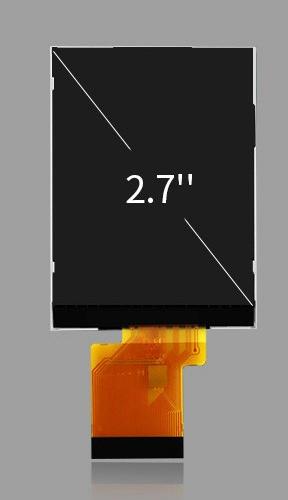

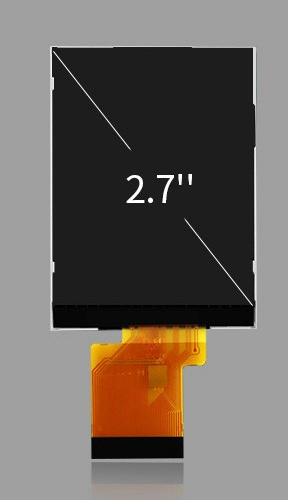

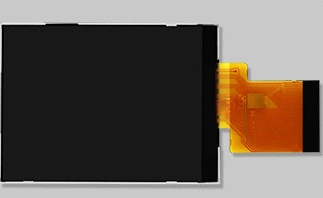

960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display
960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display
960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display
960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display
Specifications
Luminance :
230 cd/m2
Backlight Technology :
LED
Operating Temperature :
-20~+70℃
Backlight :
White LED
Resolution :
960*240
Connectivity :
RGB
Display Type :
TFT
Pins Number :
40PINS
Place of Origin :
china
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display

Product Details

Product Name: TFT Display
Size (inch): 2.7
Resolution: 960*240
Brightness 280
Interface: RGB 8bit
Driver Ic: ILI8191

Product Description

Screen Size 2.7 inch
Number of Pixel 960RGB(H)x240(V)
Display area 40.50(H)x54.00(V)mm
Pixel pitch 0.05625(H)x0.16875(V)mm
Pins 40 pins
Outline Dimension 46.20x63.10x2.38mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 6 0'CLOCK
Display Color 262K
Luminance(cd/m2) 230 nit
Contrast Ratio 600:01:00
Interface RGB 8bit
Back-light LED Side-light type
Drive IC ILI8961
Operation Temperature -30~80℃
Storage Temperature -30~80℃

960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display

960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display



960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display

960x240 Pixels 2.7 Inch Lcd Display Colors 262K Small TFT Display
