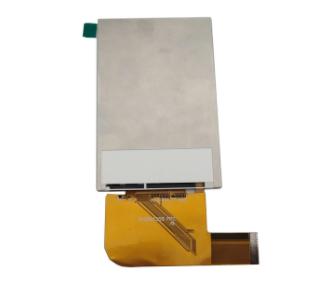

3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
Specifications
Colors :
262K
Screen Size :
3.5inches
Touchscreen :
No
Lcd Type :
IPS
Module Size :
54.48(H)×84.71(W)×2.10(T)mm
Backlight Technology :
LED
Dimensions :
14.8 x 9.3 x 0.9 inches
Display Mode :
TFT/Transmissive
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

3.5 Inch TFT LCD screen 320x480 Resolution For Medical Equipment

Product Description

Product Specifications

Type TFT
Display Size 3.5 inch
Supplier Type OEM/ODM
Backlight Type LED
Resolution 320×480
Operating Temperature -10℃~60℃
Display Type TFT
Screen Size 3.5 INCH
Driver IC ILI9488


Detailed Technical Parameters

LCD Size 3.5 inch
Resolution 320×480
Display Mode TFT/Transmissive
Module Size 54.48(H)×84.71(W)×2.10(T)mm
Panel Active Area 48.96(H)×73.44(W) mm
Light Source 6CHIP-WHITE LED
General Tolerance ±2.0
Operating Temperature -10~+60℃
Storage Temperature -20~+70℃

3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment

3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment

3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment

3.5-inch TFT LCD screen with a resolution of 320x480.

There are many medical devices with this screen size and resolutionhere are some common types:


Portable ultrasound equipment: For instance, a certain domestic ultrasound device adopts a 3.5-inch screen with this resolution, supporting dynamic grayscale imaging and M-mode echocardiography analysis. Doctors can observe vascular lesions at a resolution of 0.3mm in real time, and the diagnostic accuracy rate has increased to 97.5%.


Blood glucose monitor: It can display the current blood glucose level in real time, and also show historical records, trend charts, etc. Some even support Bluetooth data synchronization to health APPs, making it convenient for users to manage their blood glucose data.


Electronic sphygmomanometer: It can visually display the blood pressure measurement results, allowing users to clearly understand their blood pressure condition.


Endoscope control terminal: In examinations such as ear, nose, and throat, this resolution screen can display high-definition images and the angle of surgical instruments, with a positioning accuracy of 0.2mm, which helps doctors perform operations more accurately and shorten the operation time.


Blood oxygen saturation monitor: It can monitor blood oxygen data in real time, providing important health indicator information for medical staff and patients.
Portable electrocardiograph: It can clearly display the electrocardiogram waveform, helping doctors analyze and diagnose the patient's heart condition.
