3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface
3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface
3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface
3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface
Specifications
Interface :
RGB/MCU/SPI
Touch Screen :
Without Touch Screen ( Customizable )
Display Technology :
TFT LCD
Lcd Type :
TFT
Surface Luminance :
300 Cd/m2(nits)
Backlight Technology :
LED
Viewing Direction :
All Viewing Angle(80/80/80/80)
Panel Type :
TFT
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description

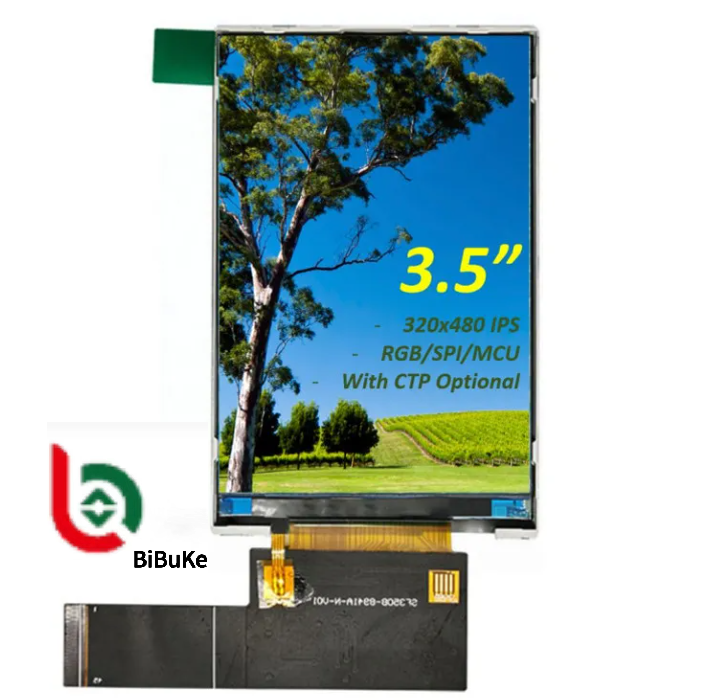

3.5" Inch TFT LCD Display Module 320x480 HVGA IPS Full Viewing Angle
High-performance 3.5-inch TFT LCD display module featuring 320x480 HVGA resolution with IPS technology for full viewing angles. Supports RGB, MCU, and SPI interfaces for versatile applications.
Product Specifications
Product 3.5" Inch TFT LCD Display Module
Touch Screen Resistive Touch Panel (Optional)
Resolution 320x480
Cover Glass Dimension Customizable
Viewing Direction All Viewing Angle (80/80/80/80)
Interface RGB/MCU/SPI

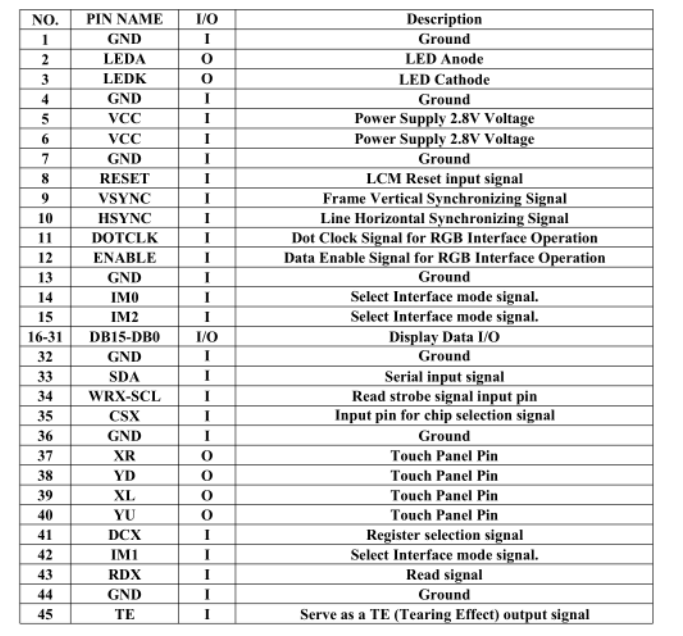

Pin Number 45 Pins
Connection FPC Plugging
Surface Luminance 300 Cd/m² (nits)
LED Lifetime 40,000 Hours
Product Features
  • Outstanding Display Performance: 320x480 HVGA resolution with IPS full-view technology delivers 85°/85°/85°/85° viewing angles with true colors and clear images from any perspective
  • High-Quality Imaging: Utilizes advanced driver ICs (ILI9488 or ST7796S) supporting 65K colors with 700:1 contrast ratio and up to 650 nits brightness
  • Flexible Interface Options: Integrated RGB, MCU, and SPI interfaces for diverse control and transmission requirements
  • Compact Design: Dimensions 53-57mm × 82-85mm with 3-6mm thickness for easy integration into compact devices
  • Customization Support: Options for resistive/capacitive touch screens, brightness adjustment, interface modification, and shape customization
  • Environmental Compliance: ROHS and REACH certified with operating temperature range of -20℃ to 70℃
Application Areas
  • Industrial Control: Operation screens for automated production lines, industrial control panels, elevator controls, and detection instruments
  • Medical Equipment: Portable diagnostic instruments, life sign monitoring devices, and medical displays
  • Consumer Electronics: Handheld game consoles, portable detectors, POS machines, and Arduino projects

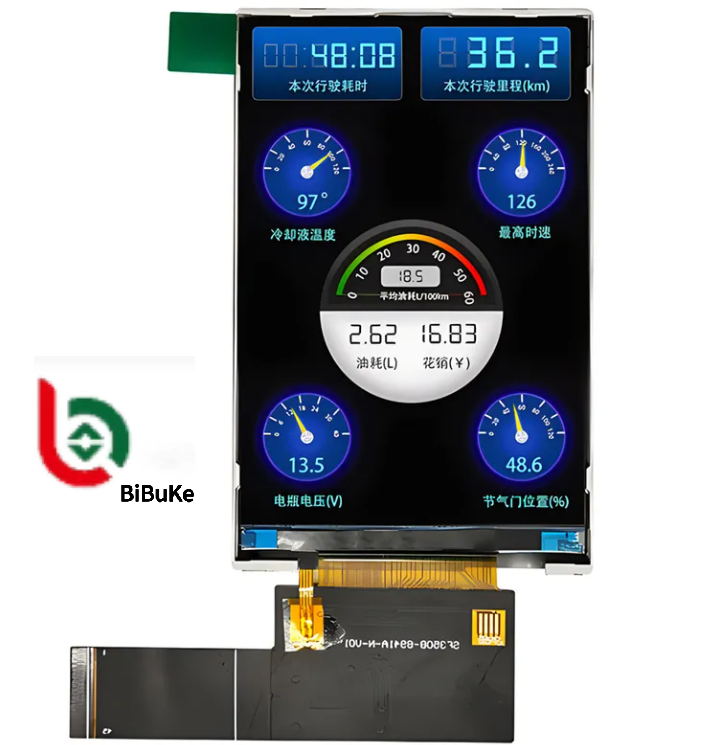

  • Smart Transportation & Home: Electric bicycle instrument panels, in-vehicle navigation, and smart home appliance controls

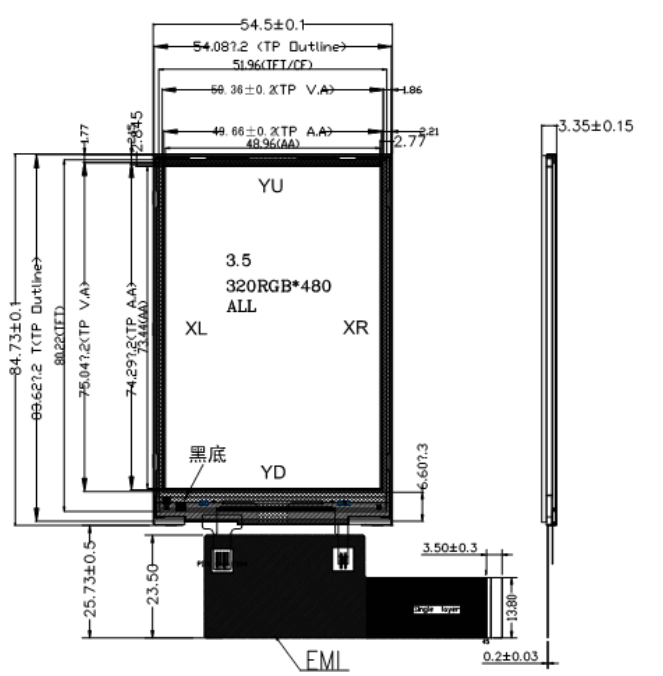

Product Drawings
3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface 3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface 3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface 3.5 Inch TFT LCD Display Module with 320x480 HVGA Resolution IPS Full Viewing Angle and RGB/MCU/SPI Interface
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If you don't have specifications, we can recommend suitable standard products or create custom solutions based on your requirements.
This LCD is what we want, but the size is too big. Do you have smaller sizes? Also, we need to modify the display content slightly.
For segment type LCD modules requiring size or content modifications, we can create new tooling to produce custom glass modules according to your specifications.
This LCD display is HTN type, but I want STN type. Can you make this change?
Absolutely. We can modify the display type to STN according to your specific requirements.
I want to customize a new LCD module. Can you do this?
Yes, we specialize in custom LCD modules. Please provide your drawing or specify the outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature specifications, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically, tooling requires 15-25 days after drawing confirmation and tooling charge payment. We will provide exact timelines upon drawing approval.
Can you send us samples for evaluation?
Yes, sample orders are available for product testing and validation.
What is the lead time for production?
For standard products in stock, lead time is one day after payment. For mass production of custom items, lead time is typically 15-30 days. We will notify you promptly if we can complete orders ahead of schedule.
