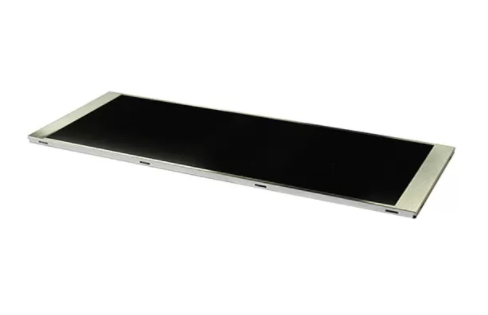

7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
Specifications
Backlight Technology :
LED
Touch Screen :
with
Backlight Type :
LED
Module Size (w*h*t) :
70.6*203.48*4.6
Size :
7.84 inches
Operating Temperature :
-20~+70℃
Backlight :
White LED
Display Technology :
LCD
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
0.7-7USD
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Description
7.84 Inch 400 X 1280 Resolution LCD TFT Touch Screen Display
Product Specifications
Resolution 1024 X 600
Display Mode Transimissive/ Normally Black
Display Type TFT
Brightness 550-850
Interface LVDS
Touch Panel Customized
Technical Details
Item Contents Unit
Lcd Type TFT/Transmissive
Module Size (w*h*t) 70.6*203.48*4.6 Mm
Active Size (w*h) 59.4*190.08 Mm
Number Of Dots 400(RGB)x 1280
Interface Type RGB
Top Polarizer Type Anti-Glare
Recommend Viewing Direction All
Backlight Type 24-Dies White Led
7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
7.84 Inch 400 X 1280 Resolution LCD TFT Screen with LVDS Interface and Touch Screen Display
Basic Parameters
  • Screen size: Diagonal size of 7.84 inches with appearance dimensions varying by model
  • Resolution: 400×1280 with RGB stripe pixel arrangement for clear display of long content or simple graphics
  • Display technology: TFT (thin film transistor) technology with some models featuring IPS panels for wide viewing angles
  • Touch screen type: Customizable capacitive touch screens with glove touch and multi-touch capabilities
Performance Characteristics
  • Brightness and Contrast: Adjustable for optimal visibility in various lighting conditions
  • Color Performance: 16.7M color display with high color reproduction accuracy
  • Operating Temperature: -20℃ to 70℃ operating range with -30℃ to 80℃ storage range
Application Scenarios
  • Industrial equipment: Control panels, instruments, and data displays
  • Automotive field: Instrument panels and in-vehicle displays for speed, navigation, and system information
  • Smart home: Appliance interfaces and control panels for home automation systems
Our Services
1. Free repair within one year after shipment
2. Replacement within 30 days for product defects
3. Custom logo printing and model number labeling
4. Competitive shipping rates through established logistics partnerships
5. Professional technical support and responsive after-sales service
6. Rigorous quality control with pre-shipment testing by engineers
7. 24-hour response guarantee for all customer inquiries
8. Custom LCD display solutions based on your specifications or drawings
