8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
Specifications
Type :
TFT
Display Size :
8.4inch
Supplier Type :
Original Brand
Place of Origin :
China
Brand Name :
NEC
Panel Type :
a-Si TFT-LCD, LCM
Resolution :
640(RGB)x480, VGA 95PPI
Module Outsize(mm) :
200(H)x152(V) x11(D) mm
Viewing Angle :
80/80/80/60 (Typ.)(CR 10)
Brightness :
450cd/m2
Interface :
CMOS (1 ch, 6-bit) 31 pins Connector
Touch panel :
Withtout
Application :
Industrial Equipment
MPQ :
10pcs
Warranty :
12 Months
Price :
$135/pieces 1-99 pieces
Description
Products Description
Panel Model
NL6448BC26-09
Panel Brand
NEC
Size (inch )
8.4inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA 95PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
200(W)×152(H) ×11(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
170.88(W)×128.16(H) mm
Response Time
6/19 (Typ.)(Tr/Td)
Display Colors
262K 40% NTSC
Light Source
2 pcs CCFL , Without Driver
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
450 cd/m² (Typ.)
Power Supply
3.3/5.0V (Typ.)(VCC)
Contrast Ratio
600:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~70°C
Vibration Level:
2.0G (19.6 m/s²)
LCM Interface Type
CMOS (1 ch, 6-bit) , 31 pins Connector
FPC connector
HRS, DF9C-31P-1V, Pitch 1.0mm

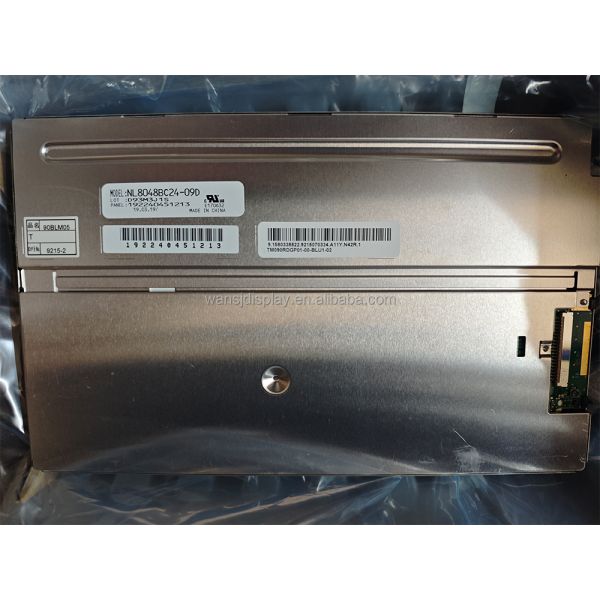

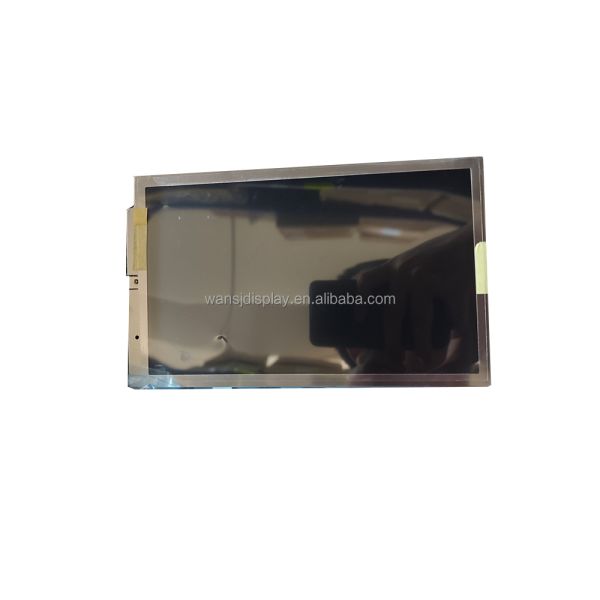

Details Images
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
Company Profile
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
8.4 Inch Industrial Equipment VGA a-Si TFT-LCD Display Screen with 450nits CMOS Interface 640x480 LCM panel Modules
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
