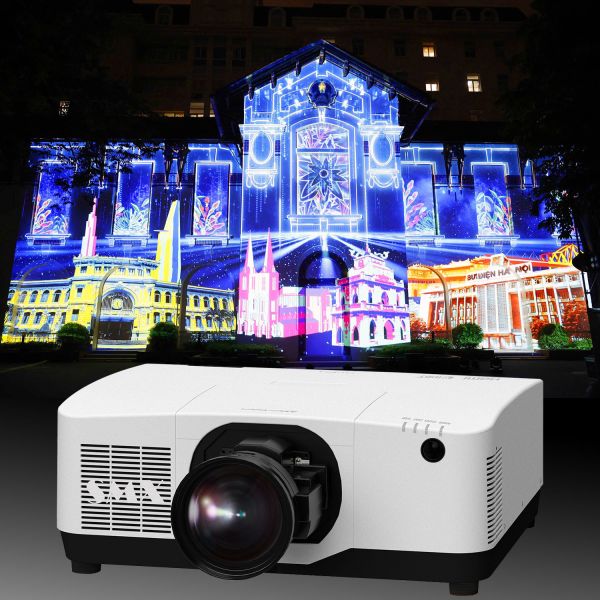

Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Specifications
Resolution :
WUXGA 1920x1200
Lens :
Motorized Zoom, Focus
Keystone Correction :
Yes
Light Source :
Laser
Installation :
360 Degree
Application :
Outdoor, 3D Mapping
Lenses :
Motorized
Focus :
Motorized
Brightness :
20,000 Lumen
Brand Name :
SMX
Model Number :
MX-X20000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union
Supply Ability :
12000pcs/Monthly
Delivery Time :
7-10 days
Packaging Details :
Carton/ Flight Case
Len Shift :
Yes
Product Name :
Laser Mapping Projector
Description
Outdoor Large Venue Projector with Motorized Lenses - 3D Mapping Capable


Key Features
  • 20,000 Lumen brightness for vivid outdoor projections
  • WUXGA resolution (1920×1200) for crisp, detailed images
  • Long-life laser light source (20,000-30,000 hours)
  • Motorized zoom and focus with lens shift capability
  • 360-degree installation flexibility
  • Advanced geometric correction and edge blending
  • Professional-grade connectivity options

Product Overview

The SMX MX-X20000U is a professional-grade laser projector delivering exceptional brightness and image quality for large venues and demanding applications. Its 20,000-lumen output and WUXGA resolution make it ideal for auditoriums, concert halls, museums, and spectacular 3D projection mapping events.

Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser

Technical Specifications

Model Number MX-X20000U
Brightness 20,000 Lumen
Display Technology 3x1.0" Liquid Crystal Display
Native Resolution WUXGA (1920 × 1200)
Laser Lifetime 20,000 hours (Normal) / 30,000 hours (ECO)
Contrast Ratio 3,000,000:1
Projection Lens (Standard) MX-EG12ZLM (Motorized Zoom/Focus)
Throw Ratio (16:10) 1.24-2.01 @100inch
Lens Shift Vertical: ±65% / Horizontal: ±25%
Keystone Correction Vertical: ±30° / Horizontal: ±30°
Connectivity HDMI, VGA, DVI-D, HDBaseT, USB, RJ45, DMX512, RS232C


Available Lenses

Model Type Throw Ratio Zoom Ratio Lens Shift
MX-EG05ZLM Short Throw 3 0.53-0.65 1.23 V:±50% / H:±20%
MX-EG06ZLM Short Throw 2 0.65-0.87 1.34 V:±55% / H:±20%
MX-EG08ZLM Short Throw 1 0.86-1.25 1.45 V:±65% / H:±25%
MX-EG12ZLM Standard 1.24-2.01 1.62 V:±65% / H:±25%
MX-EG20ZL Long Throw 1 1.98-3.95 1.99 V:±65% / H:±25%
OL-EG39ZLM Long Throw 2 3.95-7.50 1.90 V:±65% / H:±25%


More Details

Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser
Send your message to this supplier
Send Now

Easy Installation 3D Mapping Large Venue Projector Motorized Zoom Focus WUXGA Laser

Ask Latest Price
Watch Video
Product Detail
Resolution :
WUXGA 1920x1200
Lens :
Motorized Zoom, Focus
Keystone Correction :
Yes
Light Source :
Laser
Installation :
360 Degree
Application :
Outdoor, 3D Mapping
