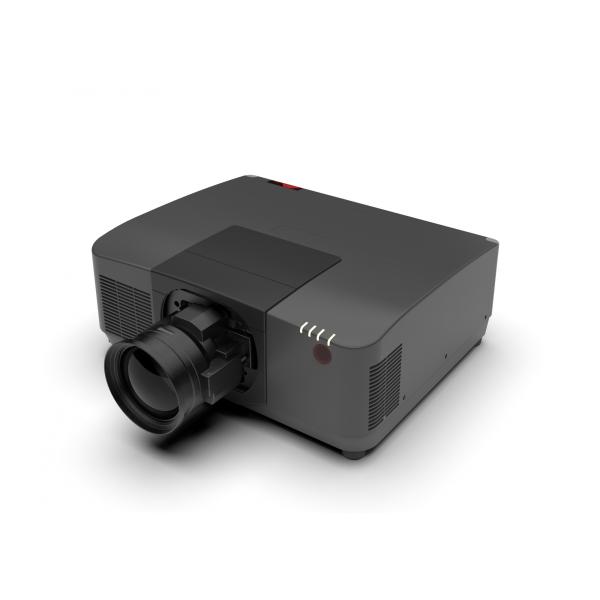

LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
Specifications
Resolution :
WUXGA
Contrast :
5,000,000:1
Application :
3D Mapping, Large Venue
Brightness :
20,000 Lumen
Lens :
Motorized
Len Shift :
V：±65%， H: ±25%
360° Projection :
Yes
Product Name :
3LCD Laser Projector
LAN Control :
Yes
Light Source :
Laser
Brand Name :
SMX
Model Number :
MX-X20000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union
Supply Ability :
12000pcs/Monthly
Delivery Time :
5-15days
Packaging Details :
Carton/ Flight
Installation :
360 Degree Projection
Description
High Brightness Large Venue Projector - 20000 Lumen WUXGA Laser Projector

Experience stunning visual performance with this 20,000-lumen WUXGA laser projector, designed for professional 3D mapping, large-scale projections, and immersive experiences. Engineered for exceptional brightness, superior image clarity, and long-lasting performance, this projector is the ideal solution for outdoor projections, stage performances, exhibitions, and architectural mapping.

Key Features
  • Ultra-High Brightness: 20,000 lumens ensure vivid, sharp images even in bright environments
  • WUXGA Resolution (1920 × 1200): Delivers crisp, detailed visuals with excellent color accuracy
  • Laser Light Source: Provides up to 20,000+ hours of maintenance-free operation
  • Advanced 3D Mapping Compatibility: Supports projection mapping for dynamic and immersive displays
  • High Contrast Ratio: Deep blacks and vibrant colors for enhanced image depth and realism
  • Flexible Installation: 360-degree projection capabilities for creative positioning
  • Edge Blending & Warping: Seamless multi-projector setups for large-scale projections
  • Multiple Connectivity Options: HDMI, HDBaseT, and LAN for easy integration
  • Dust-Resistant Design: Engineered for reliable performance in challenging environments

LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens

LAN Control Easy to Control
LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens

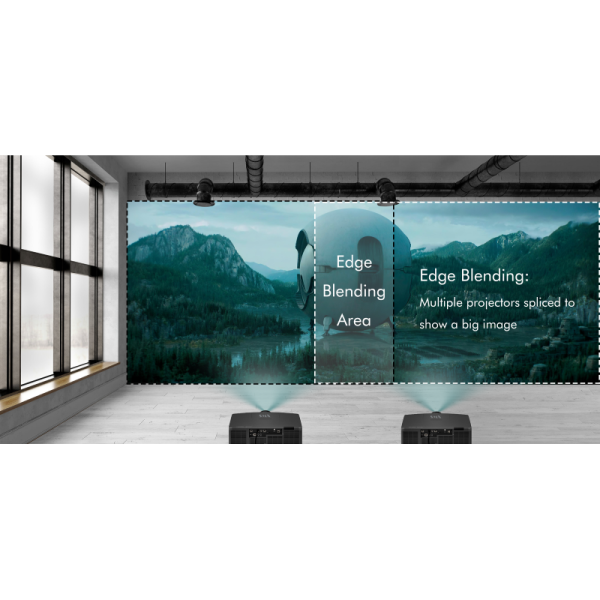

Edge Blending for Large Venue Projection

LAN Control 20000 Lumen WUXGA Laser Projector 360 Degree Projection Motorized Lens
Main Specifications
Model# MX-X20000U
Brightness
Brightness (Lumen) 20,000
Overall Specifications
Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser Lifetime - Normal Mode 20,000 hours
Laser Lifetime - ECO Mode 30,000 hours
Projection Lens (Standard)
Lens Model MX-EG12ZLM
Zoom/Focus Motorized
Throw Ratio (16:10) 1.24-2.01 @100inch
F 1.8-2.24
f 27.7-44.3mm
Zoom Ratio 1.62
Screen Size 60-500 inch
Lens Shift Vertical ±65%
Lens Shift Horizontal ±25%
Contrast Ratio (Minimum) 3,000,000:1
Noise Level (dB) Full: 46db / Normal: 44db / Eco1: 43db / Eco2: 42db
Uniformity Typical: 90%
Aspect Ratio Native: 16:10, Compatible: 4:3/16:9/normal/16:6
Terminal I/O Ports
Input Ports VGA (1), HDMI 1.4 IN (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), Audio in (1), DMX512 (1)
Output Ports HDMI 1.4 OUT (1), Audio out (1)
Control Ports RS232C Input (1), RS232C Output (1), Wired Remote IN (1), Wired Remote OUT (1)
Other Functions
Keystone Correction Vertical: ±30°, Horizontal: ±30°
Additional Corrections Pincushion/Barrel Correction, 6 Corner Geometry correction, Grid ImageTune correction
OSD Languages 26 languages, including English, German, French, Italian, Spanish, Chinese, Japanese, Korean, and more
LAN Control RoomView (Crestron), AMX Discovery, PJ Link
Display Resolution Support VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
360° Projection Yes
Edge Blending Yes
Adjustable Brightness Yes
Dimensions & Weight
Product Size (WxHxD mm) 599 × 240.2 × 493.8mm (not including lens)
Net Weight (KG) 28.9Kg (not including lens)
Accessories
Manual Languages Chinese, English
Standard Accessories Power cord (3m, Black), Remote control
Lens Options for Different Projection Distances
Model# MX-EG05ZLM MX-EG06ZLM MX-EG08ZLM MX-EG12ZLM MX-EG20ZL OL-EG39ZLM
Image Circle Φ34.6 Φ35.5 Φ37.9 Φ37.9 Φ37.9 Φ37.9
Zoom/Focus Motorized Motorized Motorized Motorized Motorized Motorized
F# (Wide-Tele) 1.85-2.20 1.84-2.25 1.80-2.24 1.80-2.24 1.84-2.58 1.85-2.42
f(mm) 12.0-14.6 14.4-19.1 19.0-27.6 27.7-44.3 43.8-86.0 86.8-163.5
Throw Ratio (16:10) 0.53-0.65 0.65-0.87 0.86-1.25 1.24-2.01 1.98-3.95 3.95-7.50
Zoom Ratio 1.23 1.34 1.45 1.62 1.99 1.90
Lens Shift Horizontal ±20% ±20% ±25% ±25% ±25% ±25%
Lens Shift Vertical ±50% ±55% ±65% ±65% ±65% ±65%
Screen Size 60-500inch 60-500inch 60-500inch 60-500inch 60-500inch 60-500inch
