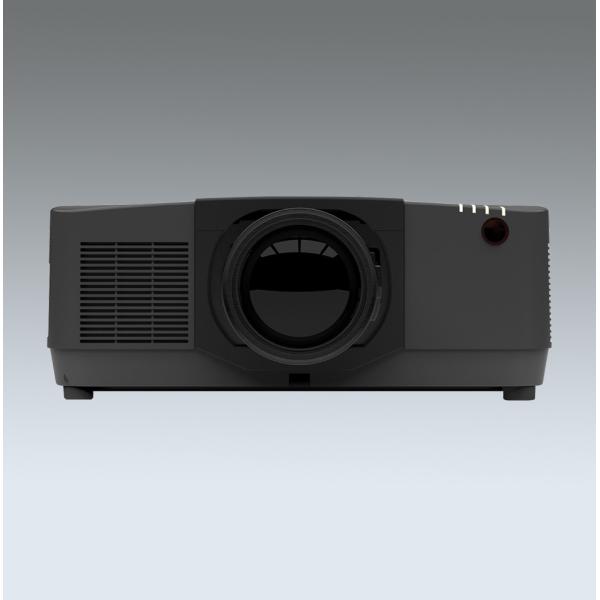

High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser
Specifications
Application :
Auditoriums, Large Venues
Light Source :
Laser, 20000 Hours
Installation :
Lens Shift, Keystone Correction
Contrast Ratio :
5000000:1
Brightness :
20,000 Lumen
Brand Name :
SMX
Model Number :
MX-X20000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Price :
21500usd/pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Product Name :
3LCD Laser Projector
Lens :
Motorized
Resolution :
WUXGA
Contrast :
5,000,000:1
Applictaion :
3D Mapping
Description

20000 Lumen High Brightness 3D Mapping Large Venue Projector

MX-X20000U

  • 20,000 Lumen high brightness
  • WUXGA Resolution
  • 5,000,000: 1 High Contrast
  • Manual Lens easy to control
  • Lens Shift and Keystone Correction Flexible Installation
  • Multiple input / Output Control Interfaces
  • Laser light Source 20,000 Hrs lifetime

Application:


Large Venues: Perfect for auditoriums, conference halls, theaters, and other large venues where high brightness and clarity are essential.


Professional Presentations: Ideal for corporate presentations, educational institutions, museums, and other settings where impactful visuals are crucial.


Entertainment: Enhance your movie nights, gaming sessions, or events with stunning visuals that captivate your audience.

High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser

Len Shift

Projector lens shift is a feature that allows the optical lens of a projector to be physically moved up, down, left, or right without compromising image quality. This adjustment capability enables users to alter the position of the projected image on the screen without having to physically move the projector itself.

High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser

Keystone Correction

Keystone correction is a feature found in many projectors that digitally adjust the shape of the projected image to correct the distortion caused by projecting at an angle. When a projector is not positioned perpendicular to the screen or projection surface, the resulting image may appear trapezoidal or distorted, with the top or bottom of the image wider than the opposite side.

High Brightness 20000 Lumen 3D Mapping Large Venue Projector Auditorium 3LCD Laser

Specification

Model# MX-X20000U
Brightness　　
　 Brightness(Lumen) 20,000
Overall Spec　　
Panel Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser Lifetime Normal mode 20000hrs
ECO mode 30000hrs
Projection Lens
(STD)		 Len Model MX-EG12ZLM
Zoom/Focus Motorized
Throw Ratio (16:10) 1.24-2.01 @100inch
F 1.8-2.24
f 27.7-44.3mm
Zoom Ratio 1.62
Screen size 60-500 inch
Lens Shift V ±65%
Lens Shift H ±25%
CR Contrast Ratio(Min) 3,000,000:1
Noise Noise(dB) Full:46db / Normal:44db / Eco1:43db / Eco2:42db
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)　　
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
Audio in(mini jack,3.5mm) *1 (VGA/DVI-D share)
DMX512 *1
Output HDMI 1.4(OUT) *1
Audio out (mini-jack,3.5mm) *1
Control RS232C (Input) *1
RS232C (Output) *1
Wired Remote(IN) *1
Wired Remote(OUT) *1
Other Functions　　
Keystone Keystone Correction V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSD Languages 26 languages:
English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi
LAN Control LAN Control-RoomView (Crestron) Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others 360° projection 360° Install
Edge Blending Yes
Dimension&Weight　　
　 Product Size (WxHxD mm) 599X240.2X493.8mm (not including lens)
Net. Weight (KG) 28.9Kg (not including lens)
Accessory　　
　 Manual Languages Chinese, English
Standard Accessories Power cord (3m, Black), Remote control
