Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
Specifications
Brightness :
12000 Lumens
Light Source :
Laser
Lifetime :
20000 Hours
Application :
Large Venue, Mapping Projection
Brand Name :
SMX
Model Number :
MX-X12000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Price :
8950usd/pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Product Name :
Laser Projector
Birghtness :
12000 Lumen
Contrast :
100000:1
Display Technology :
3LCD
Len Shift :
V: +50%，-10% / V: ±20%
Control :
Remote
Description

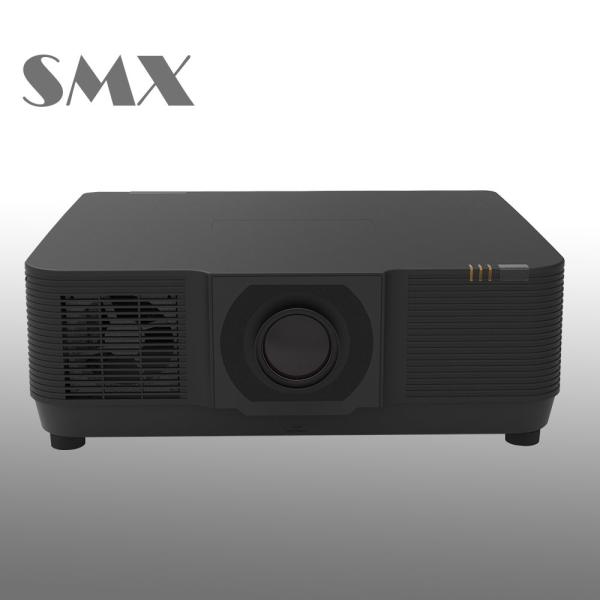

12000 Lumen Professional Large Venue Laser Projector Mapping Projection

Thank you for purchasing this projector. This product is a laser LCD engineering projector, which adopts a new generation of LCD light source technology. The maximum brightness can reach 9500lm brightness and a long life of up to 20,000 hours to maintain a bright display.It avoids the radiation of light to the human body, and can completely solve the interference of shadows on the screen. It adopts liquid crystal display (LCD) technology with a color depth of 1.07 billion colors.

Key Features:

  • High brightness (12000 lumens)and contrast(100000:1)
  • 3LCD Display Technology
  • Laser Light Source
  • 20000 hours or real-time, 30000 hours for ECO mode
  • 360° Projection
  • Zoom & Focus & Len shift Function
  • Up to 500" super big screen
  • 7 optional projection lenses
  • Flexible installation

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Laser Light Source

Projectors with laser light sources provide several benefits including enhanced image quality, durability, and energy efficiency, making them a popular choice for various professional and entertainment applications.

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Flexible Installation Options with 360° projection, Len Shift, and Keystone Correction

Designed for versatility, this projector offers compatibility with different lenses and mounting options, allowing you to customize the setup to meet your specific requirements and venue constraints.

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Len shift:

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Keystone Correction:

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Specification

　Model No. MX-X12000U
Brightness
　 Brightness
( Ansi Lumens )		 12000lumen
Light source Laser
Overall Spec
Panel Display Panel 3x0.76"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light source
Lifetime		 Normal mode 20000hrs
ECO mode 20000hrs
Projection Lens Len Type Zoom Lens
Zoom/Focus Manual(Standard Len)
Throw Ratio(16:10) 1.46-2.95
F#(Wide-Tele) 1.7~2.37
f(mm) 24.4-48.6
Zoom Ratio 2
Weight Approx 0.8kg
Lens Shift V +50%,-10%
Lens Shift H ±20%
CR Contrast Ratio(Min) 100000:1
Noise Noise(dB) Normal(90%): 35dB
ECO1(75% ): 32dB
ECO2(45% ): 32dB
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal
Terminal(I/O port)
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1 (5V/1.5A)
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
HD-SDI(3G-SDI) Optional
Audio in
(mini jack,3.5mm)		 *1 (VGA/DVI-D share)
Output VGA *1
HDMI 1.4(OUT) *1
Audio out
(mini-jack,3.5mm)		 *1
Control RS232 *1
RJ45 *1 (Control)
USB-B *1 (For upgrade)
Wired Remote(IN) *1
Wired Remote(OUT) *1
Other Functions
Keystone Keystone Correction V: ±30°
H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
LAN Control LAN Control-RoomView
(Crestron)		 Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others 360° projection 360° Omni bearing installation
Edge Blending Yes
Dimension&Weight
　 MAX Dimensions
(WxHxD mm)		 600*218*503
Net. Weight (KG) ~25kg
Accessory
　 Manual Languages Chinese, English
Standard Accessories Power cord(3m,Black), Remote control

Lenses

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Product Details

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display

Ports

Mapping Projection 12000 Lumen Large Venue Laser Projector 20000 Hours LCD Display
