Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Specifications
Dynamic Contrast Ratio :
100,000:1
Throw Ratio :
1.46-2.95
Application :
Building Projection, 3D Mapping
Edge Blending :
Yes
Zoom/Focus :
Manual
Lens Shift :
V: -10%~+50% , H: ±20%
Resolution :
WUXGA
Aspect Ratio :
16:10
Projection Size :
40-500 inch
Lens :
Zoom Lens
Native Resolution :
WUXGA (1920*1200)
Len Type :
Zoom Lens
Brightness :
12000 Lumens
Color Depth :
1.07 Billion Colors
Birghtness :
1,2000 lumens
Zoom Ratio :
2
Display Type :
LCD
Light Source Lifespan :
20,000 hours
Product Name :
Large Venue LCD Laser Projector
Projection Light Source :
Laser
Brand Name :
SMX
Model Number :
MX-X12000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Keystone Correction :
V: ±30°, H: ±30°, 4 Corner, 6 Corner
Description

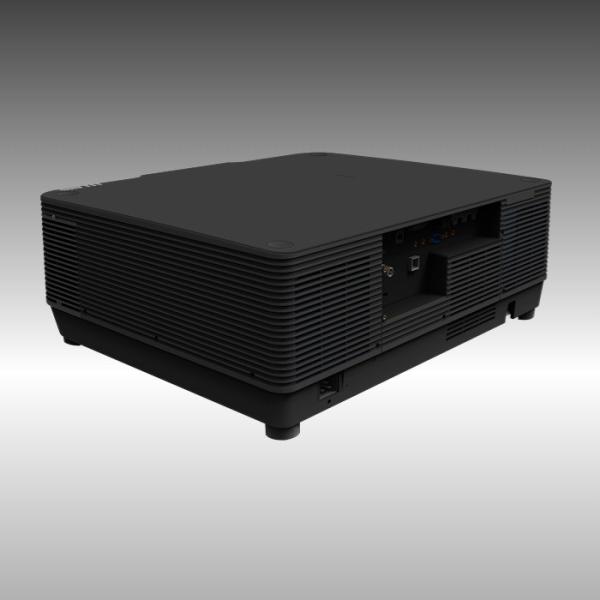

SMX Large-venue LCD Laser Projector WUXGA 12000 Lumen
The SMX MX-X12000U is a 12000-lumen 3LCD laser engineering projector designed for complex and specialized applications. Featuring high brightness, WUXGA resolution, and exceptional flexibility, it delivers superior performance across diverse environments. Utilizing LCD technology with 1.07 billion color depth for vibrant, accurate color reproduction.

Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

Main Features
  • 12,000 Lumen High Brightness - Ideal for large venues and bright environments
  • WUXGA (1920*1200) native resolution - Crystal-clear image quality
  • Multi-interface with dual HDMI - Flexible connectivity options
  • Advanced keystone correction - Installation flexibility
  • 20,000 Hours laser light source - Ultra-long lifespan
  • 100000:1 High contrast - Exceptional image depth
  • 360° Projection capability - Versatile installation options
  • Edge blending support - Seamless multi-projector setups
  • 4K signal input - Future-ready compatibility

Application Areas
  • Large venue projection systems
  • Immersive experience installations
  • Hologram projection displays
  • 3D mapping & building projection
  • Exhibition & museum installations

Key Technologies
Lens Shift
Provides flexibility and convenience, allowing adjustment of the projected image in various installation conditions to ensure optimal visual effects and audience experience.
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

360° Projection
Adjustable according to site requirements to adapt to different environments.
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

WUXGA Resolution

Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

High Contrast

Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

Edge Blending

Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display

Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
Technical Specifications

Model Information
Model No. MX-X12000U
Brightness
Brightness (ANSI Lumens) 12000 lumen
Light source Laser
Display Specifications
Display Panel 3x0.76"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Light Source
Lifetime (Normal/ECO mode) 20000hrs
Projection Lens
Lens Type Zoom Lens
Zoom/Focus Manual (Standard Lens)
Throw Ratio (16:10) 1.46-2.95
F# (Wide-Tele) 1.7~2.37
f(mm) 24.4-48.6
Zoom Ratio 2
Lens Shift V +50%,-10%
Lens Shift H ±20%
Performance
Contrast Ratio (Min) 100000:1
Noise (dB) Normal (90%): 35dB
ECO1 (75%): 32dB
ECO2 (45%): 32dB
Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal
Connectivity
Input Ports VGA (1), HDMI 1.4 (2), USB-A (1), USB-B (1), RJ45 (1), DVI-D (1), HD BaseT (1), HD-SDI (Optional), Audio in (1)
Output Ports VGA (1), HDMI 1.4 (1), Audio out (1)
Control Ports RS232 (1), RJ45 (1), USB-B (1), Wired Remote (IN/OUT)
Advanced Functions
Keystone Correction V: ±30°, H: ±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
OSD Languages 26 languages, including English, Chinese, Japanese, and major European languages
LAN Control RoomView (Crestron), AMX Discovery, PJ Link
Display Resolution Support VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, 4K@30Hz
Special Features 360° projection, Edge Blending
Physical Specifications
Dimensions (WxHxD mm) 600*218*503
Net Weight ~25kg
Accessories
Standard Accessories Power cord (3m, Black), Remote control, HDMI Cable
Manual Languages Chinese, English
Building Projection 12000 Lumen 3D Mapping Projector LCD WUXGA Zoom Lens Display
