Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
MK250
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
11000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Worktable size (L * W) :
250×500
Max. travel of table (L * W) :
550×280
Table T slot (slot number x slot width) :
1×14
The grinding wheel size (o. d * w * i. d.) :
Φ200×20×Φ31.75
Distance spindle center line to working table :
500
Spindle motor :
2KW
Net weight :
900KG
External size (L * w * h) :
2400x1500x1800
Description

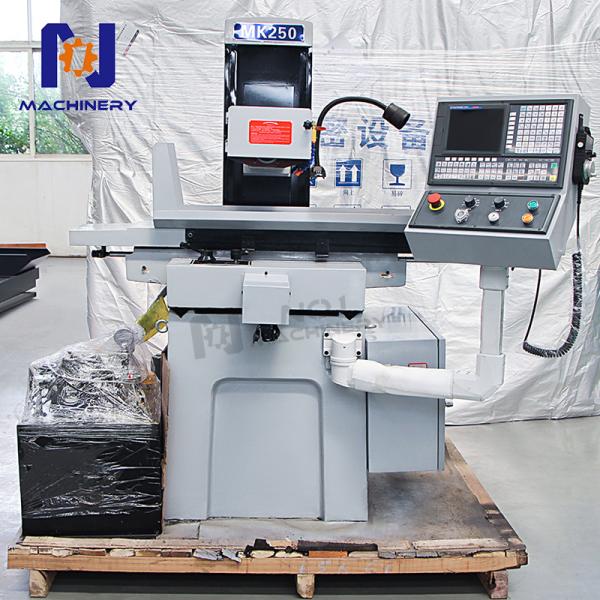

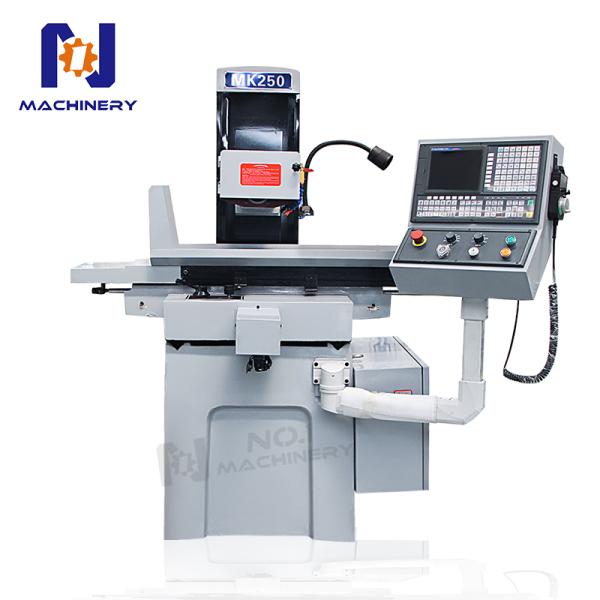

MK250 High Quality Surface Grinder CNC Surface Grinding Machine for Metal

The MK250 Surface Grinding Machine is a high-precision, universal grinder designed for precision surface and end-face grinding of workpieces. It features a compact structure, good rigidity, easy operation, high grinding efficiency, and excellent surface finish, making it ideal for tool rooms and small-batch production.

Standard configuration:

1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.

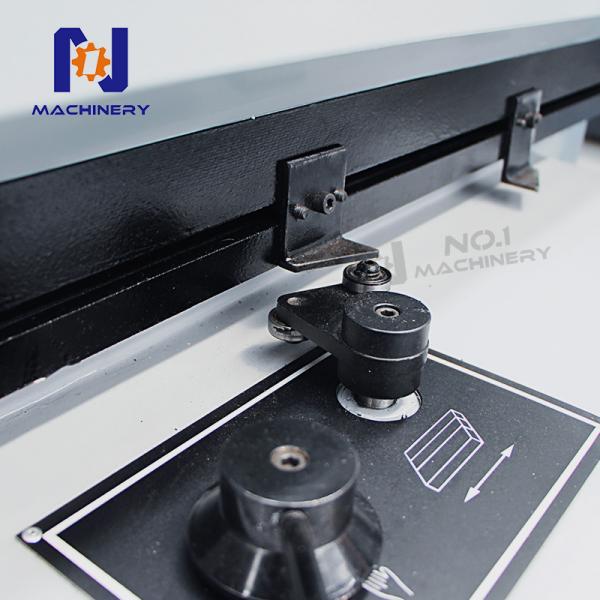

2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving,and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy,flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.

Product specification:

Specifications
Units
MK250
Worktable size (L * W)
mm
250×500
Max. travel of table (L * W)
mm
550×280
Table T slot (slot number x slot width)
mm
1×14
The grinding wheel size (o. d * w * i. d.)
mm
Φ200×20×Φ31.75
Distance spindle center line to working table
mm
500
Grinding wheel speed
50HZ
r/min
3000
60HZ
r/min
3500
The vertical (up and down) feed handwheel feed
Handwheel per turn
mm
2
Handwheel per lattice
mm
0.01
Transverse (front and rear) feed handwheel feed
Handwheel per turn
mm
4
Handwheel per lattice
mm
0.02
Motor power
Spindle motor
kw
2
Cooling moto
W
200
Machine weight
Net weight
kg
900
Gross weight
kg
1000
External size (L * w * h)
mm
2400x1500x1800
