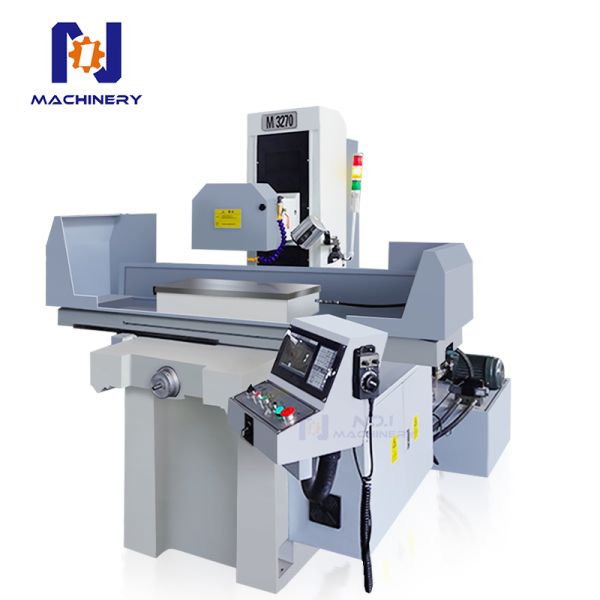

Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
M3270
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1
Price :
4000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
20 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Working table size(LxW)(mm) :
680*300
Grinding wheel size(mm) :
350*127*32
Spindle motor(kw) :
3
Cooling motor(w) :
40
surface roughness(um) :
Ra0.32
Machine weight(kg) :
1800
Overall dimensions (L*W*H)(mm) :
1840*1480*2050
Description

Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine


The series of machine tools are designed for peripheral grinding using the grinding wheel. They are widely employed in the machinery manufacturing industry to process components, cast iron, non-ferrous metals, and other metal parts. With smooth operation, reliable performance, low noise, and user-friendly controls, these machines are highly favored by users.


Product specification:

PARAMETER ITEM
UNIT
M3270
Working table size(LxW)
mm
680*300
Maximum grinding area of worktable(LxW)
mm
700*320
T-slots on worktable (number of slots * slot width)
mm
1*14
Distance from grinding wheel spindle centerline to work surface
mm
1440
Grinding wheel speed (50 Hz)
R/min
 3-20
Worktable horizontal handwheel feed/per turn
mm
5
Feed on vertical feed handwheel(Per rev.)
mm
 0.01
Electronic handwheel for grinding head infeed(Per grad)
mm
 2
Electronic handwheel for grinding head infeed(Per rev.)
mm
 0.01
Grinding wheel size
mm
 350*127*32
Spindle motor
kw
 3
Cooling motor
w
 40
Parallelism of the machined surface to the base surface
mm
 300:0.010
surface roughness
um
 Ra0.32
Machine weight
kg
1800
Overall dimensions (L*W*H)
mm
1840*1480*2050


Details Display:

Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine

Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
