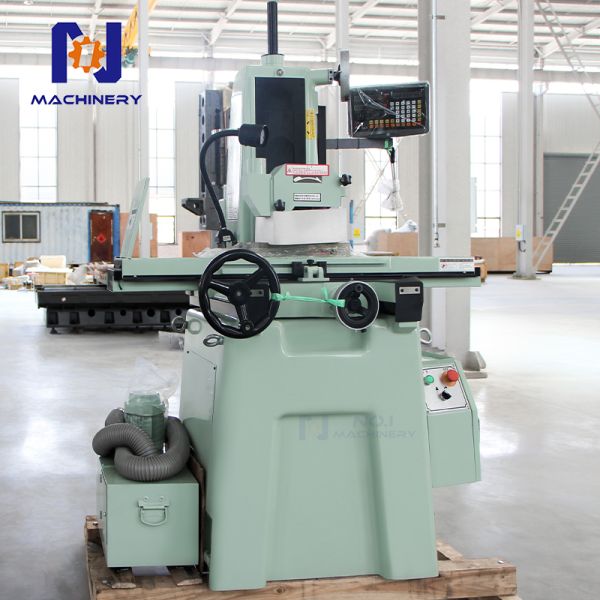

M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
M618S
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1
Price :
4700USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
20 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Working table size(mm) :
150*460
Max.longituditmal travel of table(mm) :
470
Max.cross travel of table(mm) :
160
Horizontal Surface Accuracy(um) :
0.002
Spindle motor(HP) :
1.5
Grinding wheel dimension(mm) :
180*13*31.75
Gross weight(kg) :
850
Packing size(mm) :
1300*1150*1980
Description

M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price


Key castings in this machine are made of high-strength cast iron. The longitudinal guideway utilizes a hydrostatic guide, while the transverse and vertical guideways utilize steel-inserted, hardened rolling guides. These guides offer permanent wear resistance, vibration resistance, lubricity, and reliability, and are capable of withstanding heavy grinding. This machine is suitable for precision machining of alloy steel, hardened steel, and nonferrous metals, as well as for grinding carbide.


Product specification:

PARAMETER ITEM
UNIT
M618S
Table size
mm
150*460
Max.longituditmal travel of table
mm
470
Max.cross travel of table
mm
160
Max.distance between axis of spindle and table surface
mm
420
Horizontal Surface Accuracy
μm
0.002
Scale of handwheel for cross feed/Per rev
-
5
Per graduation/Per graduation
-
0.02
Scale of handwheel for vertical feed/Per rev
-
1
Scale of handwheel for vertical feed/Per gradudtion
-
0.005
Spindle speed
rpm
60HZ: 3600rpm; 50HZ: 2800rpm
Spindle motor
HP
1.5
Grinding wheel dimension
mm
180*13*31.75
Gross weight
kg
850
Packing size
mm
1300*1150*1980


Details Display:

M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price

M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price


M618S Precision Small Mini Surface Grinding Machine Metal Surface Grinding Machine for Factory Price
