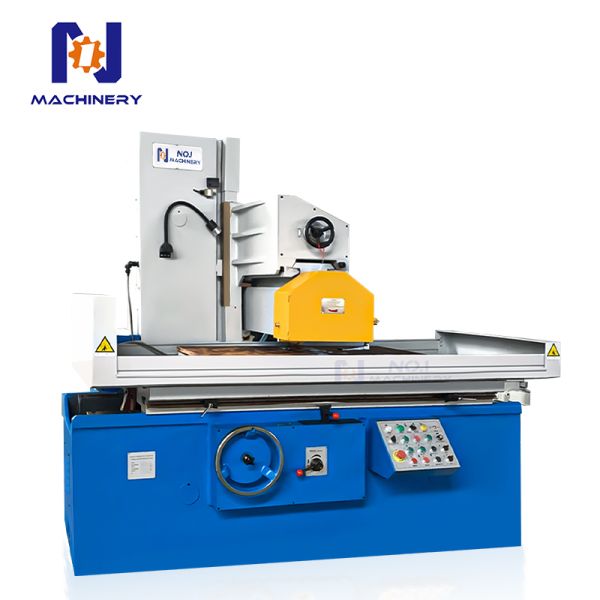

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
M7163
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1
Price :
15000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
20 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Working table size(mm) :
1250X630
Max.grinding size no chuck(LxWxH)(mm) :
1250X630X550
Wheel size(mm) :
400X50X203
Motor total power(kw) :
15.2
Wheel spindle motor(kw) :
7.5
N./G. weight(kg) :
5200/5600
Package Dimensions (L ×W × H)(mm) :
2820X2100X2750
Description

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing


This machine is a flat surface machine that utilizes a grinding wheel for peripheral grinding. The end face of the grinding wheel can also be used to grind vertical surfaces of workpieces. Depending on the workpiece, it can be secured to an electromagnetic chuck, directly fixed to the worktable, or clamped and ground using other fixtures.This machine offers high precision, excellent rigidity, and ease of operation.


Product specification:

PARAMETER ITEM
UNIT
M7163
Working table size
mm
1250X630
Max.grinding size no chuck(LxWxH)
mm
1250X630X550
Max.table longitudinal travel
mm
1300
Max.cross travel of gringing head
mm
680
Max.vertical travel of grinding head
mm
550
Wheel size
mm
400X50X203
The rotating speed of grinding wheel
r/min
1400
Motor total power
kw
15.2
Wheel spindle motor
kw
9
Oil pump motor
kw
5.5
Machining parallelism
r/min
0.008/300
Motor total power
kw
15.22
Wheel spindle motor
kw
7.5
Oil pump motor
kw
5.5
Surface roughness
Ra
0.63
Package Dimensions (L ×W × H)
mm
2820X2100X2750
N./G. weight
kg
5200/5600


Details Display:

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing

Professional M7163 Fast Grinding Speed Surface Grinding Machine for Metal Processing
