Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
X6332P
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6800USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Table size(mm) :
1500x320
Table travel(mm) :
1000/320/400
Spindle Taper :
7:24 ISO40
Spindle speed range(rpm) :
50HZ:65-4500 / 60HZ:80-5440
T-groove :
3-14x70
Distance between spindle nose and table surface(mm) :
140-540
Spindle motor power(kw) :
3
Description

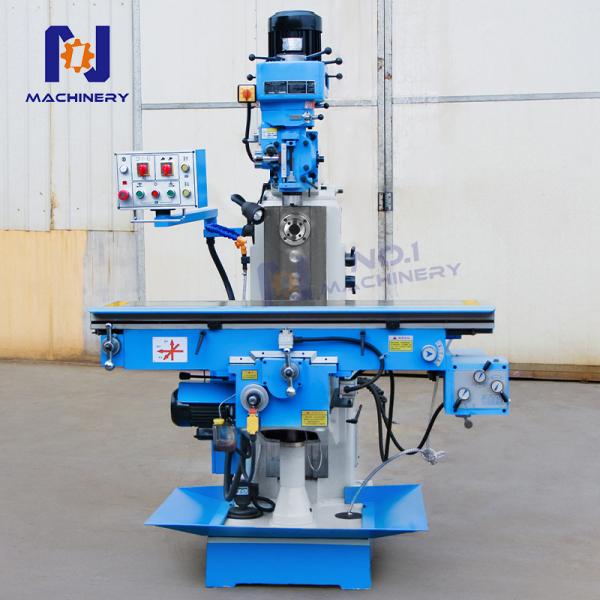

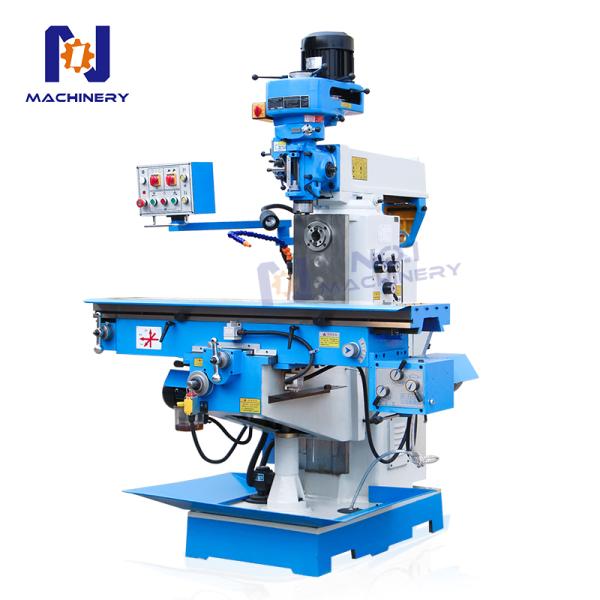

X6332P Turret Milling Machine Manual Multi Function Vertical Turret Milling Machine

The milling machine is a broad-spectrum tool type milling machine, it can undertake vertical milling, horizontal milling, drilling and boring, reaming and grinding and other processing work.
These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry.

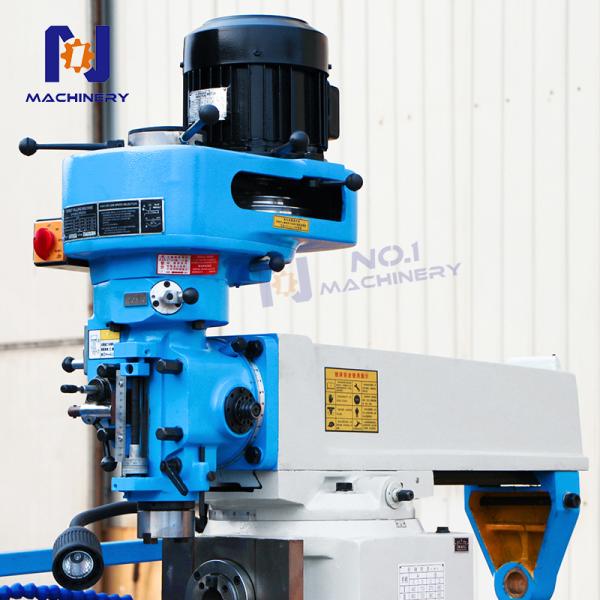

The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º.
The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life.

Product features:

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

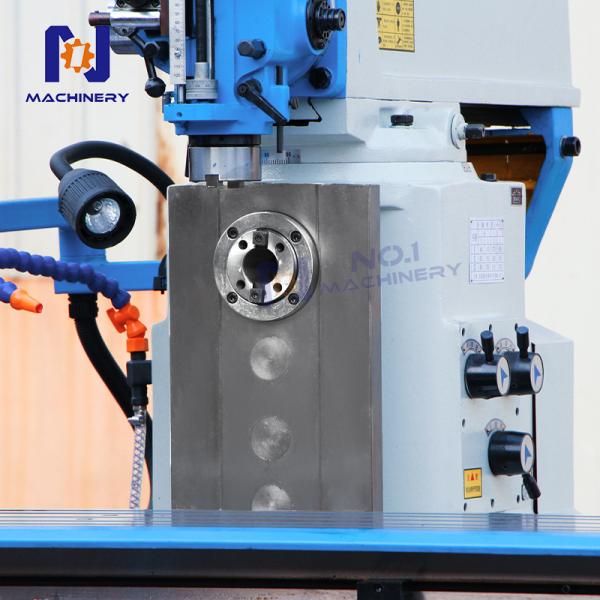

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent

Standard Configuration:

Integrated Control Panel

X／Y automatic feed

Electric lift of Zaxis

Taiwan turret milling head

Three-axis rectangular guide rail

Optional Configuration:

electronic oil pump

dividing head

rotary table

tool

clamping kit

Three-axis DRO

pneumatic draw bar

Product specification:

PARAMETER ITEM
UNIT
X6332P
X6336P
Size of worktable
mm
1500x320
1500x360
Table travel
mm
1000/320/400
1000/360/450
T-groove
-
3-14x70
3-18x80
Vertical spindle taper
-
R8
MT40
Horizontal axis taper
-
ISO40
ISO40
Spindle speed range
rpm
50HZ:65-4500 / 60HZ:80-5440
50HZ:65-4500 / 60HZ:80-5440
Horizontal axis speed range
-
40-1300
60-1800
Spindle stroke
mm
127 (V)
127(V)
Spindle feed range
mm
0.045,0.086,0.142
0.045,0.086,0.142
Distance from spindle face to table
mm
140-540
140-590
Distance from end face of horizontal shaft to table
mm
0-400
0-450
Main motor power
kw
3HP/3kw
5HP/4kw
Weight of machine tool
kg
2000
2400
External dimensions
mm
2200x1820x2350
2600x2200x2550

Details Display:
