X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
X6036B
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Working desk size :
1500x360mm
Number of T-slots :
3
Workbench trip :
1000X360X400mm
Spindle speed range :
60-1800(12 steps)
Workbench down stroke :
500mm
Motor Power :
4kw
Description

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices

Universal lifting platform milling machine is a kind of general metal cutting machine tool.The machine tool has good structural rigidity and can carry heavy loads for cutting.Suitable for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gear.


Standard configuration:

1.X/Y axis automatic.

2.Ecectric lift of Z axis.


Optional configuration:

1.Vertical milling head.

2.Three-axis digital display.

3.Electronic oil pump.

4.Universial dividing head.

5.Custom tool holder.


Product specification:

PARAMETER ITEM
UNIT
 X6036B
Working desk size mm 1500x360
Number of T-slots -- 3
Workbench trip mm 1000/360/400
Spindle hole taper -- 7:24/ISO50

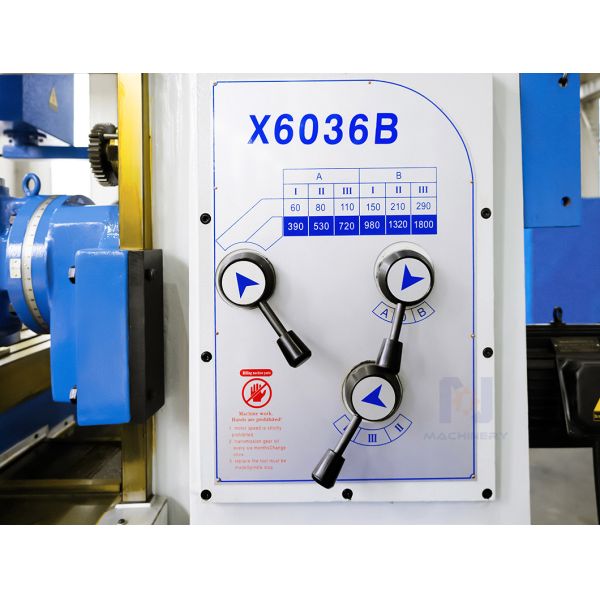

Spindle speed range rpm 60-1800(12 steps)
Worktable feed speed mm/min 15-370 (8 steps)
Workbench down stroke mm 500
Worktable vertical lifting speed mm/min 560
Motor Power kw 4
Dimensions mm 2220x1790x1980
Machine weight kg 2400/2500
Vertical shaft end to table distance mm 50-550
Spindle center to vertical rail surface distance mm 320


Details Display:

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices

X6036B Manual Milling X/Y axis Automatic Universal Metal Milling Machine Prices
