Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
X6036
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
8000USD
Payment Terms :
T/T
Supply Ability :
1500 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Table size(mm) :
1500x360
Table travel(mm) :
1000x360x400
Number of T-slots :
3
Spindle taper :
7:24/ISO50
Spindle speed range(rpm) :
60-1800(12 steps)
Spindle center to table distance(mm) :
50-550
Spindle motor power(kw) :
4
Description

High Precision X6036 Universial Lift Table Milling Machine Manual Mill 220V 380V Optional


The X6036 is a high-performance universal milling machine, famous for its powerful cutting capacity and wide application range. Its horizontal spindle structure delivers outstanding rigidity, making it ideal for heavy-duty and high-efficiency milling of planes, grooves, gears, and various complex profiles with cylindrical cutters, slab cutters, and formed cutters.


Optional Configuration:


1.Vertical milling head

2.Three-axis digital display

3.Electronic oil pump

4.Universal dividing head

5.Custom tool holder



Product specification:

PARAMETER ITEM
UNIT
X6028
X6032
X6036
Working desk size
mm
1200/1500x280
1500x320
1500x360
Number of T-slots

3
3
3
Workbench trip
mm
680/280/350
1000x320x400
1000/360/400
Spindle hole taper

7:24/ISO40
7:24/ISO40
7:24/ISO50
Spindle speed range
rpm
40-1300(12 steps)
40-1300(12 steps)
60-1800(12 steps)
Worktable feed speed
mm/min
15-370 (8 steps)
15-370 (8 steps)
15-370 (8 steps)
Workbench down stroke
mm
500
500
500
Worktable vertical lifting speed
mm/min
560
560
560
Spindle center to vertical rail surface distance
mm
300
320
320
Vertical shaft end to table distance
mm
50-550
50-550
50-550
Motor Power
kw
3
3
4
Dimensions
mm
1460x1500x1900
1760x1500x1900
2220x1790x1980
Machine weight
kg
1500
2100
2400/2500

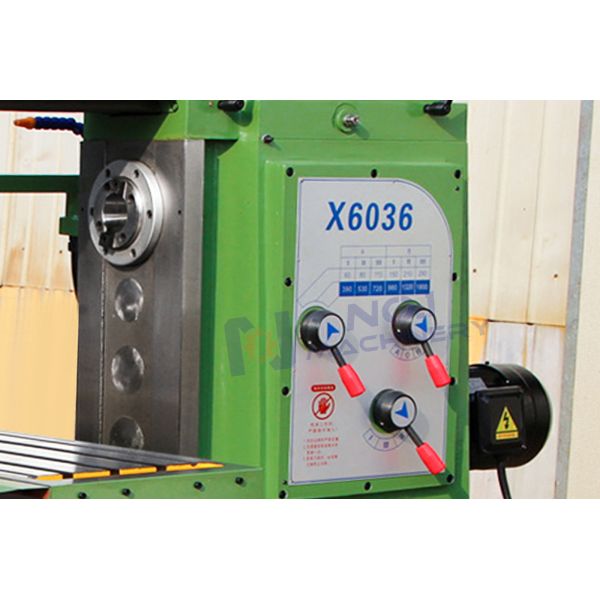

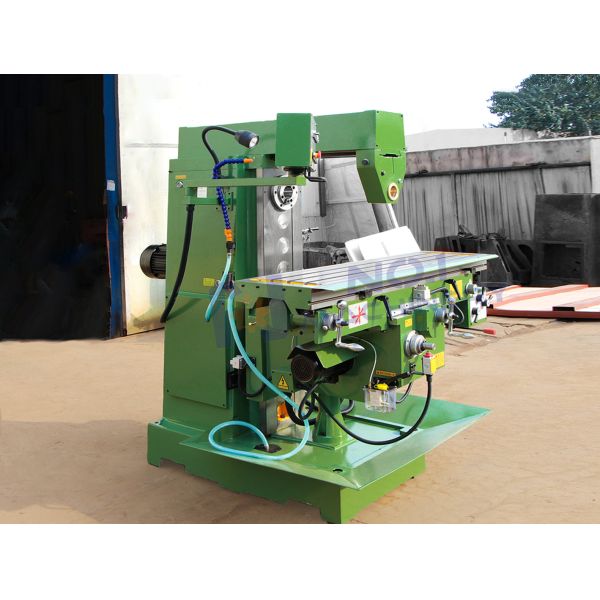

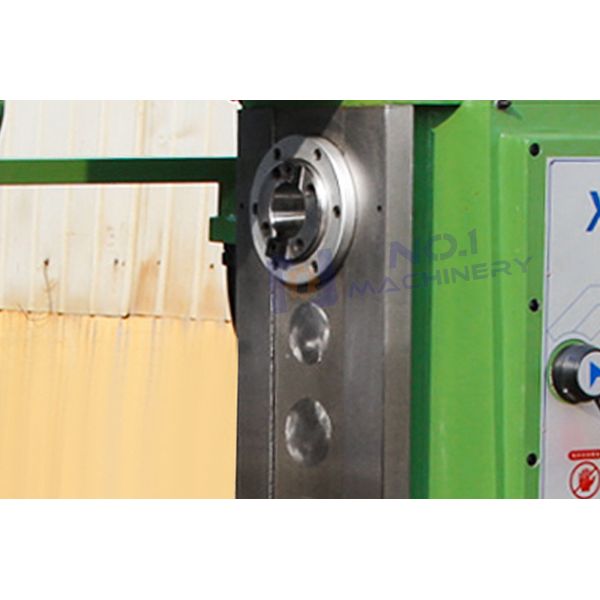

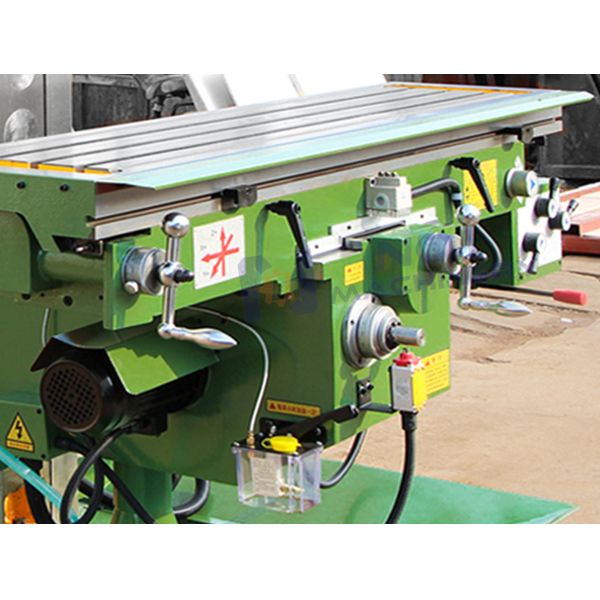

Details Display:
