Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
XA6240
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
23000USD
Payment Terms :
T/T
Supply Ability :
100 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Table size(mm) :
1700x400 (2000x400)
X direction (table longitudinal) Manual / Auto :
900／880
Y direction (slide lateral) Manual / Auto :
315/300
Z direction (lifting table vertical) Manual / Auto :
380/360
Workbench maximum overload(kg) :
500
Work table T-slot number/width/spacing :
3-18-90
Spindle speed range(rpm) :
V: 35-1600 H: 30-1500
Description

Factory Direct XA6240 Heavy Duty Universal Swivel Head Milling Machine for Metal

The XA6240 is a heavy-duty universal milling machine renowned for its swivel head, which can rotate to any orientation in space for versatile operations like vertical, horizontal, and angular milling. With a rugged construction, exceptional rigidity, and high power, it is engineered for heavy-cut machining and large workpieces, making it essential for machinery, mold, and heavy equipment manufacturing.

standard configuration:

1. Three-axis automatic feed

2. Standing and lying

optional configuration:

1. Three-axis digital display

2. Dividing head

3.Can be changed to CNC

4.Pressure Plate

Product specification:

PARAMETER ITEM
UNIT
XA6232
XA6240
Working desk size
mm
1320x320(1600x320)
1700x400 (2000x400)
Work table T-slot number / width/spacing
mm
3-18-70
3-18-90
Workbench maximum overload
kg
300
500
X direction (table longitudinal) manual/ maneuver
mm
700 /680( 900 Optional)
900/880( 1100 Optional)
Y direction (slide lateral) manual / maneuver
mm
255/240
315/300
Z direction (lifting table vertical) manual / maneuver
mm
380/360
380/360
Cutting feed rate
mm/min
X. Y:23.5-1180 Z:8-394
X. Y:23.5-1180 Z:8-394
Fast moving speed
mm/min
X:2300 Y:2300 Z:770
X:2300 Y:2300 Z:770
Spindle speed range (V/H)
rpm
V: 35-1600 H: 30-1500
V: 35-1600 H: 30-1500
Spindle speed series (V/H)
steps
V: 11 H: 18
V:11 H:18
Spindle Taper
-
V:ISO40 7:24 H:ISO50 7:24
V:ISO40/50 7:24 H:ISO50 7:24
Worktable maximum turning angle
.
±45°
±45°
Spindle center to table distance
mm
30-350
30-410
Spindle motor power
kw
7.5
11
Dimensions
mm
2294x1770x1665
2560x2130x1800
Machine weight (about)
kg
2650
3850

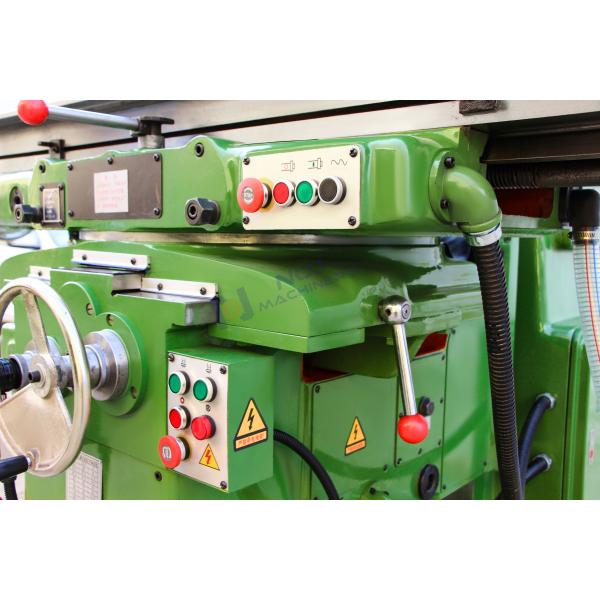

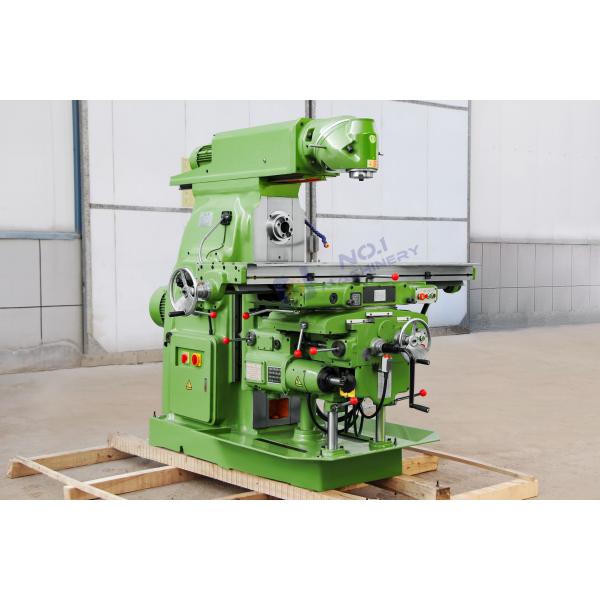

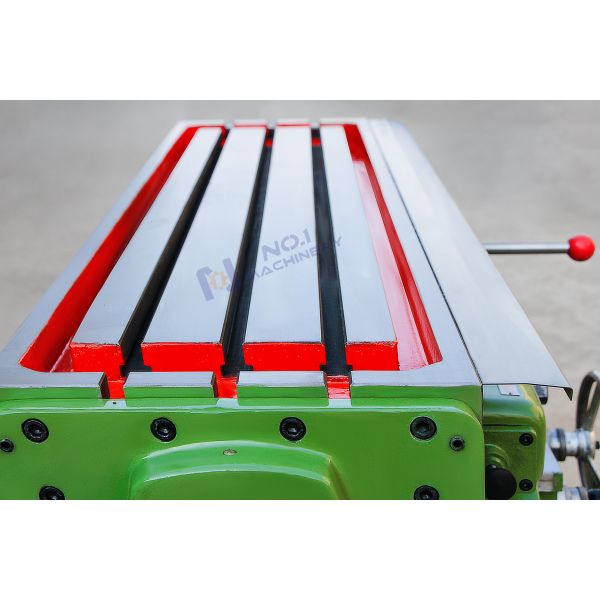

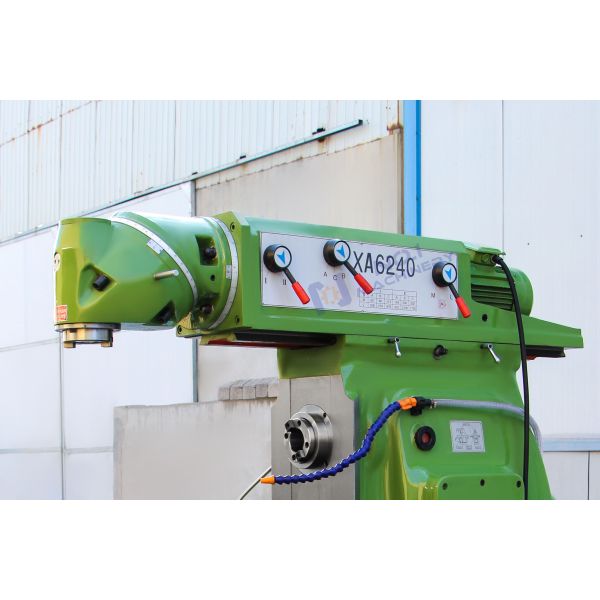

Details Display:

XA6240 Heavy Duty Universal Swivel Head Milling Machine For Metal

XA6240 Heavy Duty Universal Swivel Head Milling Machine For Metal

XA6240 Heavy Duty Universal Swivel Head Milling Machine For Metal

XA6240 Heavy Duty Universal Swivel Head Milling Machine For Metal
