ASTM D642 BS EN ISO12048 Paper Box Compression Strength Testing Machine Carton Compression Strength Tester
ASTM D642 BS EN ISO12048 Paper Box Compression Strength Testing Machine Carton Compression Strength Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A060
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Test speed :
(10 ± 3) mm/min
Load resolution :
1/100,000
Load accuracy :
Within ±0.5%
Control mode :
Panel control, LED liquid crystal display
Description

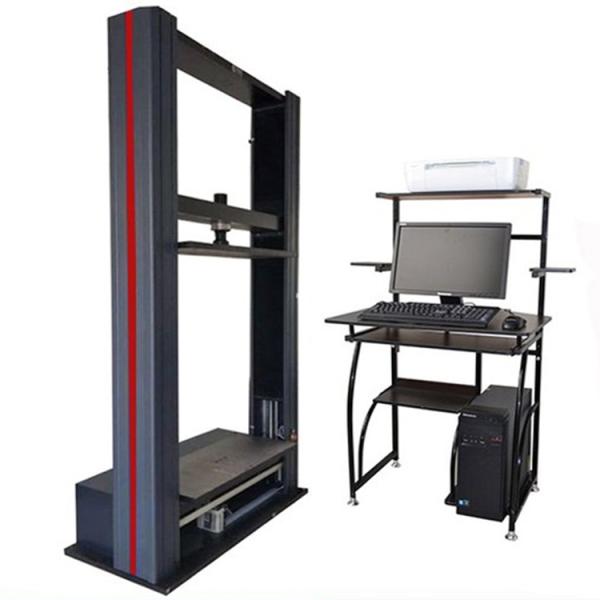

ASTM D642 BS EN ISO12048 Paper Box Compression Strength Testing Machine Carton Compression Strength Tester

Instroduction

The paper box compression strength testing machine is suitable for the compression, deformation and stacking tests of corrugated boxes, honeycomb board boxes and other packaging items. It also takes into account the compression tests of plastic barrels (edible oil, mineral water), paper barrels, paper boxes, paper cans, container barrels (IBC barrels) and other containers. It is used to determine the compression resistance of paper boxes and can also be used for the test of sustained pressure stacking. The test results can be used as an important reference for the height of finished product packaging boxes in factories or as an important basis for designing packaging boxes.


Compliant with standards

TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4


Technical Specification

Capacity options

500kg, 1000kg, 2000kg, 3000kg, 5000kg sensors

Test speed

(10 ± 3) mm/min

Load resolution

1/100,000

Load accuracy

Within ±0.5%

Unit switch

Kgf, Ibf, N

Control mode

Panel control, LED liquid crystal display

Compressed space dimensions

200×200, 300×300, 400×400, 500×500, 600×600, 800×800, 1000×1000, 1200×1200, 1500×1500 mm
