DHF186 Multi Element Express Meter 1KW Raw Material Analyzer
DHF186 Multi Element Express Meter 1KW Raw Material Analyzer
Specifications
Brand Name :
Lonroy
Model Number :
DHF 186
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220V AC, 50Hz
Power Consumption :
1KW
Temperature :
25±5°C
Relative Humidity :
≤85% RH
Warranty :
1 Year
Description

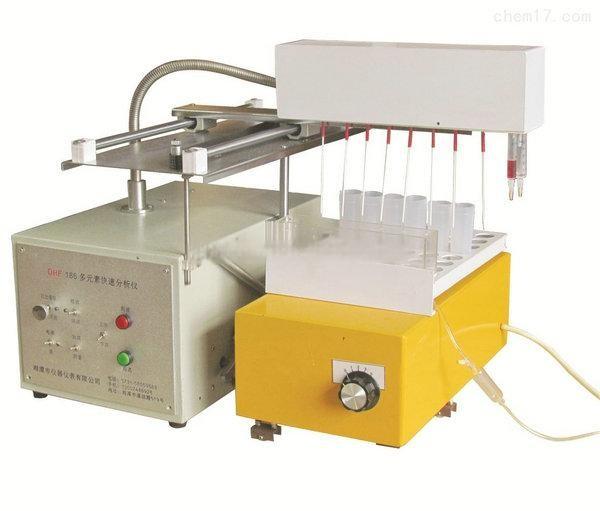

DHF186 Multi-Element Express Meter Raw Material Analyzer

1.Description:

This instrument is based on the 85 model and incorporates an automatic rotation and mixing system for solutions and samples. It not only simulates the manual mixing process but also eliminates this time-consuming and precisely controlled step. At the same time, the manual movements in three-dimensional space (up and down, front and back, left and right) have been automated (the patent for automation is currently being applied for). This important aspect significantly enhances the analysis speed and operational convenience. It is particularly suitable for the rapid analysis of large samples.

2.Technical Parameter

Parameter Category Specifications
1. Measurable Elements & Ranges
SiO2, Al2O3, Fe2O3, TiO2, CaO, MgO, ZrO2, SnO, ZnO, NiO, CoO, MoO3, V2O5, CuO, Mo 0.01 - 99.9%
K2O, Na2O, Li2O, MnO, Cr2O3 0.01 - 15%
B2O3, P2O5 0.01 - 30%
PbO 0.01 - 99%
BaO 0.01 - 10%
Note: Detection limit extendable to 0.001% for selected elements
2. Sample Types
Silicates/Aluminates Ceramic/glass/cement raw materials & products; Refractories; Inorganic non-metallic materials
Non-ferrous Metals & Chemicals Chromium/V/Mn/Ni/Ti products; Phosphates; Co/Zn/Fe/Mo oxides; Borates; Barium carbonate; Sodium silicate; Red lead; Molybdenum ores & alloys
3. Instrument Channels
Sampling Channels 7
Measurement Channels 6
4. Performance
Measurement Stability ±2 digits within 5 minutes
Test Repeatability 100% compliance (±1 digit) in 20 consecutive tests
Throughput 10 samples per run
5. Analysis Speed
Routine Elements (SiO2, Al2O3, Fe2O3, TiO2, K2O, Na2O, CaO, MgO) 4 samples in 2 hours
Other Elements 4-6 hours
6. Operating Conditions
Power Supply 220V, 50Hz
Power Consumption 1 kW
Ambient Temperature 25±5°C
Relative Humidity ≤85% RH
