1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
1KW Ceramic Raw Material Testing Machine Silicate Chemical Composition Express Meter
Specifications
Brand Name :
Lonroy
Model Number :
DHF 84
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220V AC, 50Hz
Power Consumption :
1KW
Temperature :
25±5°C
Relative Humidity :
<85% RH
Warranty :
1 Year
Description

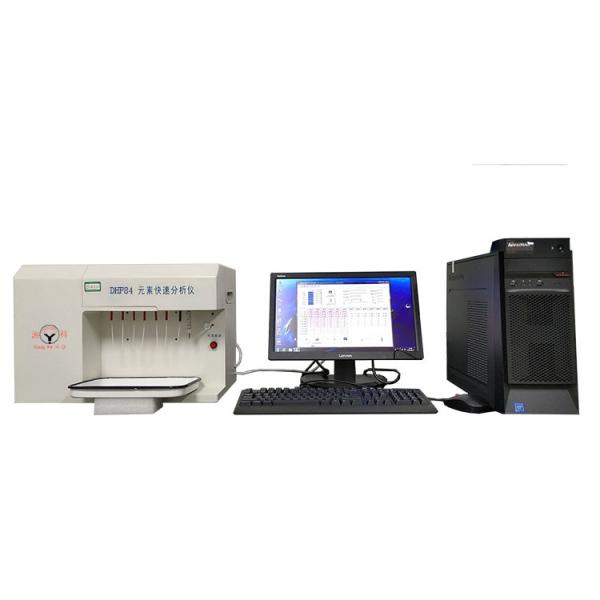

DHF 84 Ceramic Raw Material Testing Analyzer Silicate Chemical Composition Express Meter

1.Description:

The DHF84 multi-element rapid analyzer adopts a unique method of linear expansion and enhanced sensitivity, which solves the problems of deviation from linearity in ordinary photometric analysis when dealing with high component contents, and poor sensitivity when analyzing low component contents. It is a new high-tech product developed based on the DHF83 multi-element rapid analyzer! Utilizing new research results, it has obtained a new national patent with the patent number: 201120329943.0. This is the exclusive intellectual property of our company. Its high-precision liquid addition system has a liquid addition accuracy three times that of the DHF83 model, the detection speed is twice that of the DHF83 model, the analysis is more accurate, faster, has a higher degree of intelligence, is simpler to operate, and has lower usage costs! It is equipped with a 7-channel automatic precise liquid addition system, a 6-element synchronous measurement system, and an automatic data processing system. It also comes with the company-developed anti-interference new technology, which can accurately, precisely, and quickly quantitatively analyze the contents of more than twenty elements in a wide range. It has significant advantages in the field of silicate system analysis, and is particularly suitable for quantitative analysis in non-metallic industries such as ceramics, refractory materials, cement, and glass, as well as in the quantitative analysis of non-ferrous metals and smelting industries such as tungsten, molybdenum, nickel, cobalt, and copper. It has received good results.

2.Technical Parameter

Parameter Category Specification
Measurable Elements & Range SiO2, Al2O3, Fe2O3, TiO2, CaO, MgO, ZrO2, PbO, ZnO, NiO, CoO, MoO3, V2O5, CuO, Mo, W: 0.01-99.9%
K2O, Na2O, Li2O, SnO, MnO, Cr2O3, B2O3, P2O5: 0.01-30%
BaO: 0.01-10%
Detection limit extendable to 0.001% for specific elements
Applicable Materials - Silicates/Aluminates: Ceramics, refractories, glass, cement, inorganic materials
- Non-ferrous metals/chemicals: Chromium/V/Mn/Ni salts, TiO2, phosphates, Co/Zn oxides, borates, BaCO3, Fe/Mo oxides, molybdates, Mo ores/alloys, Ni-Co-Cu alloys
Channels Sampling: 7
Measurement: 6
Stability Reading drift: ±2 digits within 5 minutes
Repeatability ±1 reading in 20 consecutive measurements (100% compliance)
Throughput - 4 routine samples (SiO2, Al2O3, Fe2O3, TiO2 K2O, Na2O, CaO, MgO): ~2 hours
- Other elements: 4-6 hours
Continuous samples: 10
Operating Conditions - Power: 220V AC, 50Hz
- Power consumption: 1 kW
- Temperature: 25±5°C
- Humidity: ≤85% RH
