Specifications
Model Number :
SPA-2800
Weight :
20KG
Case size :
560*452*186mm(L*W*H)
Mains frequency :
20-50KHz
Spear head weight :
8KG
Plasma cleaning height :
5-20mm
Input Power :
220V 50/60 hz
Packaging Details :
wooden package
Description

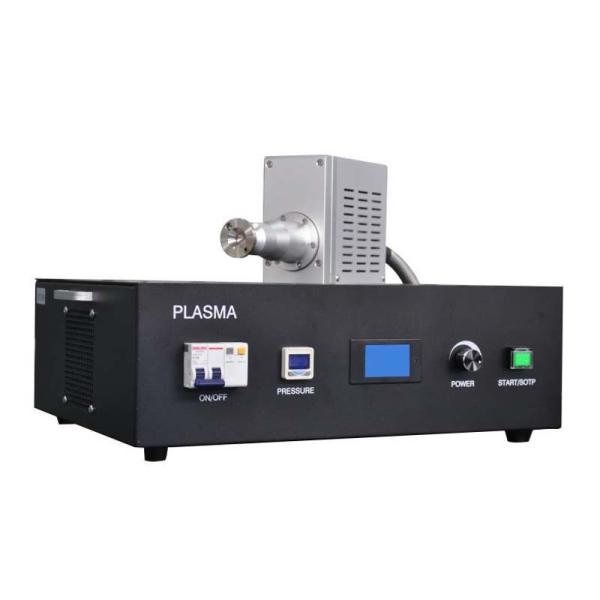

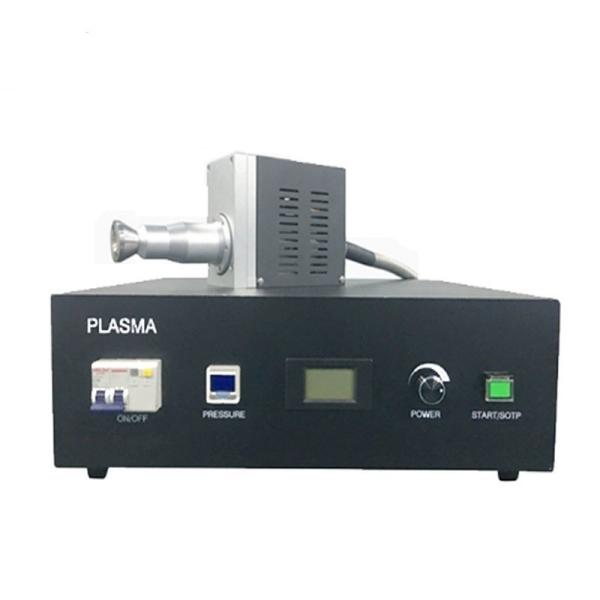

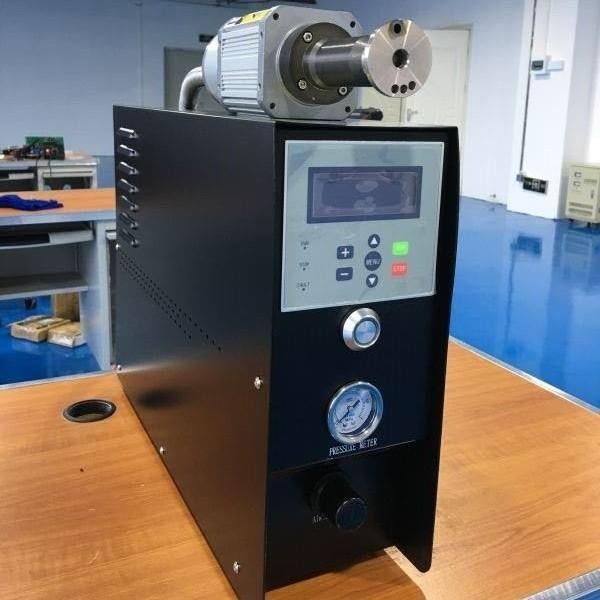

Atmosphere Plasma Surface Cleaning Machine for Coating

1. The Profile
SPA-2800 Atmosphere Plasma Cleaning Machine(Plasma cleaner),is a surface cleaning, activation, etch products in the atmospheric environment, usually with a high-speed rotary gun head spray gun, mainly deal with large areas, more complex shape of the material, is the industry paste is not strong, welding is not strong, printing is not easy to point off the problem of the "enemy".Plasma cleaning as a product surface printing, packaging, fitting, coating, welding, viscose, coating process, is an important part of product upgrading, capacity expansion, cost reduction.

2. Product features
1. Compact machine, wide application range, professional, efficient, accurate, lasting, environmental protection, and flexible configuration, cost-effective
2. Can be combined with the production line, can be continuous operation, improve the production speed;
3. Low gas cost(CDA/N2),cost saving;
4. Advanced in the industry Full-bridge inverter circuit;
5. Patented high voltage generator design;
6. Patented gun head design, no ESD generation;
7. Unique patent discharge technology, high plasma concentration;

3. Industrial application
1. 3C industry: phone assembly bonding, camera module, earphone bonding, phone back cover baking paint, phone cover activation
2. Display industry: TP fit
3. Automotive industry bonding: headlights, steering wheel, EPDM seal, windshield, automotive electronics, automotive accessories
4. Connector industry: cable character printing
5. Household appliances: dispensing, screen printing, jet code
6. New energy: lithium battery, jet code, assembly bonding
7. Clock industry: bonding, inlaying, bonding
8. Plastic industry: surface activation, bonding, screen printing
9. Metal industry: gold plating, silver plating, welding, removal of residual organic matter
10.Glass industry:coating film, ink printing, coating, paste

4. Equipment Specifications

Plasma power main machine specification
Case size 560*452*186mm(L*W*H)
Weight 20KG
Input Power Single-phase 220 v, 50/60 hz, ground wire resistance < 0.5 Ω
Mains frequency 20-50KHz
Plasma output 500-700w adjustable, high power version 700-900w
Control mode I/O port
Alarm Overload protection, short circuit protection, circuit break protection, temperature protection

Plasma power gun head specification
Spear head size As shown in the following equipment drawing
Gun nozzle specifications Optional ordinary 20mm, 30mm, 50mm (standard), 70mm nozzle
And 20mm, 30mm, 50mm, 70mm muzzle
Spear head weight 8KG

Plasma cleaning height
 5-20mm
Effective plasma width
 20-80mm
High tension line long 3.5 m( 6 m We can customize the)

5. General Requirements


Factory specifications
Ac power specification Power supply: single-phase AC220V, 50/60hz, 3-wire, 10A


Factory exhaust
 Flow: 2.0 m /min ;
Pressure: -280~-350 Pa;
Diameter: 4 ";
Material: stainless steel;
Exhaust hood: according to the design of the site environment to connect the factory pumping system

Factory compressed air requirements
 Traffic: 35 LPM;
Pressure: 3~7 kg/cm;
Pipe diameter: 8×5 mm ;
Material: PU pipe;
Dew point: below -40ºC;
Particle > 0.3 m: 10Pcs/ft;
Service clearance
More than 60 cm

Remark
1. Do not change consumables without training.
2. Please turn off the power for more than 20 minutes before replacing consumables, and make high voltage protection

Configuration list
Name quantity
Plasma generator 1 platform
Plasma head
 1 individual
High tension connection 1 root (standard 3.5 m)
Product specification 1 this

1. Drawings of the size of the power supply main machineAtmosphere Plasma Surface Cleaning Machine For Coating

2. Size drawing of high-pressure ion generator of gun head

Atmosphere Plasma Surface Cleaning Machine For Coating
