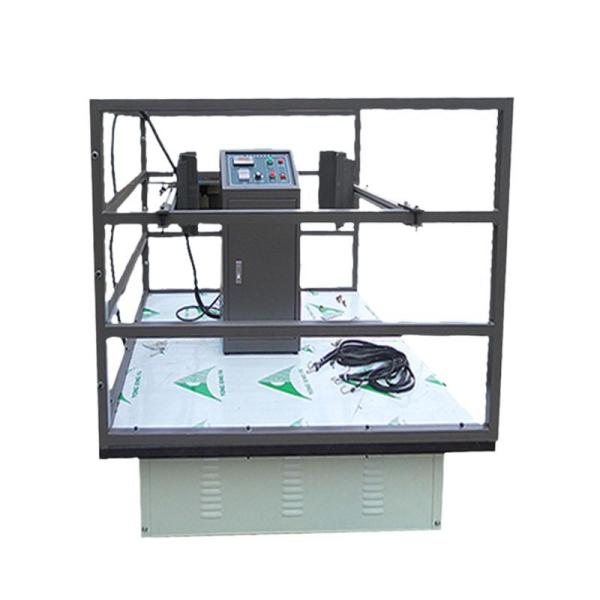

Analog Transportation Vibration Table Transport Simulation Vibration Testing Machine
Analog Transportation Vibration Table Transport Simulation Vibration Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q048
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Max. Test Load :
0–1000 kg (customizable)
Frequency Range :
100–300 rpm
Amplitude :
25.4 mm (fixed)
Digital Timer :
0.1 sec – 99 hrs (programmable)
Simulated Vehicle Speed :
25–40 km/h
Power :
12 kW
Description

LR-Q048 Analog Transportation Vibration Table Transport Simulation Vibration Testing Machine


1. Description:

The simulated vehicle transportation vibration test bench is used to assess the actual road conditions that various items subjected to specific loads can withstand during road vehicle transportation. It enables the laboratory to obtain the impact of actual working conditions on the items, thereby providing a basis for evaluating or confirming the items and their packaging.

2. Product Features:

Digital display of vibration frequency, high precision;Synchronous silent broadband transmission, low noise;The sample fixture adopts a guide rail type, which is convenient and safe to operate;Heavy-duty channel steel base with vibration damping rubber, easy to install, strong load capacity, and stable operation;Revised based on similar equipment from Europe and America, rotary vibration, in line with European and American transportation standards;

Suitable for packaging inspection and testing of products in the toy, electronic, furniture, gift, ceramic, and packaging transportation industries;Revised based on similar equipment from Europe and America, rotary vibration, in line with European and American transportation standards, with the same operating time.

3. Technical Parameters:

Parameter

Specification

Max. Test Load

0–1000 kg (customizable)

Frequency Range

100–300 rpm

Amplitude

25.4 mm (fixed)

Vibration Mode

Gyration (rotational)

Digital Timer

0.1 sec – 99 hrs (programmable)

Simulated Vehicle Speed

25–40 km/h

Table Size (L×W)

2000×1400 mm (customizable)

Guardrail Height

1000 mm (customizable)

Control Motor

AC Variable Frequency Drive Motor

Power Supply

3∅ 380V 50Hz

Power

12 kW

Machine Weight

≈600 kg

Dimensions (L×W×H)

≈2200×1680×1450 mm
